Review Summary
Black
1/4"-20 Female (Bottom)
3/8"-16 Female (Bottom)
4x 1/4"-20
4x M4
32 to 104°F / 0 to 40°C
-4 to 122°F / -20 to 50°C up to 85% Humidity
16.5+ stops
Aluminum
27.03 x 14.26mm (Diagonal: 30.56mm)
Up to 560 MB/s using RED branded or other qualified CFexpress media cards
Image Processing Pipeline (IPP2)
Supports 33x33x33 3D LUTs
Supports import of CDLs
Nikon Z
Yes: with Autofocus Support
27.03 x 14.26 mm (Super35) CMOS
19.9 Megapixel (6144 x 3240)
No
Stills & Video
Electronic Global Shutter
16.5 Stops
Automatic, Manual Focus
REDCODE RAW
6144 x 3240 up to 80 fps (560 Mb/s)
5120 x 2700 up to 96 fps (560 Mb/s)
4096 x 2160 up to 120 fps (560 Mb/s)
2048 x 1080 up to 240 fps (560 Mb/s)
ProRes 422/ProRes 422 HQ/ProRes 422LT
4096 x 2160 up to 120 fps560 MB/s)
ProRes 4444 4:4:4
4096 x 2160 up to 80 fps560 MB/s)
ProRes 4444XQ 4:4:4
4096 x 2160 up to 60.00 fps560 MB/s)
4:2:2 via SDI/BNC
4096 x 2160 up to 60.00 fps
2048 x 1080p up to 60.00 fps
Yes
Stereo
2-Channel, 24-Bit at 48 kHz
MJPEG
1920 x 1080 (5000.00 Mb/s)
Single Slot: CFexpress Type B (CFexpress 2.0)
No
1x BNC (12G-SDI) Output
1x 5-Pin LEMO Line Input on Camera Body
1x LEMO 6-Pin (11 to 17VDC) Input
1x 9-Pin (Genlock, GPI, Timecode)
1x USB-C (Camera Interface) Video/Data/Control Input/Output
1x RED Cable-Free Monitor Connection Output
Wi-Fi
Yes: Android & iOS
App Name: RED Control
Functionality: Remote Control
No
Primary Monitor: Fixed 2.9" Touchscreen LCD
Integrated V-Lock battery interface optimized for Micro V-Lock Batteries
Optional, not included
Lithium-ion
Non-universal
1
5.09 x 3.99 x 3.75" / 129.37 x 101.26 x 95.26 mm
2.62 lb / 1.19 kg (Body Only)

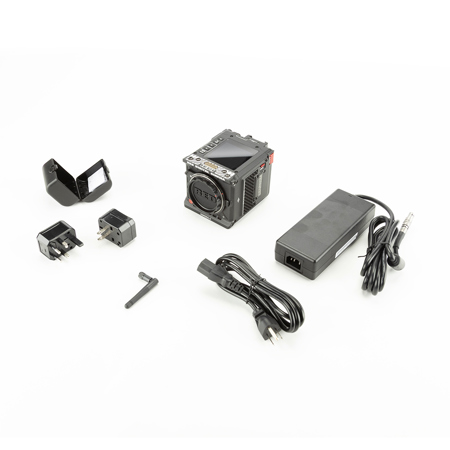

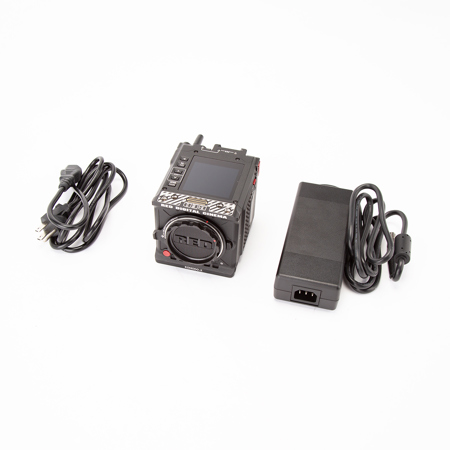

It's time to redefine the boundaries of digital filmmaking with the KOMODO-X 6K S35 DSMC3 Camera. This high-quality, professional-grade camera is the epitome of advanced technology and innovative design. The revolutionary next-gen KOMODO sensor offers an unparalleled 6K resolution, capturing stunning detail, vibrant colors, and impressive frame rates of up to 80 fps in 6K and 120p in 4K.
The KOMODO-X 6K S35 DSMC3 Camera is not just a tool, but a partner in your creative journey. Its ultra-compact form combines the power of DSMC3 with the portability of the original KOMODO, making it a reliable companion whether you're in a studio or on location. The camera's compatibility with upcoming PRO I/O Modules and direct mounting use of Micro V-mount batteries ensures efficiency and uninterrupted creativity.
The camera's versatility is further enhanced by its reinforced, locking Canon RF lens mount, which seamlessly collaborates with a wide spectrum of lenses. With the RED RF to PL adapter with electronic ND filter, even ARRI PL-mount lenses are easily adaptable, opening up a world of visual possibilities.
Control is at your fingertips with the integrated 2.9" LCD, offering convenient previews and control. For more precision, the KOMODO-X can be paired with the daylight-viewable, high-resolution DSMC3 7" Touch LCD for cable-free, decluttered monitoring.
The KOMODO-X 6K S35 DSMC3 Camera is engineered for the modern filmmaker, offering expanded interface options like 12G-SDI video output up to 4K60p, a USB-C port with Ethernet offload, and built-in Wi-Fi for 1080p IP live streaming for web and in-app monitoring.
The camera's single media slot for high-capacity, fast CFexpress Type B cards allows for up to 17 hours of recording on a 4TB card and data offloading up to 3x faster than CFast media. With a USB-C interface and integrated Wi-Fi function, the KOMODO-X is a powerhouse for streamlined IP workflows like Virtual Production and live broadcasting.
The KOMODO-X 6K S35 DSMC3 Camera also offers improved audio options with a locking, phantom-powered 5-pin connector, adaptable to a 3.5mm adapter and various microphones, ensuring that your visuals are matched with captivating audio.
In essence, the KOMODO-X 6K S35 DSMC3 Camera is more than just a camera; it's a canvas for your art, a catalyst for your creativity, and a companion for your cinematic journey. Embrace the KOMODO-X 6K, and let your creativity run wild.
