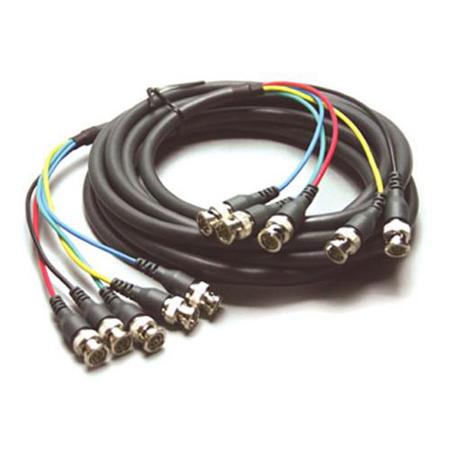

Kramer Electronics C-5BM/5BM Molded 5 BNC (Male to Male) RGBHV Mini Coax Cable, 50'

Picture does not represent the actual item
See what's in the box

See all Kramer Electronics items

Used Kramer Electronics C-5BM/5BM Molded 5 BNC (Male to Male) RGBHV Mini Coax Cable, 50'

SKU: US1464860
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Kramer Electronics C-5BM/5BM Specifications

Construction

Construction

Jump to...

  • Coax Center Conductor

    28 AWG 7/36 tinned copper

  • Dielectric

    Foam polyethylene

  • Shield

    90% braid 38 AWG tinned copper

  • Coax Jacket Colors

    Red, green, blue, yellow, black

  • Outer Jacket

    PVC

  • Outer Jacket Color

    Dark gray with white lettering

Diameters

Jump to...

  • Center Conductor

    0.015" (0.38mm)

  • Individual Coax

    0.108" (2.75mm)

  • Outside Diameter

    0.362" (9.2mm)

General

Jump to...

  • Dielectric

    0.063" (1.6mm)

Electrical

Jump to...

  • Impedance

    75Ohm

  • DC Resistance

    237 Ohm/km (72.2 Ohm/1000')

  • Capacitance

    60pF/m (18.3pF/ft)

  • Velocity of Propagation

    78%

  • Temperature

    -4 Degree to +167 Degree F (-20 Degree to +75 Degree C)

  • Attenuation (dB/100')

    -0.6dB @1MHz
    -1.4dB @5MHz
    -2.1dB @10MHz
    -4.7dB @50MHz
    -6.8dB @100MHz
    -9.2dB @180MHz
    -14.2dB @400MHz
    -20.1dB @750MHz
    -23.8dB @1000MHz

Regulatory

Jump to...

  • UL

    CL2

  • CSA

    C(UL) CL2

About Kramer Electronics C-5BM/5BM Molded 5 BNC (Male to Male) RGBHV Mini Coax Cable, 50'

Kramer's C-5BM/5BM is constructed of 5 mini coax cables in a single jacket with 75Ohm BNC connectors at each end. It offers outstanding quality, durability, and high performance for any RGBHV video signal application.

Kramer Electronics C-5BM/5BM Molded 5 BNC (Male to Male) RGBHV Mini Coax Cable, 50' Features

  • Quality Construction - Constructed from flexible, high quality 5 mini coax cable
  • Applications - Ideal for routing typical computer graphics video RGBHV signals to display devices such as projectors and monitors
  • Easy Installation - Breakout length is 18" (0.5m) on any cables 6' (1.8m) or longer. Shorter cables have approx. 7'' (0.18m) breakout length
  • Varied Selection of Lengths - Available in versions of 3 to 100' (0.9 to 30.5m)

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • 5BM/5BM Molded 5 BNC (Male to Male) RGBHV Mini Coax Cable (50')
