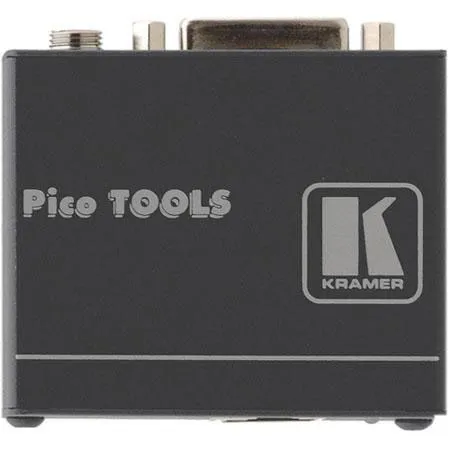

Used Kramer Electronics PT-571HDCP DVI Over Twisted Pair Transmitter

SKU: US1908864 MFR: 50-70865090
$118.00
New: $224.00
Used Savings: $106 (47%)
Earn VIP Reward Points

What`s in the box:

  • Kramer Electronics PT-571HDCP DVI over Twisted Pair Transmitter
  • Power Adapter (12V DC Input)
  • Mounting Bracket
See more

Key Features

  • Extend your DVI signals up to 330ft with this reliable twisted pair transmitter.
  • Enjoy crystal-clear images with this DVI transmitter, supporting up to 1.65Gb/s bandwidth.
  • Achieve long-range connectivity for your video setup using shielded CAT cables.
  • This affordable DVI over twisted pair transmitter is easy to install and use.
  • Ensure a stable connection with LED indicators showing power and signal status.
  • Compact design integrates seamlessly, making this wireless video transmitter a perfect fit.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$18.99

2 Year

$31.99

3 Year

$43.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Kramer Electronics PT-571HDCP Specifications

  • Input

    1x DVI, 1.2Vpp on a DVI Molex 24-pin female connector

  • Output

    1x CAT-5 on an RJ-45 connector

  • Bandwidth

    Supports up to 1.65 Gb/s

  • LED Indicators

    ON LED: Lights red when receiving power only, orange when input and power are attached and yellow when both an active input and output are attached

  • Power Source

    12V DC, 250mA (transmitter and receiver together)

  • Range

    Up to 295 ft (90 m) at SXGA, or up to 98 ft (30 m) at UXGA on shielded BC-DGKat524 cable
    Up to 295 ft (90 m) at SXGA, or up to 230 ft (70 m) at UXGA on shielded BC-DGKat623 cable
    Up to 330 ft (100 m) at SXGA, or up to 265 ft (80 m) at UXGA on shielded BC-DGKat723 cable

  • Dimensions (H x W x D)

    1 x 2.4 x 2.1" (2.4 x 6.2 x 5.2cm)

  • Weight

    0.3 lb (140 g)

About Kramer Electronics PT-571HDCP DVI Over Twisted Pair Transmitter

Explore the advanced capabilities of the Kramer Electronics PT-571HDCP DVI Over Twisted Pair Transmitter, a cutting-edge solution for extending the reach of your DVI signals. This innovative device is designed to convert a DVI signal, a widely recognized protocol for digital display, into a format suitable for transmission over shielded twisted pair (STP) cables such as CAT-5, CAT-6, or CAT-7a.

While DVI cables are typically limited to short runs, the PT-571HDCP Transmitter allows your DVI signals to travel hundreds of feet, far beyond the standard 15 to 30 feet limit. This makes it an ideal choice for large facilities or complex installations where extended reach is crucial.

The PT-571HDCP Transmitter is equipped with a 29-pin DVI-I input and a CAT-5 output with an RJ-45 connector, specifically designed for STP cable. Please note that only the digital DVI-D signal is available on the connector.

To revert the twisted-pair signal back to a DVI signal, pair this transmitter with the Kramer Electronics PT-572HDCP Receiver (sold separately). The device supports a maximum data rate of 1.65 Gb/s, offering ample bandwidth for high-definition television (HDTV) formats.

The transmission range of the PT-571HDCP Transmitter is dependent on several factors, including signal resolution, graphics card, display, and the type of cables used. Kramer Electronics has conducted extensive testing with their own cables to ensure optimal performance.

When used with a shielded BC-DGKat524 cable, the device can transmit up to 295 ft at SXGA resolution, or up to 98 ft at UXGA. With a shielded BC-DGKat623 cable, the range extends to 295 ft at SXGA or up to 230 ft at UXGA. And with a shielded BC-DGKat723 cable, the range can reach up to 330 ft at SXGA or up to 265 ft at UXGA.

Experience the power and versatility of the Kramer Electronics PT-571HDCP DVI Over Twisted Pair Transmitter, and take your digital display capabilities to new heights.

Kramer Electronics PT-571HDCP DVI Over Twisted Pair Transmitter Features

  • Power Connect System: A single 12V DC connection to the transmitter powers both the transmitter and the PT-572HDCP receiver (not included) when the devices are within 150 ft of each other
  • Pass Through: Passes EDID, HPD and HDCP signals from source to display
  • PicoTOOLS line: As part of Kramer's ultra-compact PicoTOOLS line, 4 similar-sized units can be rack mounted side-by-side in a 1U rack space with the optional RK-4PT rack adapter

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Extend your DVI signals up to 330ft with this reliable twisted pair transmitter.
  • Enjoy crystal-clear images with this DVI transmitter, supporting up to 1.65Gb/s bandwidth.
  • Achieve long-range connectivity for your video setup using shielded CAT cables.
  • This affordable DVI over twisted pair transmitter is easy to install and use.
  • Ensure a stable connection with LED indicators showing power and signal status.
  • Compact design integrates seamlessly, making this wireless video transmitter a perfect fit.
