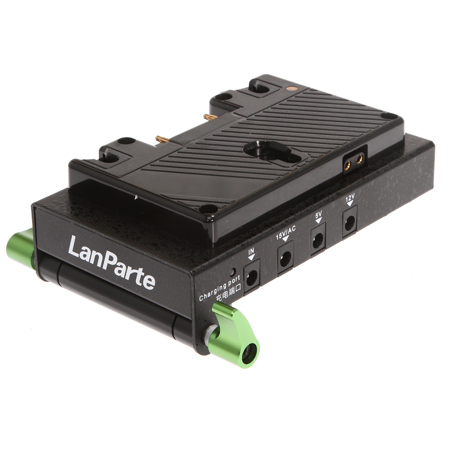

Lanparte Anton Bauer Gold-Mount Battery Pinch with HDMI Splitter - SKU#1253850

Picture does not represent the actual item
See what's in the box

See all Lanparte items

Used Lanparte Anton Bauer Gold-Mount Battery Pinch with HDMI Splitter

SKU: US1253850
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
IndiPRO V-Mount Battery Plate with 3x D-Tap Outputs
undefined undefined: Picture 1 regular
Litepanels V-Mount Battery Bracket for Astra IP LED Panel
undefined undefined: Picture 1 regular
CineMilled Standard Gold Mount Battery Plate with D-Tap Connection
undefined undefined: Picture 1 regular
Pag PAGlink PL150e 150Wh V-Mount Li-Ion Battery, 14.8V, 8Ah
undefined undefined: Picture 1 regular
Litepanels BP-U Battery Bracket for Astra IP LED Panel
undefined undefined: Picture 1 regular
IDX NH-202 Dual NP-Style Battery Box with 2 Pin P Tap DC output, with Digi-View and Syncron
undefined undefined: Picture 1 regular
Kondor Blue Pro Gold Mount Battery Plate with Swiveling Rod Block, Space Gray
undefined undefined: Picture 1 regular
Blackmagic Design VLock Battery Plate for URSA Camera
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Lanparte Battery Pinch Specifications

  • Connectors

    1 x DC barrel, 5 VDC signal switch power output
    1 x DC barrel, 7.4 VDC DSLR power output (requires AC adapter)
    2 x DC barrel, 12 VDC monitor power output
    1 x DC barrel, 15 VDC Gold-mount battery voltage output
    1 x D-Tap output
    1 x DC barrel, 16.8 VDC charging input
    1 x USB, 5 VDC power output
    1 x HDMI, splitter input
    2 x HDMI, splitter output

  • DC Output Voltage

    5, 7.4, 12, 15 VDC

  • Output Current

    2.5 A

  • Delay

    1 sec

  • Protection

    Over-voltage (0.5 VDC), under-voltage, over-current

  • Temperature

    Operating Temperature: -4 to 113 deg. F / -20 to 45 deg. C
    Temperature Rise: = 113 deg. F (45 deg. C), full load
    Relative Temperature: <90%

  • Response Time

    Relative: =0.01 sec, +/-1%

  • Output

    Precision: =5 Moms

  • Overload Capacity

    Maintains double maximum current for 1 minute

  • Dimensions

    5.6 x 4.0 x 2.9" / 14.22 x 10.16 x 7.37cm

  • Weight

    1.8lbs / 0.82kg

About Lanparte Anton Bauer Gold-Mount Battery Pinch with HDMI Splitter - SKU#1253850

The Lanparte Anton Bauer Gold-Mount Battery Pinch with HDMI Splitter features multiple DC outputs (5, 7.2, 12 and15V), enabling you to power multiple devices simultaneously; for example, the 12V output can be used for powering a monitor; the 5V for powering a signal switch machine such as an SDI to HDMI converter; and the 7.2V for powering a DSLR.

The Battery Pinch also features two 15mm rod connectors, allowing you to mount it to an existing rig. In addition the Battery Pinch also functions as an HDMI splitter and the DC barrel charger input allows you to charge the mounted battery. The battery pinch works best in conjunction with the Shoulder Pad; these two items attached to your rig serve as a counter-balance weight.

Lanparte Anton Bauer Gold-Mount Battery Pinch with HDMI Splitter - SKU#1253850 Features

  • 5V,7.4V,12V,15V ,D-tap output
  • Smart charging function
  • A built in HDMI splitter
  • 15mm rod connector
  • Include 4 cables and a charger

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • AC Adaptor
  • Power Cable
  • 4x DC Cables (DC-55-21)
  • DC Cable (DC-35-135)
  • Lanparte 1 Year Limited Warranty
  • Original Box
