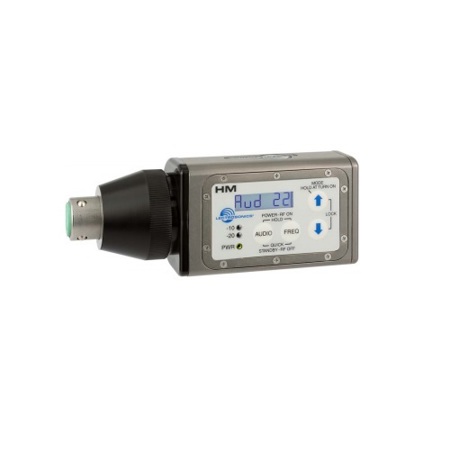

Lectrosonics Digital Hybrid Wireless UHF Plug-on Transmitter, Frequency Block 26 (665.600-691.100MHz) (Batteries Not Included)

Picture does not represent the actual item

See all Lectrosonics items

Used Lectrosonics Digital Hybrid Wireless UHF Plug-on Transmitter, Frequency Block 26 (665.600-691.100MHz) (Batteries Not Included)

SKU: US1693085
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Used Lectrosonics LR Miniature Digital Hybrid Wireless Compact Receiver, A1/470.100-537.575MHz, 75 MHz Tuning Range, 32Hz-20kHz Frequency Response
undefined undefined: Picture 1 regular
Lectrosonics 400 Series UCR411A Compact Digital Hybrid Wireless Receiver, Block 21/537.600-563.100MHz, 32Hz-20kHz Frequency Response
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Lectrosonics HM/E01 Specifications

  • Frequency Ranges

    Block 26: 665.600 - 691.100MHz

  • Frequency selection

    256 frequencies in 100kHz steps

  • RF Power output

    50mW (nominal)

  • Pilot tone

    25 to 32kHz; 3kHz deviation (Digital Hybrid compatibility mode)

  • Frequency stability

    +/- 0.002%

  • Deviation

    +/- 50kHz (max)

  • Spurious radiation

    60dB below carrier

  • Operating temperature range

    -30 to 60 deg. C / -22 to 140 deg. F

  • Equivalent input noise

    -118 dBV (A-weighted)

  • Input level

    Nominal 3mV to 450mV, before limiting. Greater than 10V maximum, with limiting

  • Input impedance

    1kOhm

  • Input limiter

    Dual envelope soft" limiter; greater than 30dB range

  • Gain control range

    Firmware Ver. 1.3: 45dB, Firmware Ver. 1.5: 55dB

  • Modulation indicators

    Dual bi-color LEDs indicate modulation of -20, -10, 0, +10 dB referenced to full modulation

  • Frequency Response

    35Hz to 20kHz (+/-1dB); low frequency roll-off is adjustable

  • THD

    0.2% (typ. 100Hz to 20kHz)

  • Input Dynamic Range

    125dB (with full Tx limiting)

  • Controls

    Four membrane switches and LCD on control panel for all setup and adjustment

  • Audio Input Jack

    Standard 3-pin XLR (female)

  • Phantom Power Selector

    5V at 18mA max., 15V at 15mA max. and 48V at 4mA max., plus OFF"

  • Antenna

    Housing and attached microphone form the antenna

  • Battery

    Two AA; lithium or NiMH type

  • Battery Life

    4.5 hours (alkaline); 12 hours (lithium) (battery life varies with battery brand, phantom power selection and mic current consumption)

  • SNR at receiver output: SmartNR Off

    No limiting: 103.5
    with limiting: 108.0

  • SNR at receiver output: SmartNR Normal

    No limiting: 107.0
    with limiting: 111.5

  • SNR at receiver output: SmartNR Full

    No limiting: 108.5
    with limiting: 113.0

  • Emission Designator

    190KF3E

  • Dimensions

    4.25 x 1.62 x 1.38" / 10.80 x 4.11 x 3.51cm

  • Weight

    6.7oz / 189.94g (without batteries)

About Lectrosonics Digital Hybrid Wireless UHF Plug-on Transmitter, Frequency Block 26 (665.600-691.100MHz) (Batteries Not Included)

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Lectrosonics Digital Hybrid Wireless UHF Plug-on Transmitter (Block 26)
  • PHTRAN3 HM Pouch
