7.0" / 177.80mm (IPS)
1280 x R.G.B. x 800 (Dot)
149.76 (H) x 93.6 (V) mm
0.117 (H) x 0.117 (V) mm
16:10
400 cd/m2
800:1
LED
3H
TR: 14 ms (typical), 17 ms (maximum)
TF: 11 ms (typical), 14 ms (maximum)
Left/Right/Up/Down: 89 deg. , 178 deg. wide viewing angle
HDMI, YPbPr, Composite, Audio (L/R), Tally
HDMI, YPbPr, Video, Audio, XLR, DC Power, Earphone
HDMI, YPbPr, Composite, Audio L&R, TALLY
HDMI, Full HD: 1080p (60/59.94/50/30/29.97/25/24/23.98/23.976/24SF), HD: 1018i (60/59.95/50), 1035i (60/59.94), 720p (60/59.94/50/30/29.97/25), SD: 576p (50), 576i (50), 480p (60/59.94), 486i (60/59.94)
Basic: Video, YPbPr, HDMI bottoms. SDI (no use), F1-F4 User-definable buttons, BRI/MENU knob, SAT knob, TINT knob, CONT knob, Advance: Brightness, Contrast, Saturation, Tint, Sharpness, Color Temp, Center Marker, Screen Markers, Aspect Ratio, H/V Delay, Check Field, Pixel-to-Pixel, Underscan, Zoom, Image Flip, Freeze Input, PIP, Camera, Volume, Language, Input format OSD, LOGO, Manufacturer Default, Back Light, IPS
Built-in 1 W
English/Chinese
7 to 24 VDC (XLR Connector)
=10 W
Operating: -4 to 140 deg. F / -20 to 60 deg. C, Storage: -22 to 158 deg. F / -30 to 70 deg. C
80% RH maximum
Monitor Without Sun Hood: .
Monitor With Sun Hood: 7.5 x 6 x 5.5" / 190.50 x 152.40 x 139.70mm
Case: 12.2 x 9.7 x 3.8" / 309.88 x 246.38 x 96.52mm
Monitor Without Sun Hood: 1.7lbs / 0.77kg
Monitor With Sun Hood: 2.1lbs / 0.95kg
Monitor with Suitcase: 4.8lbs / 2.18kg

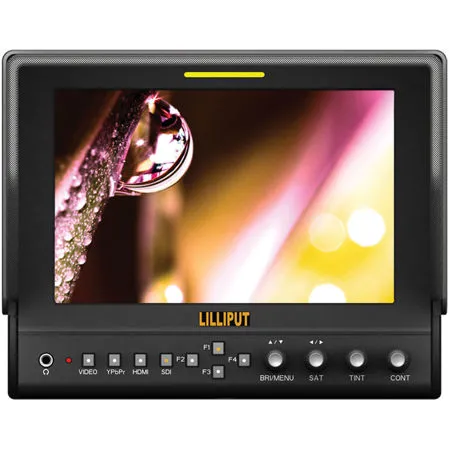

When it comes to capturing the perfect shot, the Lilliput 663 7" Camera-Top HDMI LED Monitor is an essential tool for any professional or hobbyist. This high-quality, durable monitor is designed to mount directly on top of your camera, providing a clear, detailed view of your live video footage.
Featuring a high-resolution 1280x800 7" IPS panel, this monitor delivers sharp, vibrant images with a wide screen aspect ratio of 16:9. This makes it an ideal companion for DSLR cameras, fitting neatly into your camera bag for easy portability.
The Lilliput 663 monitor is not just versatile, but also easy-to-use. It's equipped with a HDMI interface, YPbPr (via BNC), and Composite video, ensuring seamless connectivity with a variety of devices including cameras, computers, and gaming consoles.
One of the standout features of this monitor is its foldable sun hood, which doubles as a screen protector. This innovative design not only shields the LCD from scratches during transit but also reduces glare when shooting in bright conditions.
The monitor boasts an LED-backlit display, offering higher physical resolutions for greater detail and image accuracy. With a super-high contrast ratio of 800:1, it produces vivid, rich, and accurately colored images, enhancing your viewing experience.
The Lilliput 663 monitor is also customizable to suit your unique style. It comes with four programmable function buttons (F1, F2, F3, F4) that can be set for shortcut operations according to your specific needs.
Finally, enjoy the same stunning image quality from any angle with the monitor's wide viewing angles of 178 degrees both vertically and horizontally. This feature ensures you can capture and review your footage with ease, no matter your position.
In summary, the Lilliput 663 7" Camera-Top HDMI LED Monitor is a high-quality, durable, and versatile tool that enhances your video shooting and viewing experience.
