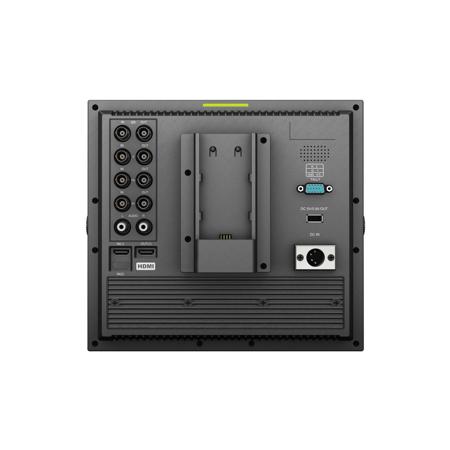

Used Lilliput 969A/S 9.7" 4:3 HD 3G-SDI & HDMI IPS LED Broadcast Monitor

SKU: US1504429

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Lilliput 969A/S Specifications

  • Panel

    9.7" LED backlit

  • Physical Resolution

    1024x768, support up to 1920x1080

  • Aspect Ratio

    4:3

  • Brightness

    400cd/sq. m

  • Contrast

    600:1

  • Viewing Angle

    178 deg. /178 deg. (H/V)

  • 3G-SDI Input/Output

    1x

  • HDMI Input/Output

    1x

  • YPbPr Input/Output

    3 (BNC)

  • TALLY Input

    1x

  • Audio Input

    2 (L/R)

  • USB Output

    1 (5V for charging)

  • Speaker

    1x (build-in)

  • Ear Phone Slot

    1x

  • Current

    1500mA

  • Input Voltage

    DC 7-24V(XLR)

  • Battery Plate

    V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6

  • Power Consumption

    <=18W

  • Temperature

    Operating: -4 to 140 deg. F (-20 to 60 deg. C)
    Storage: -22 to 158 deg. F (-30 to 70 deg. C)

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    -

  • Battery Quantity

    1

  • Dimensions (L x W x D)

    9.69 x 8.82 x 1.22" (246 x 224 x 31mm)
    With cover: 9.69 x 8.82 x 6.59" (246 x 224 x 167.5mm)

  • Weight

    2.35 lbs (1.06kg)
    With cover: 3.06 lbs (1.38kg)

About Lilliput 969A/S 9.7" 4:3 HD 3G-SDI & HDMI IPS LED Broadcast Monitor SKU#1504429

Make your broadcasting and video editing work more efficient with the Lilliput 969A/S, a 9.7-inch 4:3 IPS LED HD broadcast monitor. This high-quality and durable monitor is designed with a range of innovative features to enhance your viewing and editing experience.

The 969A/S monitor boasts a high resolution of 1024 x 768 pixels, providing you with a clear, detailed image. This high resolution is crucial for broadcast monitors, allowing you to see the finest details in your shots. The 4:3 aspect ratio is ideal for both 16:9 and 4:3 content, offering versatility for various types of media.

Equipped with 3G-SDI, HDMI, YPbPr, and AV input, this reliable monitor offers multiple input options for greater flexibility. Whether you're working in a broadcasting studio, post-production facility, or live event, you can easily connect a variety of devices to this user-friendly monitor.

The Lilliput 969A/S also features a 600:1 contrast ratio LCD with IPS technology, ensuring accurate color representation. With a wide 178-degree viewing angle, the image quality remains consistent, even when viewed from different angles.

This innovative monitor also includes a built-in sun hood that doubles as a screen protector, ideal for environments where the monitor may be moved frequently. The 1:1 pixel mapping feature allows you to maintain the original resolution of your camera's output, preventing any unexpected focus issues during post-production.

The 969A/S also offers advanced camera auxiliary functions, including Peaking, False Color, Histogram, and Exposure, making it easier to capture and record accurate images. The HDMI video output feature allows you to duplicate the video content onto a second monitor without the need for an HDMI splitter.

With its comprehensive 3G-SDI connections, including composite and component through BNC connectors and HDMI inputs, the Lilliput 969A/S covers all the bases for common broadcast applications. This innovative, high-quality broadcast monitor is designed to meet the needs of professionals in the broadcasting and video editing industry.

Lilliput 969A/S 9.7" 4:3 HD 3G-SDI & HDMI IPS LED Broadcast Monitor SKU#1504429 Features

  • IPS panel 178 Degree wide viewing angles
  • 1024 x768 High resolution
  • 400cd/sq. m High brightness
  • 600:1 High contrast
  • 3G-SDI & HDMI input
  • DC 7-24V Wide voltage
  • TALLY interface & 5V charging

What's in the box:

  • Lilliput 969A/S 9.7" 4:3 HD 3G-SDI & HDMI IPS LED Broadcast Monitor
  • Flexible Folding Sun Shade
  • Swiveling Stand
  • Battery Plate Bracket
  • Sony F-970 Battery Plate
  • Canon LP-E6 Battery Plate
  • HDMI Cable
  • 12VDC Adapter
  • TALLY Connector
  • Original Box
