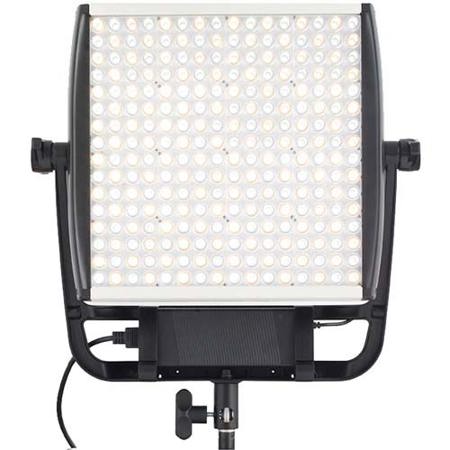

Used Litepanels Astra EP 1x1 Bi-Color LED Panel

SKU: US1959984 MFR: 935-2003
$171.00
Earn VIP Reward Points

What`s in the box:

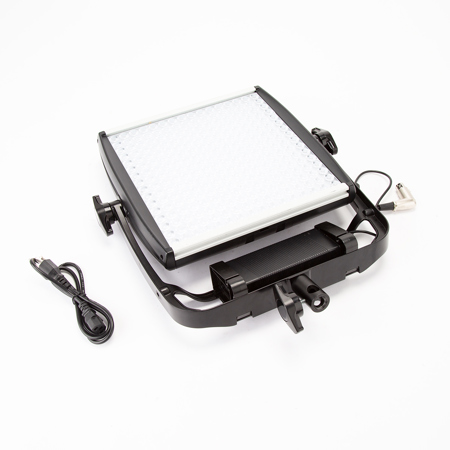

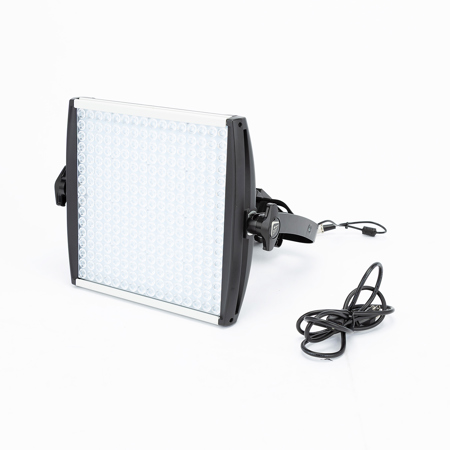

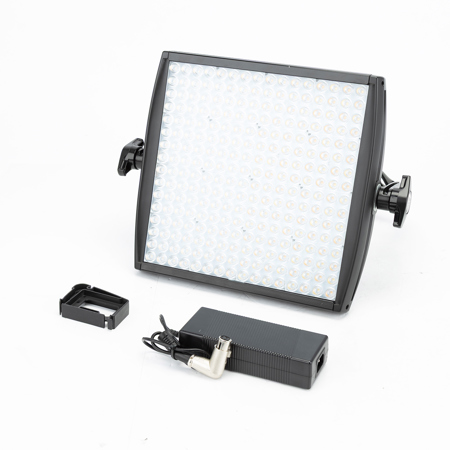

  • Litepanels Astra EP 1x1 Bi-Color LED Panel
  • Manual Yoke with TVMP Adapter
  • US Power Cord
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$26.99

2 Year

$43.99

3 Year

$61.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Litepanels Astra EP 1x1 Bi-Color LED Panel Specifications

  • Material

    Aluminum

  • Light Source

    LED

  • Color Range

    3200-5600K (Approx.)

  • Beam Angle

    Beam angle: 44deg.

  • Photometrics

    Daylight:
    291fc / 3132lux at 5' / 1.52m
    73fc / 783lux at 10' / 3.05m
    32fc / 348lux at 15' / 4.57m

    Tungsten:
    223fc / 2395lux at 5' / 1.52m
    56fc / 599lux at 10' / 3.05m
    25fc / 266lux at 15' / 4.57m

  • Dimming

    0-100%

  • Operating Voltage

    100-240 VAC 50/60 Hz with included AC adapter
    13-24 VDC with optional battery

  • Power Draw

    55 W

  • DMX

    Yes, with optional adapter

  • Power Connector

    3-Pin XLR

  • Mount

    5/8"

  • Dimensions

    17.7 x 16.3 x 5.3" / 449.58 x 414.02 x 134.62mm

  • Weight

    7lbs / 3.18kg

About Litepanels Astra EP 1x1 Bi-Color LED Panel

Litepanels continues to expand and enhance their formidable LED line with the introduction of the Astra EP 1x1 Bi-Color LED Panel that offers 2x the brightness as the original Bi-Color 1x1. As in previous versions of the 1x1 form factor, the Astra 1x1 variable tungsten to daylight color temperature with negligible color shift, 0-100% dimming and a universal (100-240 VAC) adapter. You can also run on 13-24 VDC batteries with separate purchase of a V-Mount or Gold Mount battery plate.

The ASTRA 1x1 Bi-Color panel builds on the legacy of the original 1x1 fixture, which revolutionized the lighting industry. This innovative daylight to tungsten tunable color model was years in the making, with every design element of this next generation panel being meticulously crafted. Following the Litepanels tradition of a one square foot form factor, the ASTRA series is designed with select premium quality, high CRI, surface mount LEDs and paired with custom designed TIR optics. These tightly binned LEDs and fine-tuned optics provide the ASTRA 1x1 with superior color reproduction and a light output that is up to four times brighter than traditional LED panels. This higher intensity results in a longer throw and illuminates a wider area, allowing the panel to compete with strong exterior light sources or illuminate a large area effectively with just a single fixture.

Output is up to 4x brighter than traditional LED panels
• High performance LEDs with custom paired optics
• Higher intensity = Longer throw = Wider effective beam spread

Superior color reproduction
• High color rendition (CRI)
• Adjustable (daylight to tungsten), accurate color temperatures

Efficient thermal management with user selectable dual cooling mode
• Completely silent passive cooling mode
• Ultra-quiet active cooling mode with double light output

Ultra-smooth dimming from 100% to 0
• No noticeable color shift throughout the entire range
• Flicker-free at any frame rate or shutter angle

Flexible, modular concept
• Optional communications module allows the brightness, color temperature and cooling mode to be controlled via DMX512 protocol (Additional module options under development)
• Optional yoke mounted Gold Mount or V-Mount battery plates
• Field replaceable fan module and external power supply

Modern fixture design
• Easily identifiable and ergonomic manual controls for dimming, color and power status
• Aluminum I-beam core construction to provide maximum durability and superior thermal management
• Aluminum accessory mounting points and lens/filter rails
• End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
• Durable, industry standard 3-pin XLR locking power connector

Custom curved yoke design
• Wide, unobstructed tilt range
• Yoke mounted power supply and optional battery plates with dual integrated cable guides
• Removable TVMP connector for flexible mounting options
• Two alternate 1/4-20 mounting points

Warranty Information

This used item has a FREE 180-day warranty. See details.
