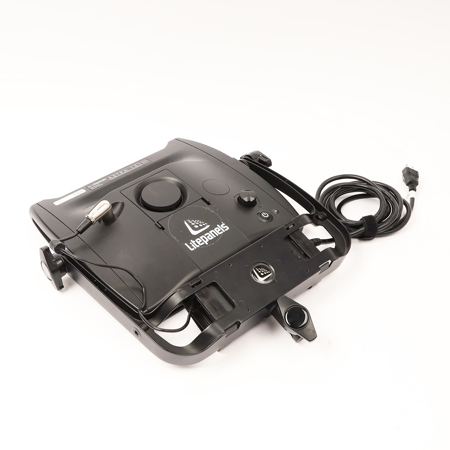

Used Litepanels Astra EP 1x1 Daylight LED Panel, 5600K Color Range, 44deg. Beam Angle, 0-100% Dimming, TIR Optics, High CRI, Dual Cooling Modes, 3435 Lux at 5'

The family of innovative ASTRA 1x1 fixtures are built on the legacy of the original 1x1 panel, which revolutionized the lighting industry. Every design element of these next generation panels has been meticulously crafted to deliver a new standard in the form and function needed for independent and field production as well as Studio installations.

Following the Litepanels tradition of a one square foot form factor, the ASTRA 1x1 fixtures are designed with upgraded technology, featuring select premium quality, high CRI surface mount LEDs, paired with custom designed TIR optics. These tightly binned LEDs and fine-tuned optics provide the ASTRA 1x1s with superior color reproduction and a light output that is brighter than the original 1x1 panel with 5mm LEDs, providing greater flexibility than ever before. The ASTRA 1x1 range of professional LED panels include Daylight, Tungsten and tunable Bi-Color models.

Flexible, modular concept
• Optional communications module allows the brightness, color temperature and cooling mode to be controlled via DMX512 protocol
• Optional yoke mounted Gold Mount or V-Mount battery plates
• External power supply
• Field replaceable fan module (Not available in ASTRA 1x1 E & EP Series)

Modern fixture design
• Easily identifiable and ergonomic manual controls for dimming, color and power status
• Aluminum I-beam core construction to provide maximum durability and superior thermal management
• Aluminum accessory mounting points and lens/filter rails
• End cap exhaust vents angle downward to direct air flow away from the fixture and help prevent foreign material from entering
• Durable, industry standard 3-pin XLR locking power connector

Custom curved yoke design
• Wide, unobstructed tilt range
• Yoke mounted power supply and optional battery plates with dual integrated cable guides
• Removable TVMP connector for flexible mounting options
• Two alternate 1/4-20 mounting points

Advantages
• Output is more powerful than the original 1x1 LED panels - ASTRA 1x1 EP Series: 2x brighter
• High performance LEDs with custom paired optics
• Higher intensity = Longer throw = Wider effective illuminated area
• Superior color reproduction
• High color rendition (CRI) TLCI rated
• Accurate color temperatures
• Ultra-smooth dimming from 100% to 0
• No noticeable color shift throughout the entire range
• Flicker-free at any frame rate or shutter angle
• Efficient thermal management
• Completely silent passive cooling mode
• Ultra-quiet active cooling mode with double light output (Not available in ASTRA 1x1 E & EP Series)

Additional Features
• Offers up to 291 Footcandles at 5 feet/1.5m
• Passive cooling
• Max power draw 55W
• Comparable output 1000W T Softlight
