Mackie 802VLZ4 8-Channel Ultra-Compact Mixer - SKU#1883209

Picture does not represent the actual item
See what's in the box

See all Mackie items

Used Mackie 802VLZ4 8-Channel Ultra-Compact Mixer, 3-Band EQ (80 Hz, 2.5 and 12 kHz)

SKU: US1883209
Be the first to review this item

This item is no longer available.

Buy it New

Mackie 8-Channel Ultra-Compact Mixer, 3-Band EQ (80 Hz, 2.5 and 12 kHz)
Mackie 8-Channel Ultra-Compact Mixer, 3-Band EQ (80 Hz, 2.5 and 12 kHz)
$219.99
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Mackie 802VLZ4 Specifications

  • Noise

    Main Mix Knob Down, Channel Level Knobs Down:
    XLR: -95 dBu
    TRS: -101 dBu

    Main Mix Knob at Unity, Channel Level Knobs Down:
    XLR: -90 dBu
    TRS: -96 dBu

    Main Mix Knob at Unity, Channel Level Knobs at Unity:
    XLR: -84 dBu
    TRS: -90 dBu

  • Total Harmonic Distortion (THD)

    Microphone Pre at Insert: <0.001%

  • Crosstalk / Attenuation

    Main Mix Knob Down: -75 dBu Channel Alt / Mute Switch Engaged: -100 dBu Channel Level Knob Down: -100 dBu

  • Frequency Response

    Microphone Input to Main Output (Gain at Unity):
    +0, -1 dB, 20 Hz to 50 kHz
    +0, -3 dB, <10 Hz to >100 kHz

  • Equivalent Input Noise

    150 ohm Termination: -128.5 dBu, 20 Hz to 20 kHz
    Microphone input to insert send out, maximum gain

  • Common Mode Rejection Ratio

    Better than -70 dB at 1 kHz

  • Maximum Level

    Microphone In: +21 dBu
    Tape In: +22 dBu
    All Other Inputs: +22 dBu
    Main Mix XLR Out: +28 dBu
    All Other Outputs: +22 dBu

  • Impedance

    Microphone In: 2.55 kohm
    Channel Insert Return: 5 kohm
    All Other Inputs: 17 kohm or greater
    Tape Out: 1 kohm
    Phones Out: 60 ohm
    All Other Outputs: 120 ohm

  • Equalizer

    High Shelving: +/-15 dB at 12 kHz
    Mid Peaking +/-15 dB at 2.5 kHz
    Low Shelving: +/-15 dB at 80 Hz

  • Power Consumption

    13 W, 100 to 120 VAC, 50 to 60 Hz

  • Power Supply

    External (AC Connector): 2-Pin IEC 250 VAC

  • Operating Temperature

    32 to 104deg.F (0 to 40deg.C)

  • Dimensions (H x W x D)

    10.7 x 8.9 x 1.8" (272.0 x 226.0 x 45.7mm)

  • Weight

    With Power Supply: 5.5lbs (2.5kg)
    Without Power Supply: 4.5lbs (2.0kg)

About Mackie 802VLZ4 8-Channel Ultra-Compact Mixer - SKU#1883209

Mackie 802VLZ4 8-Channel Ultra-Compact Mixer - SKU#1883209 Features

  • 8-Channel mixer featuring high-headroom, low-noise design
  • 3 Boutique-Quality Onyx Microphone Preamps: Wide 60 dB gain range, 128.5 dB dynamic range, +22 dBu line input handling, Extended frequency response, Distortion under 0.0007% (20 Hz to 50 kHz)
  • Improved RF rejection, suitable for broadcast applications
  • Phantom power for condenser microphones
  • Eight high-headroom line inputs
  • Selectable instrument inputs on first 2 channels; no DI box needed
  • 3-Band EQ (80 Hz, 2.5 and 12 kHz)
  • 18 dB/octave 100 Hz low-cut filter on microphone input channels
  • AUX send, level, pan and PFL solo on each channel
  • Stereo return for connecting FX processor or other stereo source
  • ALT 3/4 stereo bus for added routing flexibility
  • Control room / phones source matrix
  • High-resolution 12-segment stereo meters
  • Sealed rotary controls resist dust and grime
  • Built-like-a-tank rugged steel chassis with powder-coat finish
  • High-visibility, high-contrast controls deliver convenient at-a-glance visual feedback
  • Universal power supply for worldwide use
  • Applications: Live sound mixing, houses of worship, clubs, gymnasiums, banquet halls, conference rooms, boardrooms, studio and field recording, multimedia applications, broadcast and many more

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

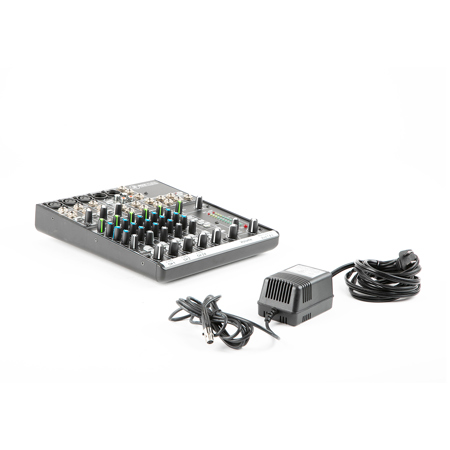

What's in the box:

  • Mackie 802VLZ4 8-Channel Ultra-Compact Mixer
  • Power Supply
