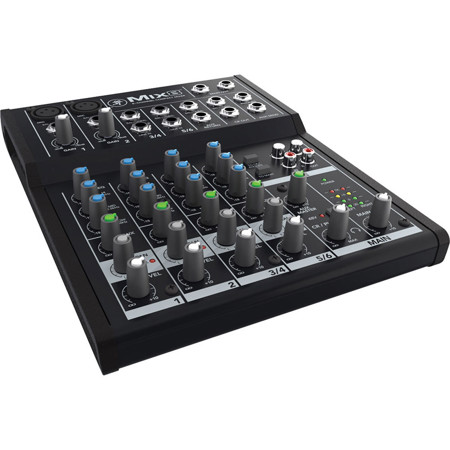

Mackie Mix8 - 8-Channel Compact Mixer

Picture does not represent the actual item

See all Mackie items

Used Mackie Mix8 - 8-Channel Compact Mixer

SKU: US1889668
Be the first to review this item

This item is no longer available.

Buy it New

Mackie Mix8 8-Channel Mixer
Mackie Mix8 8-Channel Mixer
$99.99
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Mackie Mix8 Specifications

  • Noise Characteristics

    -100dBu (All outputs, master levels and channel levels off ) (20Hz - 20kHz bandwidth, 150 source impedance, EIN)
    -90dBu (All outputs, master levels unity, all channel levels off) (20Hz - 20kHz bandwidth, 150 source impedance, EIN)
    -85dBu (All outputs, master levels unity, 1 channel level unity) (20Hz - 20kHz bandwidth, 150 source impedance, EIN)

  • Distortion (THD+N)

    Mic Input to Main Output: <0.25% at +4dBu output (20Hz-30kHz bandwidth)

  • Attenuation/Crosstalk

    Inputs to Outputs at 1kHz: -85dB (20Hz-20kHz bandwidth)
    Main Mix Off at 1kHz: -75dB (20Hz-20kHz bandwidth)

  • Frequency Response

    Mic input to any output (gain at unity): +0, -1dB, 20Hz to 30kHz

  • Equivalent Input Noise (EIN)

    150Ohms termination (Mic in to Insert Send out, max gain.): -125dBu

  • Common Mode Rejection Ratio (CMRR)

    1kHz (Mic in to Insert Send out, max gain.): better than -70dB

  • Maximum Levels: Mic inputs (XLR)

    +19dBu

  • Maximum Levels: Aux Return In

    +16dBu

  • Maximum Levels: All other inputs

    +21dBu

  • Maximum Levels: All outputs

    +21dBu

  • Impedances: Mic in

    3.8kOhms

  • Impedances: All other inputs

    10kOhms or greater

  • Impedances: Tape out

    1kOhms

  • Impedances: Phones out

    22Ohms

  • Impedances: All other outputs

    120Ohms unbalanced
    240Ohms balanced

  • EQ: High Shelving

    +/-15dB at 12kHz

  • EQ: Mid Peaking

    +/-15dB at 2.5kHz

  • EQ: Low Shelving

    +/-15dB at 80Hz

  • EQ: Low Cut Filter

    18dB/octave, -3dB at 80Hz

  • Power Connection

    2-pin DC connector

  • Input

    120V AC, 60Hz

  • Output

    18V AC, 600mA

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Dimensions (H x W x D)

    2.1 x 7.8 x 9.6" / 53.34 x 198.12 x 243.84mm

  • Weight

    2.5lbs / 1.13kg

About Mackie Mix8 - 8-Channel Compact Mixer

Mackie Mix8 - 8-Channel Compact Mixer Features

  • High-performance 8-Channel Compact Mixer with 20Hz to 30kHz frequency response
  • Features high-headroom, low-noise design preamps for superior audio quality
  • Offers multiple connectivity options including 3.8kOhms Mic-In, 1kOhms Tape Out, and 22Ohms Phones Out
  • Equipped with a multi-band EQ for precise tone shaping and phantom power for studio condenser mics
  • Durable construction with a rugged metal chassis and high-quality components
  • Compact, portable design ideal for live sound mixing, studio recording, & multimedia applications

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Mackie Mix8 8-Channel Compact Mixer
  • Original Box
  • Item Note: Missing Power Cord
