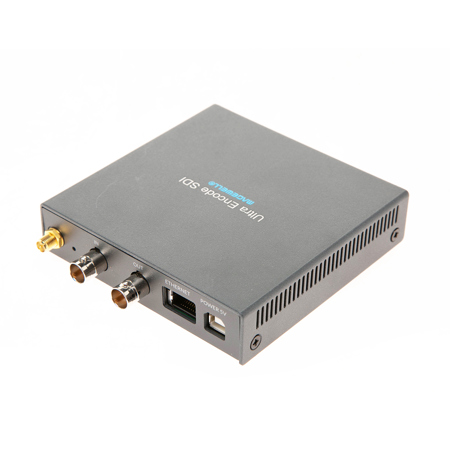

Magewell Ultra Encode SDI - SKU#1775661

Picture does not represent the actual item
See what's in the box

See all Magewell items

Used Ultra Encode SDI

SKU: US1775661
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Magewell Ultra Encode AIO H.264 Dual Streaming Encoder and Recorder
undefined undefined: Picture 1 regular
Used Teradek Cube-155 HD-SDI Encoder with Built-in Dual Band Wi-Fi & MiMO Access Point
undefined undefined: Picture 1 regular
BirdDog 4K 12G-SDI NDI Encoder/Decoder
undefined undefined: Picture 1 regular
Used Teradek Cube 155/355 1-Channel HD-SDI Encoder/Decoder Pair
undefined undefined: Picture 1 regular
Kiloview RE-3 Dual-Channel 4K UHD H.265/H.264 HDMI/3G-SDI/NDI|HX Rackmount Encoding Card for Cradle Series Frame
undefined undefined: Picture 1 regular
Vitec MGW ACE Compact HEVC (H.265) Hardware Encoder
undefined undefined: Picture 1 regular
Blackmagic Design URSA Live Encoder
undefined undefined: Picture 1 regular
Vitec MGW Diamond TOUGH Military Grade HEVC & H.264 Quad-Channel HD/SD Encoder
undefined undefined: Picture 1 regular
Used Teradek Cube 755 Real-Time H.265 (HEVC) and H.264 (AVC) Camera Top Encoder, GigE/Wi-Fi & USB, HDMI/SDI Video Inputs
undefined undefined: Picture 1 regular
Vitec MGW Diamond Quad-Channel Full HD 1080p HEVC & H.264 Encoder, Real-Time AES Decryption
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Magewell Ultra Encode SDI Specifications

  • Input Features

    Max input & loop-through signal: 2048x1080 60fps
    Supported inputs include:
    2048x1080p/2048x1080i/1920x1080p/1920x1080i 23.98/24/25/29.97/30/47.95/48/50/59.94/60
    1280x720p 25/29.97/30/50/59.94/60
    720x576 25p/50i (PAL SD)
    720x480 29.97p/59.94i (NTSC SD)

  • Input Features (Contd.)

    8/10/12-bit color
    Input & loopthrough 16-Channel SDI embedded audio
    Input Audio from 3.5 mm LINE IN
    SD/HD/3G BNC input & loopthrough
    SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL(ST 425)/3Gb-DS(ST 425) standards

  • Encoding Features

    Dual stream encoding: main stream and sub stream
    Max bitrates:
    Main Stream - 16Mbps
    Sub Stream - 2Mbps
    Supported resolutions:
    HD: 1920x1080, 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768
    SD: 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
    Supported frame rates: 60/59.94/50/30/29.97/25/24/15/10/5fps
    H.264/H.265 (HEVC) SEI message supports system timecode

  • Encoding Features (Contd.)

    or RP-188 timecode extracted from input
    H.264/H.265 (HEVC) SEI message supports native CEA-608/608 over 708 captions
    Encoding 2-channel AAC audio at 48kHz, 16-bit
    Supported audio bitrates: 256/192/128/96/64/48/32/16 kbps
    Extracting audio from SDI signal and output through LINE OUT
    Encoding videos after de-interlacing
    Encoding interlaced input signal as main and sub streams in the format of interlaced H.265 (HEVC)

  • Configuration Management

    Register with Magewell Cloud
    Remote control via WebUI and Magewell Cloud
    Provide comprehensive information regarding the system information of device and working status in real-time
    Video thumbnail preview
    Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time

  • Configuration Management (Contd.)

    Update firmware
    Export configuration profiles of the device
    Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
    Provide HTTP APIs

  • Network Interfaces

    Wired Ethernet network: 10/100/1000Mbps
    Wi-Fi 802.11 a/b/g/n/ac
    3G/4G USB mobile broadband Modem (not included)

  • Input/Output Interfaces

    SD/HD/3G BNC input and loop-through interfaces
    3.5mm LINE IN
    3.5mm LINE OUT

  • LED Indicators

    LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection

  • Power Supply and Consumption

    DC 5V/2A
    Max power consumption: -7.6 W

  • Screw Mounting Hole

    2x M3 threaded hole
    A standard 1/4"-20 socket provided by T-bracket

  • Working Environment

    Operating temperature: 32 to 104 deg F (0 to 40 deg C)
    Storage temperature: -4 to 158 deg F (-20 to 70 deg C)
    Relative Humidity: 5% to 90% non condensing

  • Dimensions (L x W x H)

    Form Factor: 4.19 x 4.18 x 0.98" (106.6 x 106.2 x 25mm)

About Magewell Ultra Encode SDI - SKU#1775661

Ultra Encode SDI
A Flexible & Affordable Universal Encoder

• Live H.264/H.265 streaming
• Supports streaming protocols including SRT, NDI|HX, HLS & more
• Suitable for various network environment

Input Features
• Support for up to 2048x1080 60fps input and loopthrough signals
• Input & loopthrough 16-Channel SDI embedded audio
• Input audio from 3.5 mm LINE IN

Encoding Features
• Dual stream encoding: main stream (Max bitrate: 16Mbps) and sub stream (Max bitrate: 2Mbps)
• Support for H.264/HEVC video encoding
• Encoding 2-channel AAC at 48kHz, 16-bit

Magewell Ultra Encode SDI - SKU#1775661 Features

  • RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
  • Allow streaming to multiple destinations simultaneously (select protocols)
  • Internet connectivity via wired Ethernet and wireless network
  • Control via intuitive Web GUI or HTTP APIs

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Magewell Ultra Encode SDI
  • AC Adapter
  • Wi-Fi Antenna
  • USB 2.0 Type B Cable
  • (3G/4G USB Mobile Broadband Modem Not Included)
  • Item Note: MissingT-Bracket
