Used Manfrotto 504X Fluid Video Head with 635 Carbon Fiber Fast Single Leg Tripod

SKU: US1613854

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

2020-12-29T06:42:54

Rated 3 out of 5

Check C of G ratings, not just over all "capacity".

Smooth, but ratings are suspect/optimistic. Overloaded (C of G) by UMP. No more than regular old 504.

Nikolai F.

2020-08-06T09:08:23

Rated 5 out of 5

A worthy upgrade from the 502

Little pricey but it works great. An awesome upgrade from the 502. Well built. Quick shipping!

BLAKE C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Manfrotto 504X Specifications

504X Fluid Video Head

504X Fluid Video Head

Jump to...
  • FDS (fluidity PAN&TILT)

    Variable

  • CBS

    4 steps

  • Flat base

    Flat base with 3/8" female attachment

  • Head material

    Aluminum

  • Max counter balance weight

    14.3 lbs (6.5kg)

  • Safety payload

    26.5 lbs (12kg)

  • Dimensions (Height)

    Head: 5.86" (14.9cm)

  • Weight

    Head: 4.4 lbs (2kg)

635 Fast Single Leg Tripod

Jump to...
  • Color

    Black

  • Material

    Carbon Fiber

  • Ball Flat

    75 Ball

  • Safety Payload Weight

    44.09 lbs (20kg)

  • Closed Length

    28.94" (73.5cm)

  • Center Column

    No center column

  • Easy Link

    Yes

  • Leg Type

    Single

  • Leg Angles

    23 Degree , 50 Degree , 70 Degree

  • Leg Lock Type

    Twist Lock

  • Leg Sections

    3

  • Legs Tube Diameter

    1.15, 0.98, 0.8" (29.2, 24.8, 20.4mm)

  • Working Temperature

    Maximum: 140 Degree F (60 Degree C)
    Minimum: -22 Degree F (-30 Degree C)

  • Spreader

    low level - variable arm length

  • Dimensions (Height)

    Maximum: 61.02" (155cm)
    Minimum: 11.22" (28.5cm)

  • Weight

    7.72 lbs (3.5kg)

Related Articles & Videos

Essential Accessories for Better Video on Your DSLR or Mirrorless Camera

Essential Accessories for Better Video on Your DSLR or Mirrorless Camera

The videos that are coming out of today’s DSLRs or mirrorless cameras are phenomenal but these video camera accessories will elevate it.
Read more

About Manfrotto 504X Fluid Video Head with 635 Carbon Fiber Fast Single Leg Tripod

Become a master of videography with the Manfrotto 504X Fluid Video Head coupled with the 635 3-Section Carbon Fiber Tripod. This professional-grade equipment is designed to support the latest cameras and camcorders, offering unrivaled stability and smoothness for every shot.

The 504X Fluid Video Head is the evolved version of the successful 504HD, now more compact and lighter, with a flat base for increased versatility. This high-quality video head is powered by new fluid technology, ensuring incredibly smooth movements on both PAN and TILT. It features a 4-step counterbalance system that can support up to 6.5 kg/14.3 lb at 55 mm/2.2 in C.O.G, ensuring quick setup and optimal performance. With a maximum payload of up to 12 kg / 26.5 lbs, this video head is designed to handle heavy equipment with ease.

The 504X Fluid Video Head also features Manfrotto's anti-rotation technology and Arri pin, with pan bar attachments on both sides for maximum flexibility. It also includes an easy link connector and independent brakes on TILT and PAN axes for enhanced safety and stability. The back bubble level allows for precise leveling even in low light conditions.

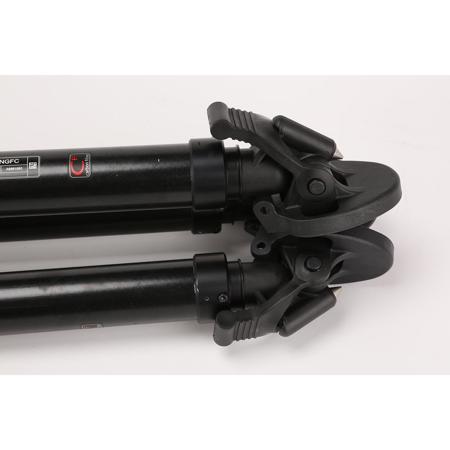

The 635 3-Section Carbon Fiber Tripod is a testament to Manfrotto's commitment to making video shooting easier and more efficient. It features single tubing and Twist-Lock technology for secure locking with a single, easy gesture. The tripod is equipped with a 75mm half ball and is compatible with a 60-mm half ball adapter. It also includes Easy Link friction arm attachments compatible with Manfrotto anti rotation and Arri anti-twist pins, allowing users to attach an external monitor or other accessories without the risk of the arm rotating while in use.

The 635 Tripod also boasts synchronized closure mechanisms between the upper and lower locks, enabling videographers to control the entire leg with a single lock. It offers a 3-angle selection mechanism for easy setup and is equipped with spiked feet with rubber overshoes for a firm grip and adaptability to diverse shooting locations.

The Manfrotto 504X Fluid Video Head with 635 3-Section Carbon Fiber Tripod is a perfect blend of design, performance, and durability, providing the optimum balance of strength and size for all your filming and photography needs.

Manfrotto 504X Fluid Video Head with 635 Carbon Fiber Fast Single Leg Tripod Features

  • 504X Fluid Video Head Features
  • New catching design with flat base
  • 4 steps CBS and fluidity on both PAN & TILT powered by new fluid technology
  • New easy link connectors
  • Sliding quick release plate
  • New fluid technology
  • Bubble level
  • 635 Fast Single Leg CF Tripod Features
  • Twist-Lock: secure locking with a single gesture
  • 75mm half ball, compatible with a 60mm half ball adapter
  • Compatible with Manfrotto anti rotation and Arri anti-twist pins
  • Equipped with spiked feet with rubber overshoes for a firm grip
  • 2 in 1 spreader for even greater tripod stability (Item sold separately)
