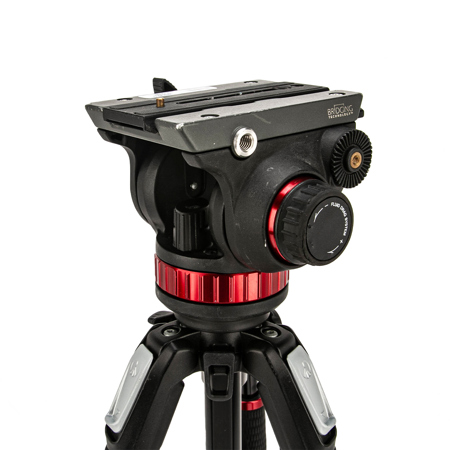

Used Manfrotto MVH502AH Pro Video Head With Quick-Release And Flat Base (3/8"-16 Connection), - With Manfrotto 190X 3 Section Aluminum Tripod

SKU: US1718915

This item is no longer available.

Recommended Items

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2022-06-14T18:34:24

Rated 5 out of 5

My most favorite Versatile Tripod

So far I have loved this tripod. Parker Walbeck recommended me this Tripod and the head cause this is a sturdy tripod and not too heavy. it goes pretty high and also pretty low! a solid versatile tripod

Fernando V.

2022-04-18T08:10:49

Rated 5 out of 5

Great tripod

My new favorite!

Jesse A.

2021-10-19T08:55:44

Rated 4 out of 5

Overall a very solid choice

This a very solid tripod. Works well with my Pocket 6k Pro rig. The only thing I don?t really like about it is the placement of the pan lock and tilt lock. The Pan lock should be on the left side and the drag should be on the right. I?m sure left handed people have no complaints but the other 95% of the world would appreciate the swap. The pan lock is just in a weird place but I don?t use the pan lock as much as I use the tilt lock. The quality of the fluid head is great. It?s built very solidly and the drag is smooth. There was a point where I was hearing an occasionally popping sound when adjusting the tilt drag but the sound is gone now. I absolutely love how lightweight and compact the legs are. Very easy to travel with. If your looking to upgrade from your cheap Amazon tripod and get something a bit more pro, this is a good option for the price.

TEMPLETON W.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Manfrotto MVH502AH Specifications

  • Attaches By

    1/4" and 3/8" attachment type

  • Attachment

    3/8" female thread attachment type

  • Balance Control

    one fix spring for 4kg camera weight

  • Bubble Spirit Level

    1

  • Front Tilt

    -80½ / +90½ tilt range

  • Independent Pan Lock

    Yes

  • Load Capacity

    14.5 lbs / 7 kg

  • Material

    Aluminum

  • Pan Bar Positions

    2

  • Pan Drag

    continuously adjustable from 0 to max level

  • Panoramic Rotation

    360 degrees

  • Plate type

    504PLONG

  • Quick Release

    Yes

  • Secondary Safety System

    Yes

  • Sliding Travel of Plate

    83.0 mm / 3.27 in

  • Spring Loaded Counter Balance

    Yes

  • Tilt Drag

    Continuously adjustable from 0 to max level

  • Weight

    1.6 kg / 3.53 lbs

  • Working Height

    13.0 cm / 5.12 in

About Manfrotto MVH502AH Pro Video Head With Quick-Release And Flat Base - SKU#1718915

When seeking professional-grade video equipment, the Manfrotto 502HD Pro Video Head with Flat Base (3/8"-16 Connection) stands out as a top-tier choice. This advanced model, a significant upgrade from the popular 501HDV, boasts robust construction and Manfrotto's patented bridging technology, a feature inherited from the esteemed 509HD and 504HD heads.

Designed specifically for creating cinematic movements with compact camcorders and DSLR video cameras, the 502HD is available in two versions: the "AH" flat-base version, which is the model in question, and the "A" ball-base version, available separately.

With a weight capacity of 15.4 lbs and counterbalance support for 8.8 lbs, this video head is capable of handling uneven payloads, a common issue when using matte boxes or unique DSLR rig configurations. The balance plate's 3.27" range further enhances its adaptability.

The Manfrotto 502HD Pro Video Head's bridging technology ensures the pan friction control is not only intuitive and easy to set but also safeguarded against potential damage. Independent locks for pan and tilt, along with selectable drag in a continuous range from zero to the maximum level, provide you with the confidence and smooth operation you need for professional video shooting.

The 502HD offers full smoothness control during shooting, thanks to its variable fluid mechanisms. This makes it an ideal choice for the latest camcorder and HDSLR cameras equipped with external accessories (up to 4kg max capacity).

Thanks to its 3/8" female thread, this video head can be seamlessly combined with all photo tripods, enhancing its versatility. Experience the difference in quality and control with the Manfrotto 502HD Pro Video Head with Flat Base.

Manfrotto MVH502AH Pro Video Head With Quick-Release And Flat Base - SKU#1718915 Features

  • 15.4 lbs weight capacity
  • Counterbalance supports 8.8 lbs
  • Spring-loaded counter balance
  • Continuously adjustable pan/tilt drag
  • Pan bar & sliding plate included

What's in the box:

  • Manfrotto MVH502AH Pro Video Head
  • Pan Bar
  • 504PLONG Long Quick Release Mounting Plate
  • Manfrotto 190X 3 Section Aluminum Tripod
  • Item Note: Missing 1/4"-20 Camera Screw; 3/8"-16 Camera Screw
