Manfrotto Video Kit with 516 Pro Video Head, 536 Carbon Fiber Tripod SKU#1679719 Specifications

  • Attachment (Head)

    1/4" and 3/8" screws attachment type

  • Attachment Head (bottom)

    3/8" female thread attachment type

  • Balance control (Head)

    One fix spring for 7.5kg camera weight

  • Bubble spirit level (no.) (Head)

    1 number

  • Color (Head)

    Black

  • Front tilt (Head)

    -60½ / +90½ tilt range

  • Independent pan lock (Head)

    Yes

  • Independent tilt lock (Head)

    Yes

  • Load capacity (Head)

    22.05 lbs

  • Material (Head)

    Aluminum

  • Maximum working temperature (Head)

    -20

  • Minimum working temperature (Head)

    60

  • Pan bar - positions (Head)

    2 number

  • Pan bars included (no.) (Head)

    2 number

  • Pan drag (Head)

    Continuously adjustable from 0 to max level

  • Panoramic rotation (Head)

    360½

  • Plate type (Head)

    357PLV

  • Quick release (Head)

    Yes

  • Secondary safety system (Head)

    Yes

  • Sliding travel of plate (Head)

    3.15 in

  • Tilt drag (Head)

    Continuously adjustable from 0 to max level

  • Center column (Tripod)

    No center column

  • Closed length (Tripod)

    27.95 in

  • Color (Tripod)

    Black

  • Head bowl (Tripod)

    75/100mm

  • Leg angles (Tripod)

    23½. 50½. 70½

  • Leg cross-section (Tripod)

    Round

  • Leg sections (Tripod)

    4 number

  • Legs tube diameter (Tripod)

    39.2 - 34.2 - 29.2 - 24.8

  • Load capacity (Tripod)

    55.11 lbs

  • Material (Tripod)

    Carbon fiber tubing + magnesium castings

  • Weight (Head)

    4.41 lbs

  • Working height (Head)

    4.92 in

  • Maximum height (Tripod)

    79.92 in

  • Minimum height (Tripod)

    10.24 in

  • Weight (Tripod)

    7.16 lbs

  • Base diameter (Bag)

    7.87 in

  • Color (Bag)

    Black

  • Diameter (Bag)

    9.06 in

  • Length (Bag)

    39.37 in

  • Material (Bag)

    ballistic nylon

  • Weight (Bag)

    3.09 lbs

  • Closed length (Kit)

    32.87 in

  • Maximum height (Kit)

    84.84 in

  • Minimum height (Kit)

    15.94 in

  • Weight (Kit)

    11.57 lbs

  • Warranty

    Manfrotto 2 years warranty + 3 additional years after registering online or by sending registration card

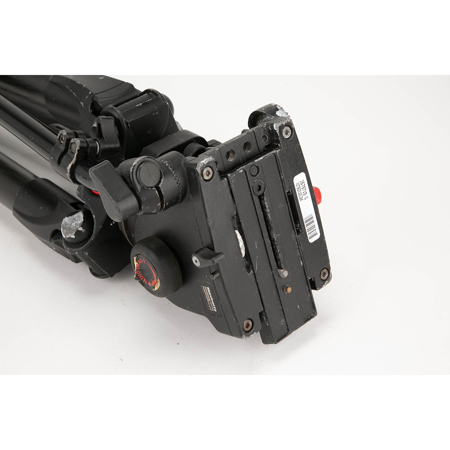

About Manfrotto Video Kit with 516 Pro Video Head, 536 Carbon Fiber Tripod SKU#1679719

The Manfrotto - Manfrotto Video Kit has 516 head which is very compact and light but can support cameras up to 10 kg. The 516 is a cost effective high performance head equipped with fluid cartridges that provide continuous adjustable drag control. This system gives quite a wide range of friction control down to "zero drag" and operates on both pan and tilt axis. Other important features of the head are separate tilt and pan locking mechanism; a fixed counter balance spring of 7.5 kg load capacity at a center of gravity of 125mm; two telescopic pan handles; a bubble level.

The head has been designed so it can be mounted on a flat base tripod with a 3/8" female thread attachment or by attaching the ART 500BALL to the head base, allowing it to fit a 100mm bowl. The 536 video tripod is incredibly high and stable, has a great load capability and great max height with an ergonomic, easy-to-use and compact design. This lightweight tripod features a new leg angle selector, developed for adjusting the leg angle in a quick, easy and precise way. In addition, a screw-in 75/100mm. adaptor to hold the different industry standard half-ball heads.

What's in the box:

  • Manfrotto Pro Video Head (516)
  • Manfrotto Carbon Fiber 3-Stage Video Tripod (536)
  • QR Plate
  • 1/4"-20 Camera Screw
  • Item Note: Paint is Peeling Off; Missing MBAG100P Tripod Bag
