Used Marshall Electronics CV226 2.5MP Full HD Weatherproof Lipstick Camera with Interchangeable 3.6mm Lens

SKU: US1687540

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Marshall Electronics CV226 Specifications

  • Imaging Sensor

    2.5 Megapixel 1/2.86" sensor (4:2:2 color)

  • Total Pixels

    1981 (H) x 1288 (V) / 2551528 (Pixels)

  • Active Pixels

    1944 (H) x 1212 (V) / 2356128 (Pixels)

  • Pixel Size

    2.75 (H) microm x 3222 (V) microm

  • Scanning System

    16:9 Progressive Scan

  • Video Output

    3G/HD-SDI

  • Resolutions-Framerates

    1920x1080p-60/59/50/30/29/25/24/23.98
    1920x1080i-60/59/50
    1280x720p-60/59/50/30/29/25/

  • Horizontal TV

    More than 1000 TVL

  • Lens Mount

    3.6mm F2.0 M12 Mount - interchangeable w/o cap

  • Electric Shutter

    Manual (1/30 or 1/25-1/30000 sec)

  • Auto White Balance

    AUTO/AUTO EXT/ PRESET / Manual (Red-Gain, Blue-Gain)

  • Mirror Image

    Mirror, Horizontal or Vertical Flip

  • Operating / Storage Temp

    -20 - 70 Degree F (-10 - 50 Degree C)

  • Operating Humidity

    IP67 rated; ability to submerge in water up to 45 minutes at a time

  • Power Supply

    12V DC 1.0A

  • Power

    12V DC (7VDC to 15VDC) Max 6W

  • Dimensions (W x H x D)

    0.7 x 0.7 x 2.4" (19.5 x 19.5 x 62.5mm)

  • Weight

    Approx. 0.42 lbs (195g) (With cable)

About Marshall Electronics CV226 2.5MP Full HD Weatherproof Lipstick Camera SKU1687540

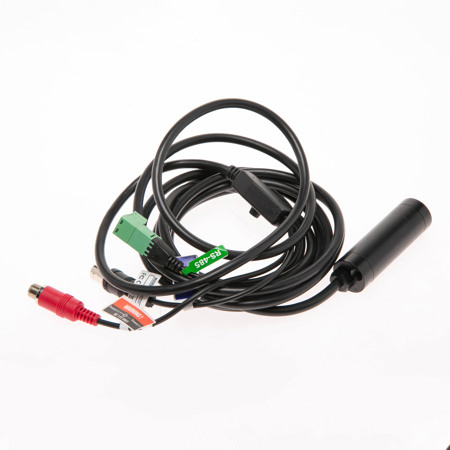

While maintaining a compact and discreet design, the Marshall CV226 All-Weather Lipstick Camera delivers high-definition, full-color video in a robust, weatherproof casing. With a diameter of just 19.5mm and a length of 62.5mm, this lipstick-shaped camera is designed to seamlessly blend into any environment, making it an ideal choice for outdoor surveillance or filming in challenging conditions.

Engineered to withstand harsh elements, the CV226 is ideal for use in environments where exposure to dust, dirt, rain, mud, or snow is inevitable. Despite its miniature size, this camera delivers reliable, crystal-clear video over full-size 3G/HD-SDI (BNC), offering progressive or interlaced resolutions up to 1920x1080. This high-resolution output is made possible with the optional CVM-6 accessory mount.

The Marshall CV226 leverages the latest sensor and processor technology from Marshall, ensuring superior video performance and a low noise threshold, even in low-light conditions. The camera also features a durable and flexible RG6 coaxial breakout cable, designed to withstand heavy use and bend rotation, further enhancing its durability.

For versatile placement and mounting, the CV226 comes equipped with a standard 1/4"-20 mount socket, compatible with tripods, gooseneck, and other camera mounting hardware. For added flexibility, it can be paired with the Marshall CVM-6 Adhesive Camera Mount Kit and lipstick clip.

The CV226 offers flexible control and framerate options, allowing users to easily select between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps at 1080p, 1080i, and 720p resolutions. For remote matching and adjustment, the camera supports RS485 Visca control, enabling precision picture adjustments to be performed from control rooms, OB vans, or broadcast trucks. This feature makes the Marshall CV226 an ideal choice for professional broadcasting and surveillance applications.

Marshall Electronics CV226 2.5MP Full HD Weatherproof Lipstick Camera SKU1687540 Features

  • Full-sized 3G/HD-SDI (BNC) output
  • 2.5 Megapixel (1/2.86") sensor (4:2:2 color)
  • 10-foot (3 meter) breakout cable with BNC (3GSDI), RS485 remote adjust, and locking 12V power
  • Interchangeable M12 lens with IP67 cap includes stock 3.6mm lens (72 Degree H. AOV)
  • IP67-rated weatherproof housing; submerge in water up to 10-feet for several hours
  • Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p
  • Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps
  • Remote adjustable through RS485 (Visca) or OSD menu joystick
  • CV-RCP-V2 Touchscreen RCP compatible and free Camera Control Software option
  • Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more

What's in the box:

  • CV226 2.5MP Full HD Weatherproof Lipstick Camera
  • Interchangeable 3.6mm Lens
  • Original Box
