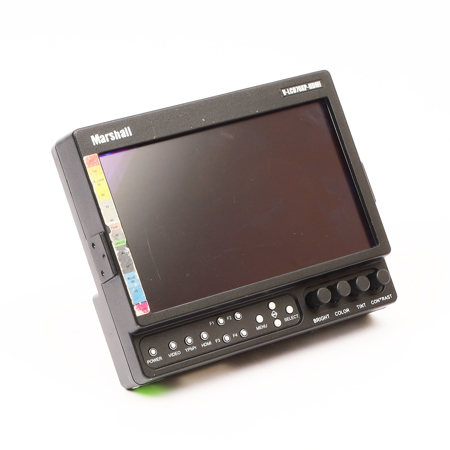

Marshall Electronics V-LCD70XP-HDMI-CM 7" LCD Field Monitor - SKU#1801291 Specifications

  • Display (Viewing Area)

    7.0-inch Diagonal (152.4mm x 91.44mm)

  • Resolution (Pixels)

    800 x 480

  • Viewing Angle L/R

    L/R: 140°
    U/D: 100°

  • Pixel Pitch (mm)

    0.1905mm(H) x 0.1905mm(V)

  • Brightness

    450

  • Contrast Ratio

    600:1

  • Inputs

    Composite x 1
    Component x 1
    HDMI x 1

  • Loop-through outputs

    Composite x 1
    Component x 1

  • Power Consumption

    1 Amp (Max) @ 12VDC (12W Max)

  • Dimensions

    7.03"W x 5.67"H x 2.17"D

  • Approx. Weight

    1.9 lbs.

About Marshall Electronics V-LCD70XP-HDMI-CM 7" LCD Field Monitor - SKU#1801291

The V-LCD70XP-HDMI is the latest update to Marshall's successful and popular line of portable field / camera-top monitors. New features include cast metal front panel, adjustable backlight and markers, HDMI Auto Color Space and Ratio detect, manual gamma adjustment, Image Flip, 1/4"-20 mounting on all sides and a more robust power switch.

This portable monitor is the perfect solution for DSLR and video professionals seeking to capture their best shots. The product is designed, engineered and assembled in the USA.

This 7" monitor offers standard features including a wide variety of formats and markers, 4 user-configurable front panel function buttons, RGB Check Field / Field Detect, RGB gain and bias control, 4-pin XLR power jack and optical grade polycarbonate screen protection. Two other major features include Marshall's industry leading FALSE COLOR and PEAKING Filters. This unit also offers the ability to adapt up to nine different battery configurations for providing mobile operation in the field. This option provides flexibility when using different cameras or configurations. The large selection of battery adapters can be interchanged (or "swapped" out) by the end-user.

Marshall Electronics V-LCD70XP-HDMI-CM 7" LCD Field Monitor - SKU#1801291 Features

  • High resolution 800 x 480 LCD panel
  • HDMI Auto Color Space and Ratio detect
  • Manual Gamma Adjustment
  • Adjustable Backlight
  • Image Flip
  • 1/4"-20 mounts on all sides
  • More robust Power switch
  • Improved, more rugged front panel
  • Variety of Markers, including user-adjustable
  • False Color On/Off
  • Peaking Filter On/Off
  • RGB Check Field / Field Detect
  • 15:9, 16:9, 4:3, Pixel-to-Pixel modes
  • 4 user-configurable function buttons
  • Scratch Resistant Protective Screen
  • RGB gain and bias control

What's in the box:

  • Marshall V-LCD70XP-HDMI-CM 7" LCD Field Monitor
  • Canon (BP-70) Style Battery Mount
  • Firmware Ver. 2.16
  • Item Note: Screen Has A Long Superficial Scratch On The Bottom Left Side of Screen; Missing Power Supply
