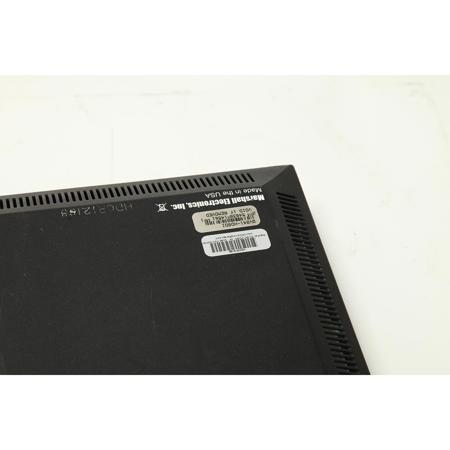

Picture does not represent the actual item
Used Marshall Electronics QV241-HDSDI Full Resolution 24" Desktop Quad Viewer Monitor with IMD
SKU: US1533787
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Marshall QV241-HDSDI Full Resolution 24" Desktop Quad Viewer Monitor SKU#1533787
The Marshall QV-241-HDSDI is a 24" full resolution quad-view monitor featuring 1920 x 1200 resolution, 4 HD-SDI inputs and one DVI-I input. Designed to fit into a standard 6RU racking system, the monitor can display in full-screen, quad-split, or two other modes, preserving its image quality over the gamut of HD and SD formats using a sophisticated scaling technology that preserves all signals with minimal distortion. In-Monitor Display (IMD) capability along with support for Image Video, NVISION, TSL and MEI protocols add further professional versatility, as do a variety of other features including an RS-422/485 port with pass-through, field-upgradeable firmware and numerous markers and shades. All told, the QV-241-HDSDI is an extremely valuable production and post-production tool for broadcasters, studios and mobile units alike.
Marshall QV241-HDSDI Full Resolution 24" Desktop Quad Viewer Monitor SKU#1533787 Features
- Quad-View Support: With the ability to display 4 monitors at once, the QV-241-HDSDI is very useful for multi-cam production and can be especially useful in studio environments and OB vans
- Display Information Directly On Monitor: The monitor has the ability to display UMD data directly on-screen, making it easier to access vital information such as tally and audio levels
- All In One Solution: The fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space
- Automatic NTSC or PAL Recognition: The QV-241-HDSDI accepts both NTSC and PAL standard signals. Conveniently, the monitor automatically detects which standard it is being fed without having to push a button, flip a switch, or access a menu option
- Convenient On-Screen Menu: Control the monitor using Marshall's easy-to-use menu system with controls provided on the front panel. The unique RotoMenu system makes moving through the monitor's menu system quick and easy
- Rack Mountable: The unit can be mounted using several different methods. It can easily be placed on any desktop with an optional desktop stand. For studios and smaller areas, the monitor has mounting brackets for a standard racking system
