Used V-LCD173HR 17.3" Full HD Professional LCD Monitor with Desktop Mount

SKU: US1881645

This item is no longer available.

Recommended Items

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Marshall Electronics V-LCD173HR Specifications

Connectors

Connectors

Jump to...
  • Inputs

    SDI BNC x 1 with Loop Out
    HDMI x 1 with Loop Out
    Composite BNC x 1 with Loop Out
    Audio L/R RCA x 2 Line Level
    Tally HD-15 Pin compatible with GPI open collector or contact closure to ground/earth
    USB 3.0 USB-A x 1 (Firmware Updates)
    XLR-12V 4 pin x 1

  • Outputs

    3.5 mm Front Panel Stereo Headphone Jack

Panel Information

Jump to...
  • Native Resolution

    1920 x 1080 pixels

  • Contrast Ratio

    700:1

  • Luminance

    300 nits

  • Display colors

    16 million colors

  • Viewing Angle

    178-degrees H & V

Supported Formats/Frame Rates

Jump to...
  • Composite Input

    NTSC
    PAL

  • SD-SDI Input

    480i 59.94Hz
    576i 50Hz

  • HD-SDI

    720p 25, 29.97, 30, 50, 59.94, 60 Hz
    1080i 50, 59.94, 60 Hz
    1080psf 23.98, 24.00 Hz
    1080p 23.98, 24, 25, 29.97, 30 Hz

  • 3G-SDI Level A

    1080p 50, 59.94, 60 Hz
    10800i 50, 59, 60 Hz
    1080psf 23, 24, 25, 29.97, 30 Hz
    1080p 23.98, 24, 25, 29.97, 30 Hz

  • SD - HDMI

    480i 59.94, 60 Hz
    576i 50 Hz
    480p 59.94, 60 Hz
    576p 50Hz

  • HD - HDMI

    720p 25, 29.97, 30, 50, 59.94, 60 Hz
    1080i 50, 59.94, 60 Hz
    1080psf 23.98, 24 Hz
    1080p 23.98, 24, 25, 29.97, 30 Hz

General

Jump to...
  • Role of Usage

    17.3" LCD Monitor

  • Application

    Broadcast, live streaming, production, cinema, film, control rooms, field monitors

  • Hardware

    Back Panel Supports VESA 100x100mm and 75x75mm mounting systems
    Optional Desktop Stand Model V-ST15 Available

  • Dimension (D x L x W)

    1.29 x 17.7 x 10.5" (3.28 x 45 x 26.7cm)

  • Weight

    7.9 lb (3.6kg)

About Marshall V-LCD173HR 17.3 " Full HD Professional LCD Desktop Monitor SKU#1881645

Because visual clarity and precision are paramount in professional settings, the Marshall V-LCD173HR 17.3" Full HD Professional LCD Monitor emerges as the quintessential choice for experts seeking high-quality, reliable displays. Boasting a native resolution of 1920 x 1080, this monitor delivers crystal-clear images that are essential for critical monitoring and evaluation in video production, photography, and content creation.

Crafted with durability and style in mind, the V-LCD173HR's robust 6RU frame is not only designed to withstand the rigors of both studio and field use but also offers the flexibility of rack mounting or desktop placement. This adaptability makes it an ideal companion for a diverse range of professional environments.

The monitor is equipped with an array of advanced adjustment settings, ensuring that users can fine-tune their visual experience to match their specific needs. Features such as built-in histogram, peaking for focus confirmation, false color for exposure assessment, and adjustable safety markers enhance the functionality of this display, making it a powerful tool for professionals.

Furthermore, the V-LCD173HR is capable of monitoring up to two audio channels, adding an extra layer of convenience for audio-visual synchronization and quality checks. The inclusion of both HDMI and HDSDI inputs and outputs signifies the monitor's commitment to versatility, allowing seamless integration with a multitude of devices and systems.

The ability to convert between HDMI and SDI signals further underscores the monitor's utility in a professional setting, where various signal types are often encountered. This feature ensures that the V-LCD173HR remains a reliable and stylish solution for professionals who require a monitor that can keep pace with the ever-evolving landscape of technology.

Whether you're engaged in gaming, video editing, graphic design, or any other application that demands a high-quality display, the Marshall V-LCD173HR 17.3" Full HD Professional LCD Monitor with Desktop Mount stands out as a top-tier choice for discerning users who value exceptional image quality, robust functionality, and cross-platform compatibility with both PC and Mac systems.

Marshall V-LCD173HR 17.3 " Full HD Professional LCD Desktop Monitor SKU#1881645 Features

  • Rec 709 compliant
  • LED Tally lights
  • HDMI/HDSDI inputs and outputs with conversion ability
  • Range of broadcast and production adjustment settings including markers, brightness, contrast, aspect ratio, peaking, false color, exposure, histogram, and more
  • Rack ears or VESA mount options
  • BNC connectors
  • Two-channel audio monitoring
  • Image flip ability
  • Headphone jack

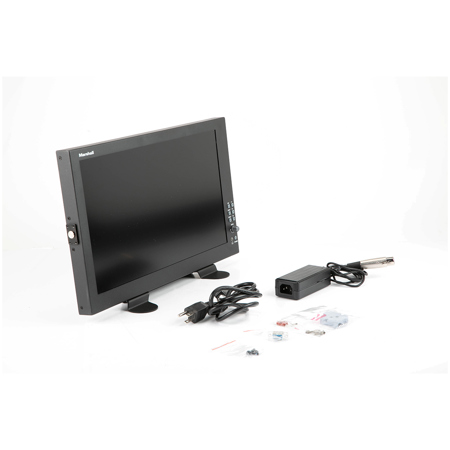

What's in the box:

  • LCD173HR 17.3 " Full HD Professional LCD Desktop Monitor
  • Desktop Mount Adapter
  • (Rack Ears Not Included)
  • Original Box
