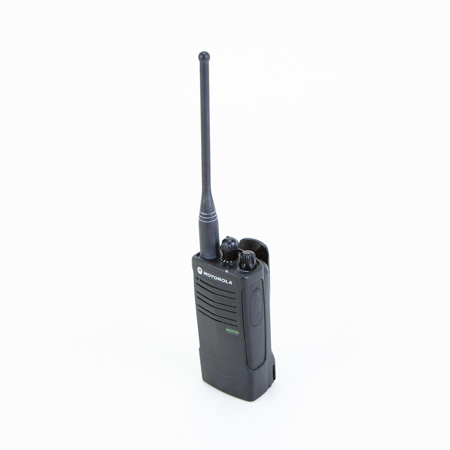

Motorola RDX Business Series RDU4100 10 Channel Two-Way UHF Radio
See all Motorola items
Used Condition: Average

Used Motorola RDX Business Series RDU4100 10 Channel Two-Way UHF Radio

SKU: US2034135 MFR: RDU4100
Be the first to review this item
$149.00
Earn VIP Reward Points
See 1 Used options for $149

What`s in the box:

  • Motorola RDX Business Series RDU4100 10 Channel Two-Way UHF Radio
  • 2400mAh Lithium Ion Rechargeable Battery
  • Spring Belt Clip- Antenna
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

1
Add to List

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$14.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Motorola RDU4100 Specifications

  • Frequency Range

    UHF (438 - 470MHz)

  • Audio Output

    2000mW

  • Channels Capacity

    10 Channels

  • Channel Bandwidth

    12.5kHz

  • Average Battery Life at 5/5/90

    With Standard 1100 mAH Li-Ion Battery: Up to 8.5 hours
    With High Capacity 2400 mAH Li-Ion Battery: Up to 18.5 hours (with Battery Save On)

  • Power Supply Voltage

    7.2 Volts DC (Li-Ion Battery Pack or Alkaline)

  • Transmitter: RF Output

    High: 4W
    Low: 2W

  • Transmitter: Frequency Stability

    < 2 ppm

  • Transmitter: Spurs & Harmonics

    < -50 dBc

  • Transmitter: FM Hum & Noise

    40 dB at 12.5kHz / -45 dB at 25.0kHz

  • Transmitter: Modulation Limiting

    +-2.5kHz at 12.5 kHz / +-5.0 kHz at 25.0kHz

  • Transmitter: Adjacent Channel Power

    60dBc

  • Transmitter: Radiated Spurious Emissions

    < -20dBm at 12.5kHz / < -13dBm at 25kHz

  • Transmitter: Audio Frequency Response

    +1 to -3 dB (0.3 - 3.0 kHz)

  • Transmitter: Audio Distortion

    < 2%

  • Receiver: Sensitivity (12 dB SINAD)

    -122 dBm (0.18 MuV)

  • Receiver: Adjacent Channel Selectivity

    60dB at 12.5kHz / 65dB at 25.0kHz

  • Receiver: Intermodulation rejection

    60dB

  • Receiver: Spurious response Rejection

    80 dB (blocking 1Mhz)

  • Receiver: Audio Distortion

    < 5%

  • Receiver: CSQ Hum & Noise at 12.5kHz

    -50dB

  • Receiver: PL Hum & Noise at 12.5kHz

    -50dB

  • Receiver: DPL Hum & Noise at 12.5kHz

    -45dB

  • Receiver: Radiated Spurious Emissions

    < -54dBm (< 1GHz)
    < -52 dBm (> 1GHz)

  • Receiver: Audio Output

    1.5W at 8Ohms (At <5% Distortion)

  • Operating Temperature

    -30 to 60 deg. C / -22 to 140 deg. F(Radio)

  • Sealing

    IP55

  • Shock & Vibration

    Polycarbonate Housing passes EIA 603

  • Dust & Humidity

    Satisfied EIA 603

  • Military Standards

    MIL-STD-810-C, MIL-STD-810-D, MIL-STD-810-E, MIL-STD-810-F

  • Dimensions (H x W x D)

    With Standard Li-Ion Battery: 4.5 x 2.2 x 1.6" / 114.30 x 55.88 x 40.64mm
    with High Capacity Li-Ion Battery: 4.5 x 2.2 x 1.8" / 114.30 x 55.88 x 45.72mm

  • Weight

    With Standard Li-Ion Battery: 8.5oz / 240.97g
    with High Capacity Li-Ion Battery: 10.3oz / 292.00g

About Motorola RDX Business Series RDU4100 10 Channel Two-Way UHF Radio

The RDX series brings workplace noise to its knees by helping to ensure exceptional audio quality in the loudest environments. Designed for noisy areas, their radios are 30% louder than previous Motorola XTN and Ax models as a result of new design enhancements. This business-essential radio provides the perfect partnership of excellent audio and exceptional durability. The RDU4100 4 watt two-way radio operates on an innovative 89 business-exclusive UHF frequencies and is 2013 FCC Narrowband ready. The default factory programming on this RDX radio is set to operate in 12.5kHz mode. Enhanced audio quality, a rugged design and versatile customer programming software, make this radio an exceptional choice for all of your on-site business needs.

Business-exclusive frequencies
89 UHF frequencies make signals extra-secure and exceptionally clear. 219 codes, including customized PL and DPL codes to help ensure a clear signal.

Exceptional voice quality
Delivers increased clarity through wind-noise reduction.

Rugged and water-resistant
Meets military specifications for sealing against dust, wind, shock, vibration and other adverse conditions.

Customer programming software
Allows users to perform programming functions and access new features.

Bright sensors
Tricolor LED indicator shows feedback of calling or monitoring features.

Enhanced battery performance
Lithium-ion battery lasts longer, with no memory "over-charge" side effects.

Simplified cloning
Quickly copies settings from radio to radio when used with accessory.

Voice activation
Enables hands-free operation when used with accessory.

Disable Channel
Allows users to disable and skip undesirable channels via the customer programming software (CPS).

Channel Annunciation
Voice support for channel announcement.

Repeater Capability
Compatible with duplex repeaters so you can significantly extend your radio coverage area.

Dynamic Talkaround Scan
Allows the radio to automatically switch between repeater and talkaround modes in order to optimize communications.
