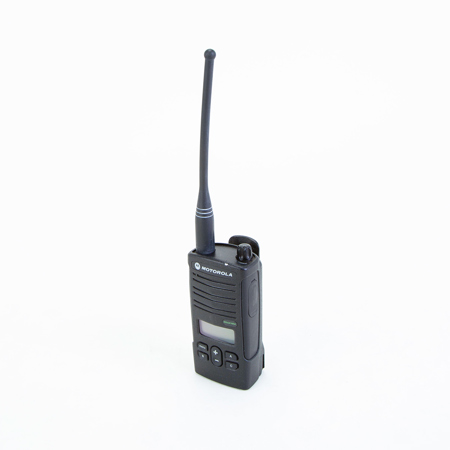

Used Motorola RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio with Display

SKU: US2034091 MFR: RDU4160D
$179.00
Earn VIP Reward Points

What`s in the box:

  • Motorola RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio with Display
  • 2400mAh Lithium Ion Rechargeable Battery
  • Spring Belt Clip
See more

Key Features

  • High-tech Motorola two-way UHF radio designed for professional use in noisy environments
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

1

Add Adorama Protect:

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Motorola RDU4160D Specifications

  • Frequency Range

    UHF (438 - 470MHz)

  • Audio Output

    2000mW

  • Channels Capacity

    16 Channels

  • Channel Bandwidth

    12.5kHz

  • Average Battery Life at 5/5/90

    With Standard 1100 mAH Li-Ion Battery: Up to 8.5 hours
    With High Capacity 2400 mAH Li-Ion Battery: Up to 18.5 hours (with Battery Save On)

  • Power Supply Voltage

    7.2 Volts DC (Li-Ion Battery Pack or Alkaline)

  • Transmitter: RF Output

    High: 4W
    Low: 2W

  • Transmitter: Frequency Stability

    < 2 ppm

  • Transmitter: Spurs & Harmonics

    < -50dBc

  • Transmitter: FM Hum & Noise

    40 dB at 12.5kHz / -45 dB at 25.0kHz

  • Transmitter: Modulation Limiting

    +-2.5kHz at 12.5 kHz / +-5.0 kHz at 25.0kHz

  • Transmitter: Adjacent Channel Power

    60dBc

  • Transmitter: Radiated Spurious Emissions

    < -20 dBm at 12.5kHz / < -13 dBm at 25kHz

  • Transmitter: Audio Frequency Response

    +1 to -3dB (0.3 - 3.0 kHz)

  • Transmitter: Audio Distortion

    < 2%

  • Receiver: Sensitivity (12 dB SINAD)

    -122dBm (0.18 MuV)

  • Receiver: Adjacent Channel Selectivity

    60dB at 12.5kHz / 65dB at 25.0kHz

  • Receiver: Intermodulation rejection

    60dB

  • Receiver: Spurious response Rejection

    80dB (blocking 1MHz)

  • Receiver: Audio Distortion

    < 5%

  • Receiver: CSQ Hum & Noise at 12.5kHz

    -50dB

  • Receiver: PL Hum & Noise at 12.5kHz

    -50dB

  • Receiver: DPL Hum & Noise at 12.5kHz

    -45 dB

  • Receiver: Radiated Spurious Emissions

    < -54 dBm (< 1GHz)
    < -52 dBm (> 1GHz)

  • Receivier:Audio Output at <5% Distortion

    1.5W at 8Ohms

  • Operating Temperature

    -30 to 60 deg. C / -22 to 140 deg. F(Radio)

  • Sealing

    IP55

  • Shock & Vibration

    Polycarbonate Housing passes EIA 603

  • Dust & Humidity

    Satisfied EIA 603

  • Military Standards

    MIL-STD-810-C, MIL-STD-810-D, MIL-STD-810-E, MIL-STD-810-F

  • Dimensions (H x W x D)

    With Standard Li-Ion Battery: 4.5 x 2.2 x 1.6" / 114.30 x 55.88 x 40.64mm
    with High Capacity Li-Ion Battery: 4.5 x 2.2 x 1.8" / 114.30 x 55.88 x 45.72mm

  • Weight

    With Standard Li-Ion Battery: 8.5oz / 240.97g
    with High Capacity Li-Ion Battery: 10.3oz / 292.00g

About Motorola RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio with Display

Overcome workplace noise and enhance communication with the RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio with Display. This high-tech, user-friendly, and portable device is designed by Motorola, a brand renowned for its durable and reliable electronics.

Engineered specifically for noisy environments, this two-way radio boasts a 30% increase in volume compared to previous Motorola XTN and Ax models, thanks to innovative design enhancements. The RDU4160D operates on a unique set of 89 business-exclusive UHF frequencies and is fully compliant with the 2013 FCC Narrowband mandate.

The radio's default factory programming is set to operate in 12.5kHz mode, ensuring clear and secure signals. With an easy-to-read display and five programmable buttons, users can quickly access the radio's features and settings.

The RDU4160D is not just about excellent audio quality; it's also built to last. Meeting military specifications for resistance against dust, wind, shock, and vibration, this radio is as rugged as it is functional.

The device comes with customer programming software, allowing users to customize settings and access new features. Its tricolor LED indicator provides clear feedback on calling or monitoring features.

The radio's lithium-ion battery offers enhanced performance, lasting longer without the risk of memory "over-charge" side effects. For convenience, the radio also supports simplified cloning, enabling quick copying of settings from one radio to another when used with an accessory.

Voice activation allows for hands-free operation, while the Disable Channel feature lets users skip undesirable channels via the customer programming software. The radio also supports channel annunciation and is compatible with duplex repeaters, significantly extending your radio coverage area.

Whether you're operating in a warehouse, construction site, or any other professional setting, the RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio with Display is your perfect partner for clear, reliable, and efficient communication.

Motorola RDX Business Series RDU4160D 16-Channel Two-Way UHF Radio with Display Features

  • High-tech Motorola two-way UHF radio designed for professional use in noisy environments
  • Features 16 channels and operates on 89 business-exclusive UHF frequencies for secure and clear communication
  • Rugged design meeting military specifications for resistance against dust, wind, shock, and vibration
  • User-friendly with an easy-to-read display, five programmable buttons, and customer programming software
  • Enhanced battery performance with a long-lasting lithium-ion battery that avoids memory "over-charge" side effects
  • Supports voice activation for hands-free operation, simplified cloning, and is compatible with duplex repeaters for extended coverage
