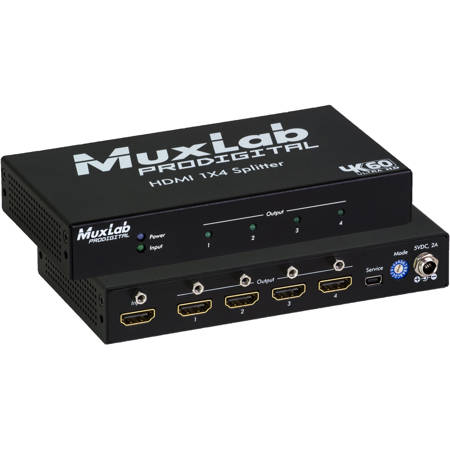

Muxlab 4K/60 HDMI 1x4 Splitter

Picture does not represent the actual item
See what's in the box

See all Muxlab items

Used Muxlab 4K/60 HDMI 1x4 Splitter

SKU: US1463548
Be the first to review this item

This item is no longer available.

Buy it New

Muxlab 1x4 4K UHD HDMI Splitter
Muxlab 1x4 4K UHD HDMI Splitter
$207.00
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Muxlab Splitter Specifications

  • Environment

    HDMI 2.0a

  • Devices

    Ultra HD Blu-Ray, Projectors, Monitors, TV, PC, Laptops

  • Transmission

    Transparent to The User

  • Video Bandwidth

    18 Gbps

  • Frequency Range

    25 to 600 MHz

  • Signals HDMI

    2.0a Protocol

  • HDCP

    Revision 1.4 & 2.2 Compliant

  • Connectors

    HDMI Receptacle

  • Dip Switch

    For Setting The EDID to be Sent to The Source (Pins: 2, 3 and 4)

  • LEDs

    Power: Blue
    Input & Output Link: Green

  • Resolution

    480i to 1080p @ 50/60 FPS
    1080p @ 24/50/60 FPS
    3840 X 2160 @ 24/25/30/60 FPS

  • Color

    8, 10 & 12 bit

  • Audio

    LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:XCableHDMI Cable of Appropriate Length for Video Resolution Selected

  • Power Supply

    One (1) 110-240V/5VDC , 2A Power Supply

  • Temperature

    Operating: 0 Degree to 40 Degree C
    Storage: -20 Degree to 60 Degree C
    Humidity: up to 90% Non-Condensing

  • Enclosure

    Metal Enclosure

  • Bracket

    Included

  • Compliance

    Regulatory: FCC, CE, RoHS

  • Dimensions

    5.71 x 2.64 x 1.00" (145 x 67 x 25mm)

  • Weight

    1.2 lbs (0.55kg)

About Muxlab 4K/60 HDMI 1x4 Splitter

The HDMI 1x4 Splitter, 4K60 (500426) allows one (1) HDMI 2.0 source to be distributed to up to four (4) HDMI displays. The splitter supports up to 4K (3840 X 2160) video @ 60Hz, HDR, Deep Color and HD audio. The splitter is HDCP 1.4 & 2.2 compliant and features EDID management and LED diagnostics. Additionally, all connectors are on the rear panel for neater cabling.

Applications
• Commercial and residential AV systems
• Classroom training systems
• Digital signage
• Boardroom systems
• Collaborative PC systems
• Medical information systems

Muxlab 4K/60 HDMI 1x4 Splitter Features

  • Distribute One HDMI 2.0 Source to Four Displays
  • Supports Up to 4K @ 60Hz (4:4:4)
  • HDCP 1.4 and 2.2 Compliant
  • Supports HDR and Deep Color
  • Independent Down-Scaler From 4K to 1080p at Each Output
  • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio and DTS:X
  • Dip Switch for EDID Management
  • LED Diagnostic

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • 4K/60 HDMI 1x4 Splitter
  • Bracket
  • 110-240VAC Power Supply
  • Original Box
