Muxlab ProDigital Ethernet Network Controller
Muxlab 500812: Picture 1 thumbnail
Muxlab 500812: Picture 2 thumbnail
Muxlab 500812: Picture 3 thumbnail
Muxlab 500812: Picture 4 thumbnail

Picture does not represent the actual item

See all Muxlab items
CloseoutUsed Condition: Excellent

Used Muxlab ProDigital Ethernet Network Controller

SKU: US1919713 MFR: 500812
Be the first to review this item
$317.00
OR
$53/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $317

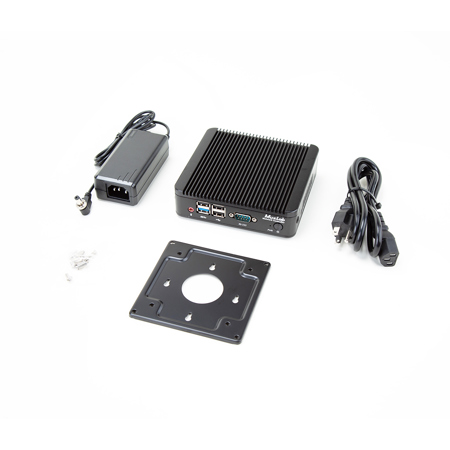

What`s in the box:

  • Muxlab ProDigital Ethernet Network Controller
  • 12VDC 2A Power Adapter
See more

Key Features

  • Centralized control of MuxLab AV over IP devices
  • Managed via Web Interface
  • Manages AV over IP device configuration & connectivity
  • Supports connectivity presets
  • May be managed by MuxControl App and 500816-IP 8 Button IP PoE Control Panel
  • Centralized management of AV over IP device firmware updates
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

1
Add to List

Add Adorama Protect:

Available to U.S. customers only.
1-Year Adorama Protect$19.99

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Muxlab 500812 Specifications

  • CPU

    Intel Celeron J1800 Processor, @ 2.41GHz 4 cores

  • Memory

    2GB DDR3

  • Display

    Integrated Intel HD Graphics, 1x HDMI and 1x VGA

  • Keyboard and Mouse

    USB keyboard and mouse (not required and not included)

  • Peripherals

    USB 2.0 ports (3x)
    SS USB 3.0 port (1x)
    Network gigabit interface (2x)
    VGA Video out port (1x)
    HDMI Video out port (1x)
    Audio in via 3.5mm port (1x)
    Audio out via 3.5mm port (1x)
    RS232 port (1x)

  • Operating System

    Ubuntu 18.04 LTS

  • Temperature

    Operating: 32 Degree to 122 Degree F (0 Degree to 50 Degree C)
    Storage: -4 Degree to 176 Degree F (-20 Degree to 80 Degree C)
    Humidity: 10% to 90% (non-condensing)

  • Regulatory

    FCC, CE, RoHS, WEEE

  • Dimensions

    5.24 x 5.00 x 1.38" (133 x 127 x 35mm)

  • Weight

    1.5 lbs (700g)

About Muxlab ProDigital Ethernet Network Controller

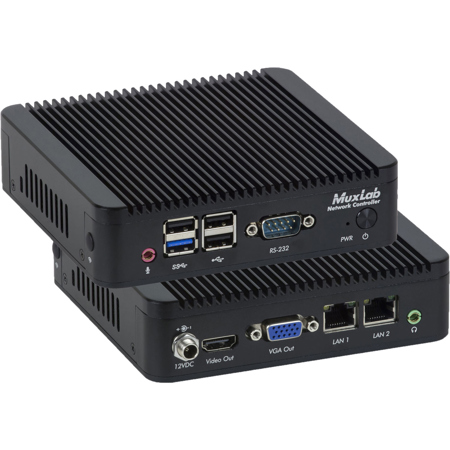

The MuxLab ProDigital Network Controller is a Linux- based PC that allows users to control hub-installed MuxLab products via an Ethernet Web interface. When installed on a local area network (LAN), the MuxLab Network Controller will scan the LAN for connected MuxLab AV over IP products allowing the user to auto-discover, configure and control the connectivity of these products through an Ethernet Web interface.

The Controller may also be managed by MuxLab's MuxControl App and the 500816-IP 8 Button IP POE Control Panel. The unit may also be used to manage firmware upgrades of connected MuxLab devices.

An Application Program Interface (API) is available supporting a number of third party partner control applications running on smartphones and tables.

Applications
Commercial and residential AV systems, digital signage, multi-room systems, retail systems, collaborative PC systems, and medical information systems.

Muxlab ProDigital Ethernet Network Controller Features

  • Centralized control of MuxLab AV over IP devices
  • Managed via Web Interface
  • Manages AV over IP device configuration & connectivity
  • Supports connectivity presets
  • May be managed by MuxControl App and 500816-IP 8 Button IP PoE Control Panel
  • Centralized management of AV over IP device firmware updates
  • Supports an API for Third Party App integration
  • Serves as a base platform to develop automation control applications
