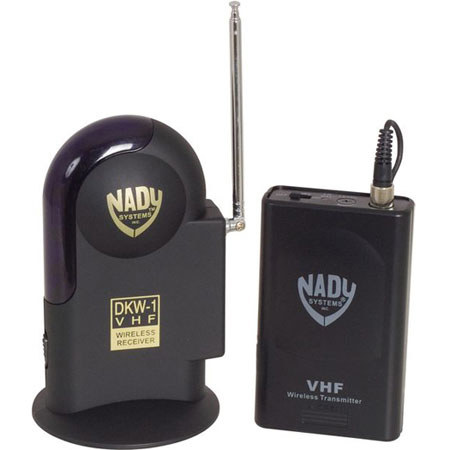

Used Nady DKW-1LT/HM3 VHF Headset Uni Wireless System with DKW-1 Receiver, WLT-14 Transmitter

SKU: US1993000 MFR: DKW-1LT/HM-3
$59.00
Earn VIP Reward Points

What`s in the box:

  • DKW-1 Non Diversity Receiver
  • AC-DKW-1 Power Supply
  • 6' Connecting Cord
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 1-year warranty. ?
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2011-09-03T21:00:00

Rated 4 out of 5

Great for the Price

I used the mic for a line dance social so I could call out steps. It worked great for that. I don't know if it would be good for any strenous activity.

LineDancerHawaii

Nady DKW-1LT/HM3 Specifications

  • Overall System Frequency Response

    40-20,000 Hz, +/-3dB

  • Dynamic Range

    100dB

  • Harmonic Distortion

    <0.65%

  • RF Carrier Frequency

    170-216 MHz

  • Frequency Stability

    +/- 0.005%, crystal controlled

  • Modulation

    FM (F3E), +/-20KHz max.

  • Operating Range

    250 ft. typical up to 500+ ft. line-of-sight

  • Transmitters: Audio Inputs

    WHT-14: Nady DM-10D neodymium cartridge
    WLT-14:3.5mm mono locking jack for connecting to omni or uni-directional lavalier mic or uni-directional headworn mic, with phantom power

  • Controls

    WHT-14 OFF/STANDBY/ON
    switch WLT-14 OFF/STANDBY/ON switch, input level adjust

  • LED Indicator: Transmitters

    Unit ON (single flash), Low Battery Alert (steady)

  • RF Power Out

    50mW (Max. allowed by FCC)

  • Harmonic & Spurious Emissions

    >-40dB

  • Battery

    9V Alkaline

  • Battery Life

    Up to 15 Hours

  • Dimensions

    WHT-14: 9.5" X 1.4" Dia. (24.1cm X 3.5 cm)
    WLT-14: 4.1" X 2.4" X 0.8" (10.4cm X 6.1cm X2.0cm)

  • Weight (w/o battery)

    WHT-14: 6.9 oz. (193 g.)
    WLT-14: 3.6 oz. (101 g.)

  • Receivers Controls:

    DKW-1: Power ON/OFF
    DKW-2: Power ON/OFF, Volume, Mute Adjust
    Connectors:
    1/4 unbalanced audio out jack
    2.1mm barrel-type DC input jack

  • LED Indicator

    DKW-1: Power ON, Transmitter RF, Audio Peak DKW-2: Power ON, Transmitter RF, 5 segment Audio display

  • Dimensions (Max.)

    DKW-1: 5.2 X 3.0 1.7, 3.3 Dia. Base (13.2 X 7.6 X 4.3 cm, 8.4cm.)
    DKW-2: 5.75 X 3.75 X 1.25 (147 X 96 X32mm)

  • Weight

    DKW-1: 5.9 oz. (165 g.) DKW-2: 7.6 oz. (215.5 g.)

  • Power Requirements

    DKW-1: 12V @ 70mA, nominal, AC/DC adapter supplied
    DKW-2: 12V @ 200mA, nominal , AC/DC adapter supplied
    Antenna: Single 12.1 (31 cm), collapsible

About Nady DKW-1LT/HM3 VHF Headset Uni Wireless System with DKW-1 Receiver, WLT-14 Transmitter

DKW Series...Redefining the price/performance boundaries of professional wireless

With a choice of two models, the Nady DKW Series are the perfect entry level professional wireless. Delivering clear, transparent, high-fidelity audio, the DKW Series systems can be used for a broad range of singing and speaking applications, karaoke and recreational singers, DJ's, auctioneers, teachers, aerobic instructors, clergy, and a host of others. Although offered at a breakthrough new low price for a professional wireless, the DKW Series are loaded with features:

• High-band VHF (170-216 MHz) operation for interference-free performance
• Advanced companding circuitry for a wide dynamic range (no overloading for loud inputs or background hiss during quiet use)
• Full frequency response from 40 -20,000 Hz
• 250 ft. typical operating range up to 500+ feet line-of-sight • Choice of 2 transmitters:
• WHT-14 handheld mic with a powerful neodymium cartridge that delivers unsurpassed audio quality, low handling noise and enhanced feedback rejection.
• WLT-14 bodypack for lavalier or headworn mic
• Choice of 2 receivers:
** DKW-1 mini portable receiver with unique space-saving, vertical design and power ON/OFF switch, 1/4" audio output jack, and easily visible extra-jumbo LED indicators for power on, transmitter on and audio peak.
• DKW-2 ultra portable receiver with enhanced features, including front panel power ON/OFF switch , 5 segment LED Audio Display, LED indicators for power on and received signal, and volume control; and rear panel mute (RF squelch) adjust control and audio output jack.
• Special added circuitry in both receivers eliminates transmitter on/off pop" noise
