Neumann KMR 81 D Digital Lobe Interference Shotgun Microphone - SKU#1840354

Picture does not represent the actual item
See what's in the box

See all Neumann items

Used Neumann KMR 81 D Digital Lobe Interference Shotgun Microphone

SKU: US1840354
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Neumann KMR 81 i Shotgun Condenser Microphone, Black
undefined undefined: Picture 1 regular
Neumann KMR81i 8.9" Short Shotgun Microphone for Film Dialogue and ENG
undefined undefined: Picture 1 regular
Neumann KMR 81 i Shotgun Condenser Microphone, Black, Bundle with Rycote 15cm Standard Hole SGM Foam with 19mm/22mm Windscreen
undefined undefined: Picture 1 regular
Neumann KMR82i 15.55" High Directional Long Shotgun Condenser Microphone, Nickel
undefined undefined: Picture 1 regular
Neumann Windscreen for KMR 81i Microphone
undefined undefined: Picture 1 regular
Neumann KK120 Figure 8 Capsule Head with Woodbox for KMD & KMA Series Output Stages, Nickel
undefined undefined: Picture 1 regular
Neumann Auditorium with 21-22mm Clamp for KM 180/100 Series/KMR 81 i
undefined undefined: Picture 1 regular
Neumann KH 80 DSP Active Near-Field DSP Monitor, White
undefined undefined: Picture 1 regular
Neumann KVG 130 nx Capsule Extension for System KM D/KM A, 30cm, Nextel Black
undefined undefined: Picture 1 regular
Neumann REK 3 Remote Electronics Kit for KH 805/810/870 Electronics Panel
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Neumann KMR81D Specifications

  • Transducer

    Interference Transducer

  • Polar Pattern

    Supercardioid/Lobe

  • Frequency Response

    20Hz - 20kHz

  • Dynamic Range (Typical)

    114dB

  • Signal-to-Noise Ratio

    Equivalent noise level, CCIR: 21dB
    Equivalent noise level, A-weighted: 9dB-A
    Signal-to-noise ratio, CCIR: 73dB
    Signal-to-noise ratio, A-weighted: 85dB

  • Maximum Input Sound Level

    SPL at 0 dBFS: 123 dBSPL

  • Sensitivity

    Free-field sensitivity: -36 dBFS

  • Preset

    Sampling rates: 48kHz
    Gain: 10dB
    Compressor on, Attack time 100ms, Release time 0.5s, Threshold -10 dBFS, Ratio 2:1

  • A/D Conversion

    Neumann process (patented), 28-bit internal word length

  • Digital Signal Processing (DSP)

    Fixed-point, variable internal word length 28 bits to 60 bits

  • Synchronization

    Asynchronous operation (free-running, AES42 - Mode 1), basic frequency accuracy: +/- 25 ppm
    Synchronous operation (AES42 - Mode 2), pulling range: Min. +/- 100 ppm

  • Remote Operation

    Interface: AES42
    Remote controlled functions:
    Polar pattern4)
    Low-cut: flat, 40, 80, 160Hz
    Pre-attenuation: 0, -6, -12, -18dB
    Gain: 0-63dB in 1dB steps, clickless - Test signal: 1 kHz, pink noise, white noise
    Parametric compressor/limiter (with de-esser function)
    Independent peak limiter avoiding any clipping
    Switch functions: soft muting, phase reverse, signal lights
    Signal lights: red and blue LEDs
    System functions, firmware download

  • Power Requirements

    Supply voltage range: +7V to +10.5V
    Current consumption: max. 150 mA

  • Output Connectors

    XLR3M, 24 bits as per AES/EBU (AES3)

  • Dimensions (L x Dia.)

    8.36 x 1.46" (212.34 x 37.08mm)

  • Weight

    3.17oz (89.86g)

About Neumann KMR 81 D Digital Lobe Interference Shotgun Microphone - SKU#1840354

The Neumann KMR 81 D Digital Shotgun Microphone is a digital version of the coveted Neumann KMR 81 I shotgun microphone. This digital counterpart to the KMR 81 I exhibits all the benefits of its lobe/supercardioid polar pattern with professional grade A/D conversion and an internal compressor / limiter to avoid digital peak clipping. The capsule features a combination of a pressure gradient transducer and an interference tube.

If the wavelength of the frequency is longer than the tube length, the microphones work as pressure gradient transducers. At higher frequencies they operate as interference transducers for lateral sound. As a result all off-axis sound sources are attenuated without coloration. The KMR 81 D is well suited to record individual instruments, vocals and speech within highly ambient environment and much more.

Neumann KMR 81 D Digital Lobe Interference Shotgun Microphone - SKU#1840354 Features

  • Interference tube microphone with shotgun directional characteristic
  • Interference/pressure-gradient transducer
  • High lateral and back attenuation
  • 90deg. recording angle
  • Extensive accessories for outdoor use
  • The legendary Neumann sound in the digital realm. Pure Neumann capsule sound
  • The satisfaction of recording the uncolored original, with no "bottlenecks" between the capsule and the recording system
  • The assurance of having one of the best A/D converters available
  • Anti-clipping processing ensures handling safety, and reduces stress
  • Reduced time requirements and personnel costs, particularly due to faster post production processing
  • Lower investment costs, since separate A/D converters and preamps are no longer needed. This also means space and weight savings (e.g. in the OB van)

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

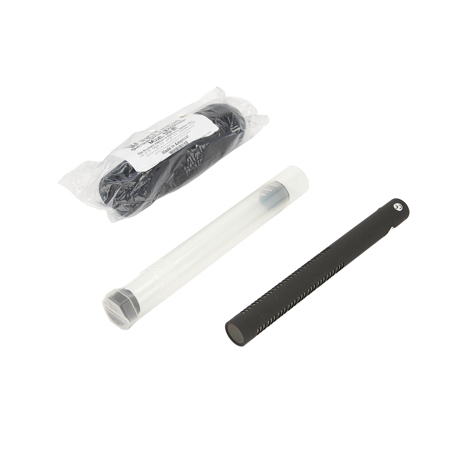

What's in the box:

  • Neumann KMR 81 D Digital Supercardioid/Lobe Interference Shotgun Microphone
  • WS 81 Windscreen
  • Twist Pack
