PMW-300 Camcorder
1x XLR 4-Pin M (12V DC)
Battery Mount (Gold Mount or V-Mount)
1x XLR 4-Pin F (12V DC. 3A max.)
1x 4-Pin (12V DC. 2A max. & 8.4V DC. 2A max. )
1x D-Tap (DC 12V)
3x BNC-BNC
1x 1/4-20 with locking-pin
1x 1/4-20
Rubberized; gel-like and molds to any shoulder
12VDC (10VDC - 18VDC)(Approx. 0.8W)
Operating: 0 to 40 deg. C / 32 to 104 deg. F
Storage: -20 to 60 deg. C / -4 to 140 deg. F
Main body: 153 x 240 x 449mm / 6.02 x 9.45 x 17.68"
Main body: 1kg / 2.20lbs

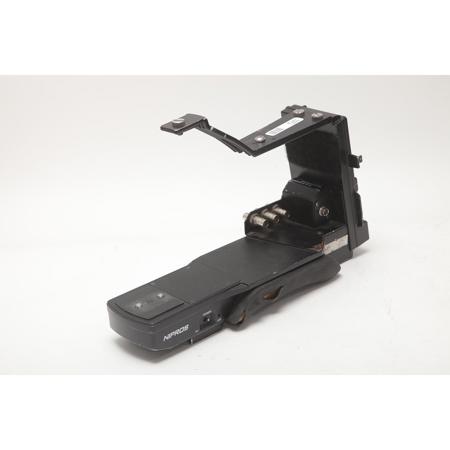

Nipros is expanding its ST-7 series of shoulder mount rigs with the new ST-7S300. It perfectly matches the contours of the newly released PMW-300 camera from Sony but also accommodates many popular cameras from major camera manufacturers.
All switches, connecters & attachment points are logically placed for optimum functionality and ease of use.
The complete ST-7S300 camera rig can be readily mounted on a Steadicam system or mounted on a tripod, geared-head or motion-control system.
Compact & lightweight allows for new possibilities for creative camera work, while delivering the uncompromised picture quality of the user's camera.
New Refined Ergonomics
Stylish & compact design increases the comfort & versatility of the user's camera.
20% lighter - The lightweight rig is sure to maximize productivity by reducing operator fatigue & discomfort.
Even with the camera, viewfinder, battery, memory card, microphone & the supplied lens, the total combined weight is only approximately 10lbs (4.5 kg).
Combined Comfort & Simplicity
The rubberized, gel-like, shoulder pad molds to any shoulder without slipping while maintaining excellent camera balance.
Durable and is proven to hold up to the rigors of professional use.
Simply put, the ST-7S300 is a lightweight and durable exoframe that adds ENG camera features to professional handheld cameras.
Professional Connector Interfaces for frequent camera build-up & tear-down that is common in ENG applications.
Incorporates three, user defined, professional BNC video connections along with auxiliary DC power for camera accessories .
Two-pin (D-TAP) & four-pin (XLR) DC sockets provide up to 50 watts of power from an attached lithium-ion battery.
Creative & Operational Versatility with a wide range of these optional accessories also available:
Full-HD Multicore Studio System
5-inch HD Color LCD Viewfinder
Zoom & Focus Demand Controls.
In combination with the PMW-300 cameras 24P capability and attractive cost efficiency, all these functionalities make the ST-7S300 the perfect solution for shooting tv series, documentaries, commercials, as well as motion pictures.
