Review Summary
Up to 5 feet (MIL-STD-810F Drop Test Compliant)
Down to 33 feet (10m) (JIS Class 8)
Down to -10°C/14°F
Up to 220 pounds-force
7.1 Megapixel (effective), 7.4 Megapixel gross, 1/2.33" CCD
6.7 - 20.1mm (38 - 114mm equivalent in 35mm photography), 10 lenses in 8 groups, 3 aspherical lenses
3x optical + 5x digital; 15 total seamless zoom
f/3.5 - f/5.0
2.5" (6.4cm) HyperCrystal LCD (approx. 230, 000 pixels)
CCD Contrast Detection
Normal Mode: 19.7" - infinity (0.5m - infinity)
Macro Mode: Wide: 7.9" - infinity (0.2m - infinity)
Super Macro Mode: 2.8" - 19.7" (7cm - 50cm)
1/1000 sec. - 1/2 sec. (up to 4 sec. in Night Scene Mode)
Auto, 80, 100, 200, 400, 800, 1600
Digital ESP Multi-Pattern, Spot Metering
Auto, Pre-Sets (Sunlight, Overcast, Tungsten and 3 Fluorescents)
Still Image: JPEG
Movie: AVI Motion JPEG
3, 072 x 2, 304, SHQ/HQ
2, 560 x 1, 920, SQ1
2, 304 x 1, 728, SQ1
2, 048 x 1, 536, SQ1
1, 600 x 1, 200, SQ2
1, 280 x 960, SQ2
1, 024 x 768, SQ2
640 x 480, SQ2
27 Shooting Modes: Auto, Program Auto, Digital Image Stabilization Mode, Scene Preset (Portrait, Landscape, Landscape & Portrait, Night Scene, Night & Portrait, Sport, Indoor, Candle, Self-Portrait, Available Light Portrait, Sunset, Fireworks, Cuisine, Behind Glass, Documents, Auction, Shoot & Select1, Shoot & Select2, Beach & Snow, Under Water Wide1, Under Water Wide2, Under Water Macro, Under Water Snapshot, Movie)
Up to 10 frames automatically stitchable with OLYMPUS Master software when using Olympus brand xD-Picture Card
High speed: 3.5 frames per second up to 12 frames (3MP)
Normal speed: 1.1 frames per second to the card capacity
AVI Movie with Sound: 640x480/15fps, SHQ; 320x240/15fps, HQ; 160x120/15fps, SQ
TruePic TURBO Image Processor
Automatic Pixel Mapping (APM) available via menu setting
Night Scene, Night + Portrait, Candle, Available Light Portrait, Sunset, Fireworks
Still Image: Single, Index display (4/9/16/25), Up to 10x Enlargement, Slideshow, Rotation, Calendar, My Favorites Movie: Normal, Fast-Forward, Reverse, Frame-by-Frame
Still Image: Red-Eye Fix, Black & White, Sepia, Resize, Brightness, Saturation, Frame, Title, Calendar
PictBridge and DPOF
Built-in
Auto, Red-Eye Reduction, Fill-In, Off
Wide: 12.5 ft. (3.8m), Tele: 8.5 ft. (2.6m)
12 Seconds/Auto
On (stores changes) / Off (restores default settings)
Automatically recorded with each image (up to 2099)
18MB internal memory
xD-Picture Card (16, 32, 64, 128, 256, 512MB, 1GB or 2GB)
Multi-terminal (USB connecter, Audio/Video output, DC input*) *Optional connector is required.
2.0 Full Speed (USB mass storage)
Auto-connect USB: Windows 98SE/ME/2000PRO/XP/VISTA with USB port, Mac OS 9.0-9.2x/OS X 10.1-10.4 with USB port. Software: Windows 2000PRO/XP/VISTA, Mac 10.3 and higher
Operation: 14° - 104°F (-10° - 40°C), 30% - 90% humidity Storage: -4° - 140°F (-20° - 60°C), 10% - 90% humidity
Lithium Ion Rechargeable Battery (LI-42B), AC Adapter (E-7AC) with optional CB-MA1 DC coupler
3.6" W x 2.3" H x 0.8" D (91.8mm x 59.2mm x 20.6mm)
5.5oz. (155g) without battery and media card
Olympus 1 year warranty

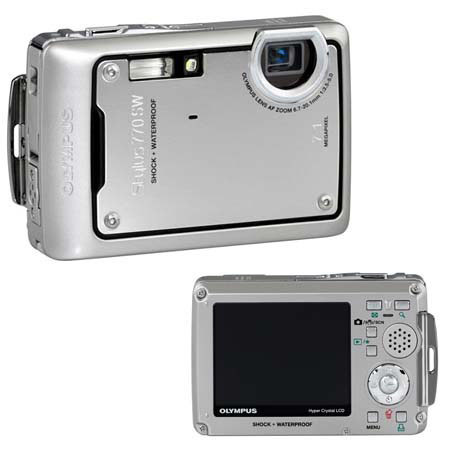

The Olympus Stylus 770 SW is the world's most durable digital camera. This camera is Shockproof designed to withstand a five-foot drop, bump, or other mishap. This camera is waterproof down to a depth of 33 feet (10m), Freezeproof down to -10°C or 14°F, and Crushproof to withstand up to 220 lbs. of pressure.
This camera features a bright 2.5" Hyper crystal LCD so that you can easily compose, view and share your images underwater or in direct sunlight. Digital Image Stabilization (DIS) helps to create sharp, blur-free pictures, even if the subject is moving. It has 27 Shooting Modes, including movie with sound that allow you to master any shooting situation. The Stylus 770 SW features a built-in manometer that measures air and water pressure and calculates the altitude and depth of your photos.
