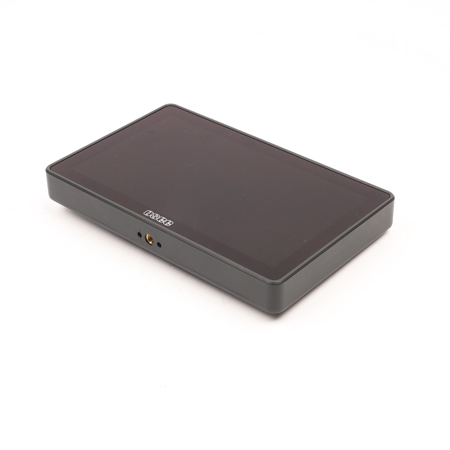

Used Osee G7 Pro 7" Full HD Touchscreen Camera Control Field LCD Monitor, Supports 3G-SDI/4K HDMI

SKU: VDMOSG7PRO
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Osee G7 Pro Specifications

  • Color

    Black

  • Panel Size

    6.97" (17cm)

  • Brightness

    3000 nits

  • Resolution

    1920x1080 Full HD

  • Color Depth

    10 bits

  • Contrast

    1300:1

  • SDI Format

    2K (2048x1080): 23.98/24/25/29.97/30/50/59.94/60P, 23.98/24/25/29.97/30Psf
    HD (1920x1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60P
    HD (1280x720): 50/59.94/60P

  • HDMI Format

    4K (4096x2160): 23.98/24/25/29.97/30P
    UHD (3840x2160): 23.98/24/25/29.97/30P
    2K (2048x1080): 23.98/24/25/50
    HD (1920x1080): 23.98/24/25/29.97/30/50/59.94/60P, 50/59.94/60P
    HD (1280x720): 50/59.94/60P

  • Other

    SD card slot x1: 3D-LUT upload, firmware upgrade
    USB Type-C x1: camera control, power the camera with on-monitor NPF battery, power the monitor by external USB-PD, internal color calibration via x-rite i1 display pro
    3.5mm mini jack: headphone

  • 3D-LUT, Camera Log

    10 User 3D LUTs; Standard Log: 2.2, 2.4, HLG, PQ; ARRI Log C; BMD Film, 4K Film, 4.6K Film; Canon C Log, C Log2, C Log3; Fuji F-LOG; Nikon N-LOG; Panasonic V-LOG; RED Log3G12, Log3G10, RedLogfilm; Sony S-Log, S-Log 2, S-Log 3; DCI 2.6

  • Power Supply

    7-16V DC input with D-Tap to DC cable, USB-PD, NPF battery

  • Power Consumption

    16W typically at maximum brightness

  • Framing & Exposure Tools

    Aspect, Safe, Center, Crosshatch, Anamorphic; False Color, Zebra, Waveform, Vector, Histogram

  • Focus Tools and More

    Focus Assist, Peaking; DE-LOG, MULTI-SCOPES, Display Rotate, Audio Meter (Only SDI), Time Code (Only SDI)

  • Supported Camera Models

    EOS R6 II/EOS R6/EOS R8/EOS 5D Mark IV/LUMIX GH5S/LUMIX GH6/ LUMIX S5/LUMIX S5 II or S5 II X/A7 IV/A6400/ZV-E10M2/FX3/E2/E2C II/X-T5/X-S20

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Weight

    14.8 oz (420g)

About Osee G7 Pro 7" Full HD Touchscreen Camera Control Field LCD Monitor, Supports 3G-SDI/4K HDMI

Touch Control Your Camera
After connected by Type-C cable, you can control your camera on this camera field monitor (Note: Camera control can only be enabled when the monitor is powered by NP-F battery), to shoot or record, support WB/ ISO/ Aperture/ Shutter Speed/ Record (Shoot)/ Touch Focus, one-click to switcher between camera and monitor, release your hands and eyes. (Camera control function could only support EOS R5 II/EOS R6 II/ EOS R6/ EOS R8/ EOS 5D Mark IV/ A7 IV/ZV-E10M2/ FX3/ Z9/ Z6 III/ Z6 II/ Z6/ GFX100 II/ X-H2/ X-H2S/ X-T5/ X-S20/ LUMIX GH5S/ LUMIX GH6/ LUMIX S5/ LUMIX S5 II/ E2/ E2C, more supported models is gradually improving)

Touch to Focus & Dynamic Focus Tracking
Allows photo capture triggering directly from the G7 Pro's touchscreen (please confirm your camera is supported), and the focus frame will be dynamic tracking. This is particularly useful when shooting multiple exposures for HDR bracketing, focus stacking, or similar workflows.

Analysis Mode & Up to 10 3D-Luts
Monitor using the waveform, histogram & vectorscope tools simultaneously, customizable false color and 8 preview MySets, greatly improve your work efficiency. The precise 3D-LUT reproduction can display fine skin tone and HDR footage, 22-bit internal processing provides 18 stops of dynamic range.

Even Brighter & Higher Contrast
Upgrade 3000nits high brightness camera monitor screen, perfect for outside filming, no need sunshade hood. New IPS technology coupled with reflection reduce coating, greatly increases the perceivable contrast ratio to 1300:1, maximized preserve the clarity and intricate details.

Flexible Power Supply & New UI
With the battery you can power both the monitor and camera(battery not included), you can also power the external camera monitor by D-tap or Type-C cable. Osee had optimized the UI logic and reorganized the function layout for the system of G7 Pro 4k camera monitor, greatly improve the UI experience.

Osee G7 Pro 7" Full HD Touchscreen Camera Control Field LCD Monitor, Supports 3G-SDI/4K HDMI Features

  • 7" 3000nits 3G-SDI Camera Control Monitor
  • The monitor can be powered by NP-F battery, D-tap, or Type-C
  • Shock Resist Rugged Frame
  • The touch screen is made of high-aluminum silicate glass
  • The internal die-cast aero aluminum plate provides the strongest support and effective heat dissipation
  • A silent fan with a temperature sensor achieves the best balance between noise and heat
  • There will be 8 MySets workflow, you can set up functions in advance in each workflow

Key Features

  • Experience superior clarity with this 7" Full HD field monitor's 1920x1080 resolution.
  • Achieve perfect focus with integrated focus assist and peaking tools on this LCD monitor.
  • Enjoy vibrant colors and accurate monitoring with 10 user 3D LUTs for professional use.
  • Control your camera directly from the monitor via USB-C for streamlined operation.
  • This 3000 nit touchscreen monitor offers exceptional visibility, even in bright sunlight.
  • Supports 3G-SDI and 4K HDMI, ensuring compatibility with a range of cameras and devices.
