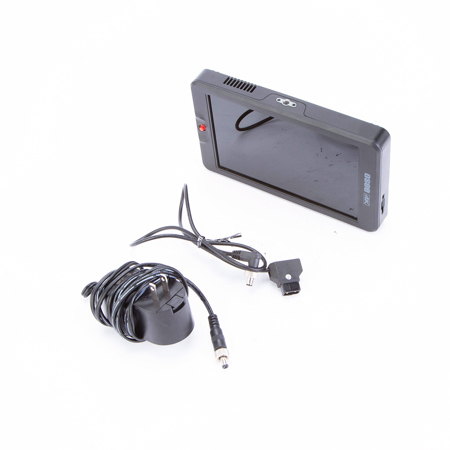

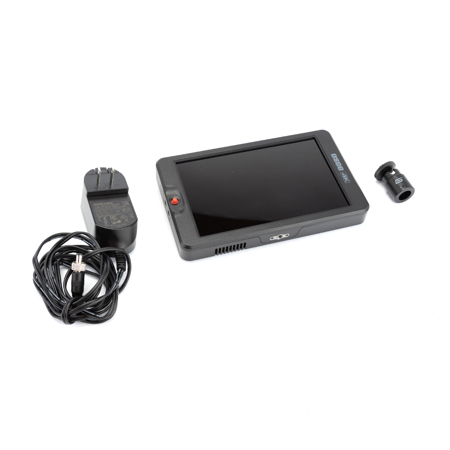

Used Osee T7 7" Full HD Ultrabright HDR On-Camera Field Monitor, Supports 4K HDMI

SKU: US1963698 MFR: T7

This item is no longer available.

Overview
Compare
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Osee T7 Specifications

Display

Display

Jump to...
  • Panel Type

    LCD

  • Display Size

    7" (17.8cm)

  • Native Resolution

    1920 x 1080 FHD

  • Aspect Ratio

    16:10

  • Viewing Angle

    Horizontal: 160 Degree
    Vertical: 160 Degree

  • Touchscreen

    No

  • Maximum Brightness

    3000 nits / cd/ sq. m

  • Contrast Ratio

    1200:1

  • Color Support

    16.7 Million Colors (8-Bit)

  • HDR Support

    Yes

  • Color Gamut

    100% Rec. 709

  • Image Controls

    Focus Assist, Focus Peaking, Histogram, Vectorscope, Waveform, Zebra

Inputs/Outputs

Jump to...
  • Video I/O

    1x HDMI 1.4 Input
    1x HDMI 1.4 Output

  • Audio I/O

    1x 1/8" / 3.5 mm Headphone Output

  • Built-In Speaker

    Mono

  • Power I/O

    1x Barrel Input

  • Other I/O

    1x 2.5 mm (Camera Control)

  • Media/Memory Card Slot

    Single Slot: SD/SDHC (16 GB Maximum / LUT/Firmware Update Only)

  • Wi-Fi

    No

  • Bluetooth

    No

  • Mobile App Compatible

    No

Format Support

Jump to...
  • Video Format

    HDMI:
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    480p: 60
    576p: 50

  • Gamma Curve

    ARRI Log C, Canon Log 2, Canon Log 3, JVC J-Log, Panasonic V-Log, Rec709, REDlogFilm, Sony S-Log 2, Sony S-Log 3

  • Input Power

    11 to 17 VDC

  • Battery

    1x L-Series Mount on Fixed Plate

  • Power Consumption

    16.2 W

Mounting

Jump to...
  • Tripod/Accessory Mounting

    Bottom/Right
    1x ARRI Anti-Twist 1/4"-20

Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

General

Jump to...
  • Operating Conditions

    32 to 122 Degree F (0 to 50 Degree C)

  • Material

    Aluminum, Polycarbonate

  • Dimensions

    7.6 x 4.6 x 1" (192 x 116.3 x 24.7mm)

  • Weight

    15.45 oz (438g)

Related Articles & Videos

Top Must-Have Landscape Photography Gear

Top Must-Have Landscape Photography Gear

Outdoor and landscape photography can be one of the most rewarding and exciting types of photography to get into. The bad news is that shooting in the outdoors can mean constant exposure to weather, environments, and elements that make photography much more tricky. But if you are serious about outdo...
Read more

About Osee T7 7" Full HD Ultrabright HDR On-Camera Field Monitor, Supports 4K HDMI

Ultra Bright Screen with Excellent Image Quality
With the super 3000 nits brightness, you may not even need sun hood when shooting under strong daylight. Plus all T7 monitors are calibrated before shipping and have full manual calibration controls built in software for user adjustment.

Accurate Video Assisting Tools
T7 has a full set of image assisting tools to help you nailing framing, exposure, focus and audio. It also supports realtime LUT preview for shooting LOG, you can add your favorite custom LUT via SD card.

Great Portability and Sturdiness
7 inch is the best solution for satisfying the need for portability and detail viewing. T7 weighs only 438g without battery, reducing the overall burden for your camera setup. Meanwhile, with a built-in aluminum sheet and metal screw holes, it's also steady and robust enough for varied on set environment.

Flexible Power Solution
T7 has both Sony NP-F battery slot and DC in port, with the AC to DC power adapter and D-tap to lockable pole DC cable, you can power T7 through small/large capacity battery and AC power.

Convenient and Clean Operation
T7's scene style Ul allows user building up to 8 scenes containing different tools for various monitoring situation, after presetting these scenes, all you need to do on set is switching scenes. T7 uses one single joystick to navigate through menus, so you will have a clean screen, no need to constantly wiping fingerprints anymore.

Osee T7 7" Full HD Ultrabright HDR On-Camera Field Monitor, Supports 4K HDMI Features

  • 3000-nit brightness for clear visibility even in direct sunlight
  • Full image assisting tools with real-time LUT preview and custom LUT support
  • Portable 7" display, weighing only 438g for easy camera setup
  • Flexible power options with Sony NP-F battery, DC input, and AC/DC adapters
  • Clean operation with scene presets and a single joystick for easy navigation

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Experience vibrant clarity with the Osee T7's 7" Full HD on-camera field monitor.
  • Get accurate colors! This field monitor supports 100% Rec. 709 color gamut for pro results.
  • Shoot confidently with the ultrabright 3000 nit display, perfect for outdoor shooting.
  • Supports 4K HDMI input, ensuring compatibility with a wide range of cameras.
  • Utilize focus assist, waveform, and other image controls for precise monitoring.
  • Mount easily using the 1/4"-20 mounts; this monitor is lightweight at only 15.45 oz.
