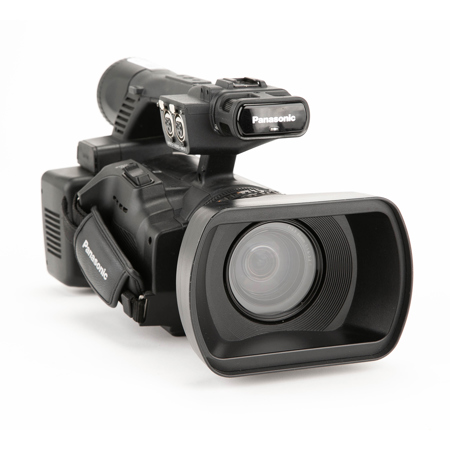

Picture does not represent the actual item
See what's in the box

See all Panasonic items

Used Panasonic AG-AC160 2.2MP AVCCAM HD Hand-Held Camcorder (4681 Hours)

SKU: US1776517

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2012-07-06T21:00:00

Rated 5 out of 5

AG-AC160 : one phenomenal camera

The AG-AC160 is just a tremendously versatile conventional HD video camera. Relatively lightweight, ridiculously long zoom range, and records to convenient SDXC memory cards. The menu system is a bit clumsy; a touchscreen would be a welcome feature. Audio via the onboard mic is great. Video quality is really good for 1/3" chip camera. There is a free firmware update to unlock 1080/60p recording which is super useful for overcranking. Probably one of the only camera in this price point aside from the Sony NEX to offer 1080/60p. Autofocus is a little slow at times, especially when zoomed in. However, it should be expected when your zoom range is 22x! With all of the outputs on this guy, it makes a perfect run-and-gun, documentary, or reality show camera. Overall, I'm just really happy with this camera and highly recommend it!

Dan G.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Panasonic AG-AC160 Specifications

  • Image Device

    3x 1/3-type progressive 2.2 Mp CMOS
    Prism color separation

  • Lens

    22x optical zoom
    2x, 5x, 10x digital zoom
    3.9-86mm (28-616mm 35mm equivalent)
    f/1.6-3.2
    18 elements in 12 groups

  • Minimum Object Distance (M.O.D.)

    Approx. 3.3' (1 m)

  • Filter Diameter

    72mm

  • Minimum Illumination

    0.4 lux (f/1.6, gain +30 dB, shutter speed 1/30 second)

  • Signal System

    NTSC, PAL

  • Built-in Filters

    ND filter: OFF, 1/4, 1/16, 1/64

  • LCD Monitor

    3.45" (87.63mm) color LCD monitor with approx. 921K dots (16:9)

  • Viewfinder

    0.45" (11.43mm) color LCoS monitor with approx. 1226K dots (16:9)

  • Memory Card Slot

    2x SD/SDHC/SDXC slots

  • Shutter Speed

    60i mode: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 second
    30p mode: 1/30, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second
    24p mode: 1/24, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second
    50i/50p modes: 50i/50p: 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second
    25p: 1/25, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 second

  • Slow Shutter

    60i mode: 1/8, 1/15, 1/30 second
    30p mode: 1/8, 1/15 second
    24p mode: 1/6, 1/12 second
    50i/50p mode: 1/6, 1/12, 1/25 second
    25p mode: 1/6, 1/12 second

  • Synchro Scan Shutter

    60i mode: 1/60.0 to 1/249.8 second
    30p mode: 1/30.0 to 1/249.8 second
    24p mode: 1/24.0 to 1/249.8 second
    50i/50p mode: 1/50.0 to 1/250.0 second
    25p mode: 1/25.0 to 1/250.0 second

  • Shutter Opening Angle

    3-359.5 Deg. in 0.5 Deg. increments

  • Frame Rates

    24, 30, 60 fps
    Variable Frame Rates:
    1080/24p, 1080/30p: 2, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, 60 fps
    1080/25p: 2, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, 50 fps

  • Gain Selection

    0/+3/+6/+9/+12/+15/+18/+24/+30 dB (+24 dB, +30 dB: USER button S.GAIN only)

  • Recording Media

    SD memory card (FAT12, FAT16 formats supported): 512 MB, 1 GB, up to 2 GB
    SDHC memory card (FAT32 format supported): 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 32 GB
    SDXC memory card (exFAT format supported): 48 GB, 64 GB (up to 2 TB)

  • Recording Formats

    AVCHD standard (MPEG-4 AVC/H.264), DV standard (AVI Type2)

  • Maximum Recording Time

    With 2x 64 GB SDXC cards: Approx. 12 hours in PH (highest-quality AVCHD); 48 hours in HE mode (lowest-quality AVCHD); 8.5 hours in DV mode

  • Video Signals

    PH mode: 1080/59.94i, 1080/50i, 1080/29.97p, 1080/25p, 1080/23.98pN, 720/59.94p, 720/50p, 720/29.97p, 720/25p, 720/23.98pN
    PM mode: 720/59.94p, 720/50p
    HA/HE mode: 1080/59.94i, 1080/50i
    DV mode: 576/50i, 576/25p, 480/59.94i, 480/29.97p, 480/23.98p

  • Sampling Frequency

    4:2:0 (AVCHD)
    4:1:1 (DV)

  • Video Compression

    MPEG-4 AVC/H.264 (AVCHD)
    DV (DV)

  • Video Bitrates

    PH mode: Approx. 21 Mb/s (VBR)
    PM mode: Approx. 8 Mb/s (VBR)
    HA mode: Approx. 17 Mb/s (VBR)
    HE mode: Approx. 6 Mb/s (VBR)

  • Interval Recording

    1 sec / 10 sec / 30 sec / 1 min / 2 min interval, maximum 168 hours (1 week) recording (PH 1080/24p mode is fixed)

  • Audio Signal

    Dolby Digital 2-channel and 48 kHz/16-bit, Linear PCM 2-channel (switchable in PH mode of AVCHD)
    Dolby Digital 2-channel (PM/HA/HE modes of AVCHD)
    48 kHz/16-bit, Linear PCM 2-channel (DV)

  • Audio Bitrates

    PH mode: 384 kb/s
    PM/HA/HE mode: 256 kb/s

  • Speaker

    1x 20mm diameter

  • Video Outputs

    SDI: 1x BNC, 0.8 V [p-p], 75 ohm, HD/SD switchable
    HDMI: 1x HDMI Type A, VIERA Link not supported
    Composite Video: 1x Pin jack, 1.0 V [p-p], 75 ohm

  • Audio Input

    2x XLR 3-pin (input 1, input 2)
    Line/Mic/+48V switchable
    Line: 0 dBu
    Mic: -40 dBu / -50 dBu / -60 dBu switching via menu
    Built-in Mic In supports stereo microphones

  • Audio Output

    2x pin jack (channel 1 / channel 2), 316mV, 600 ohm output
    1x 3.5mm diameter stereo mini jack for headphones
    Via HDMI: 2-channel (linear PCM) & 5.1-channel (Dolby Digital)

  • Other I/O Connections

    Time Code Preset In/Out: Via Composite Video Out dual-purpose (In: 1V [p-p] to 4V [p-p], 10 k-ohm; Out: Low-impedance, 2.0+/-0.5V [p-p])
    Camera Remote: 1x 2.5mm diameter super mini jack (zoom, shutter speed); 1x 3.5mm diameter mini jack (focus, iris)
    Index Remote: 1x 2.5mm diameter super mini jack
    IEEE 1394: 1x 6-pin, digital output only
    USB 2.0 (Device): 1x Type Mini B, 4-pin USB 2.0

  • Power Requirements

    7.2V DC via battery
    7.3V DC via AC adapter

  • Power Consumption

    11.8W when recording

  • Operating Temperature

    0 to 40 Deg.C (32 to 104 Deg.F)

  • Operating Humidity

    10-80% (no condensation)

  • Dimensions (W x H x D)

    7 x 7.69 x 17.25" (180 x 195 x 438mm) excluding protrusions

  • Weight

    5.3 lb (2.4 kg) excluding battery and accessories

About Panasonic AG-AC160 2.2MP AVCCAM HD Camcorder (4681 Hours) - SKU#1776517

FEATURED REVIEWS

AG-AC160 : one phenomenal camera

By Dan G.

The AG-AC160 is just a tremendously versatile conventional HD video camera. Relatively lightweight, ridiculously long zoom range, and records to convenient SDXC memory cards. The menu system is a bit clumsy; a touchscreen would be a welcome feature. Audio via the onboard mic is great. Video quality is really good for 1/3" chip camera. There is a free firmware update to unlock 1080/60p recording which is super useful for overcranking. Probably one of the only camera in this price po...

View full Review

The Panasonic AG-AC160 AVCCAM HD Handheld Camcorder that integrates seamlessly with a wide range of current broadcast video systems in place around the world. Featuring an integrated 22x zoom lens and a 1/3-type 3MOS three-element imager, the AVCCAM model captures AVCHD video to two SD/SDHC/SDxC card slots as 1080p30, 1080i60, filmic 1080p24 and 720p60. But that's not it for frame rates: for creative slow-/fast-motion effects, overcranking and undercranking are possible at a variety of rates between 2 and 60 frames per second. For worldwide compatibility, the AG-AC160 also captures a variety of 50 Hz video signals for easy integration with PAL projects and video systems.

For projects that require standard-def capture, the AC160 has you covered with DV recording, which can then be output via its 6-pin IEEE 1394 (FireWire) port. For high-def output, the HD-SDI terminal puts out HD signals including 1920 x 1080 at 24PsF. The AG-AC160 offers a bevy of other professional-level features, including dual xLRs with phantom power, SMPTE time-code generation, gamma settings for seven different scenarios and manual control rings for iris, zoom and focus. To monitor the status of all settings and to perform critical focusing functions, the AVCCAM camcorder features both a high-quality 3.45" LCD screen and a full-color LCoS 0.45" viewfinder with 1,226,000 dots (852 x 480 x 3 [RGB]) of resolution.

Panasonic AG-AC160 2.2MP AVCCAM HD Camcorder (4681 Hours) - SKU#1776517 Features

  • Panasonic Optical Technology: The high-performance 22x zoom lens was designed specifically for professional HD video production. Sharing the wide-angle capability found in the DVX and HMC series, the lens offers some additional telephoto capability for a 28-616mm (35mm equivalent) zoom range
  • Manual Control Rings: Three manual rings - mechanical (cam-driven) zoom, focus and iris - allow you to operate as if you've got an interchangeable-lens camcorder, for fine, tactile control over the parameters of the captured image
  • Optical Image Stabilization: To compensate for any shaking of the operator's hand, the AC160 features an optical image stabilizer (OIS)
  • High-Sensitivity, Low-Noise 3MOS Image Sensor: The 1/3-type 2.2 Mp 3MOS sensor features the same Ultra Luminance Technology (ULT) that's incorporated in Panasonic's shoulder-mount P2 HD broadcast camcorders
  • Digital Zoom: This can be assigned to a user button for digital zooms of 2x, 5x and 10x. In combination with the optical zoom, this function provides a telephoto capability up to 220x
  • ND Filter: The AG-AC160 features a four-position (OFF, 1/4 ND, 1/16 ND, 1/64 ND) optical neutral density filter wheel
  • Dynamic Range Stretch (DRS): DRS estimates a gamma curve and knee slope to match the contrast of each pixel and applies them in real time, producing excellent gradation for each shade and minimizing blocked shadows and blown highlights
  • Three-Position Gain Selection: There is a 3-position gain selector, with L, M and H settings. To each setting you can assign a gain value of 0, +3, +6, +9, +12 and +18 dB. There is also a Super Gain of +24 dB and +30 dB, accessible via a user button only
  • Focus Assist Function: A Focus Bar that indicates the focus level can be displayed on the LCD and the focus-in-red display shows the focus area. These two display functions help you to focus quickly and accurately
  • High-Quality, Multi-Format Professional AVCHD PH Mode: The AG-AC160 uses the AVCHD recording format and also supports the high-image-quality PH mode. AVCHD complies with MPEG-4 AVC/H.264 High Profile motion-picture compression technology
  • DV Recording Mode: The camera records SD video as a DV-format file (AVI Type 2) for added flexibility. Standard DV output (FireWire/IEEE 1394) lets you ingest files to a PC or Mac
  • Simplified Waveform & Vectorscope: The AG-AC160 has waveform and vectorscope display functions for analyzing a captured video signal on the LCD
  • Three User Buttons: A total of three user buttons can be set to trigger any selection of 16 different camera functions: INH, FACE DETECT, WFM, EVF DTL, D.ZOOM, DRS, S.GAIN, ATW, ATW LOCK, SHOT MARK, INDEX, LAST CLIP, BACKLIGHT, SPOTLIGHT, BLACKFADE and last but not least, WHITEFADE
  • High-Quality Color Viewfinder and LCD: The AG-AC160's color EVF uses a 0.45", approximately 1,226,000 dot-equivalent (852 x 480 x 3 [RGB]) LCoS (liquid crystal on silicon) display panel. It delivers bright, detailed, high-resolution images and a high response speed
  • Stylish Design Boosts Mobility: Shifting the handle grip and LCD position forward (toward the lens) compared to the design of previous generations has improved the weight balance and visibility for handheld shooting, enabling a comfortably wide view
  • XLR Input for Pro-Quality Audio: The AG-AC160 comes equipped with two-channel XLR audio input terminals with a 48V phantom power supply. The internal microphone, external microphone, or line input can be selected for each channel. Large, easy-to-use level dials are also provided
  • HDMI Digital HD Output Terminal: The AG-AC160 is equipped with an HDMI output terminal for digital transfer of high-quality HD video and audio signals
  • Down-Converted SD Video Output: The AG-AC160 has an internal down-converter so it can output SD (480/576) signals from VIDEO OUT or HDMI (progressive only). The 16:9/4:3 aspect conversion mode can be selected from three types (side crop, letterbox, squeeze)
  • Workflow Versatility: The Panasonic AVCCAM family enables tapeless recording, which means faster-than-real-time transfers to Windows & Mac computers for nonlinear editing - whether via a USB 2.0 connection or by offloading SD/SDHC/SDXC cards via a card reader
  • Low-Angle Shots and Interviews: The upper part of the handle grip contains both the Rec Start/Stop button and a lens zoom speed control (three speeds). This design assures easy shooting even at low angles
  • Zebra: Select any two zebra levels from 50% to 105% (in 5% steps)
  • USB 2.0: The type mini-B USB port allows for connection to a PC in device mode
  • Remote Terminal: Enables remote operation of iris, focus, Rec Start/Stop and index functions
  • Color Bar: Outputs a color bar signal and test tone
  • Tally Lamps: Tally lamps are provided on the front and rear of the AC160

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic AG-AC160 AVCCAM HD Hand-Held Camcorder
  • Lens Hood
  • VW-VBG6 Rechargeable Li-Ion Battery
  • Aftermarket Battery Charger
  • Body Cap
  • Firmware: V1.09-00-0.00
  • Item Note: Missing AC Adapter; AC Cord; DC Cord; Wireless Remote Controller with Battery; Microphone Holder; Eye Cup; Shoulder Strap; CD ROM
