Panasonic AG-DVC200 1/2" 3-CCD DV PROLINE Camcorder - (630 Hours) SKU#1631702 Specifications

  • Audio/Video

    48 KHz, 16 bits/sample 32 KHz, 12 bits/sample Frequency Response: 20 Hz to 20 kHz (48 KHz sampling)
    Component Digital Resolution 800 lines, 62 dB SN and very low smear
    Horizontal Resolution: 800 lines (center) Vertical Resolution: 400 lines/450 lines (Super-V)
    Y: 13.5 MHz, C (PB/PR): 3.375 MHz 8 bits/sample Reed-Solomon Code Y: 30 Hz to 5.75MHz +1.0/-3 dB

  • Television System

    NTSC Color

  • Tape Format/Speed

    Large DV
    SP - 18.812 mm/sec.

  • Image Sensor

    1/2" 410,000 pixel IT 3-CCD

  • Optical Zoom

    na

  • Digital Zoom

    na

  • Lens

    1/2" Bayonet Mount

  • Focusing System

    na

  • Min. Focus Distance

    na

  • Shutter Speed

    1/100, 1/120 1/250, 1/500, 1/1000, 1/2000-sec.

  • Illumination

    f/11 at 2000 lux
    Minimum Luminance 0.5 lux

  • Filter Size

    3200K, 5600K+1/8ND, 5600K,5600K+1/64ND
    ND/CC combination, 4 position

  • Viewfinder

    1.5" Monochrome opt.

  • LCD Screen

    na

  • Manual Controls

    na

  • Special Effects

    na

  • Fader

    na

  • Titler

    na

  • A/V Dubbing

    Lossless dubbing to DV recorder

  • Input terminals

    Mic In: XLR balanced, -60/-50/-40 dBu selectable
    Audio In : XLR (CH1/CH2), balanced, MIC/LINE Switchable
    MIC: -60/-50/-40 dBu selectable,
    LINE: +4/0/-6 dBu selectable
    Genlock: BNC

  • Output terminals

    Camera Out: BNC x 1, 1.0 Vp-p 75?
    Video Out: BNC x 1, 1.0 Vp-p 75?
    Audio Out: RCA x 2
    S-Video Out: 4 pin x 1

  • Digital Photo Mode

    na

  • Microphone

    Mic In XLR x 2

  • Headphone Jack

    Stereo 3.5 mm x 1

  • Flash

    na

  • Built-In Light

    na

  • Power Requirements

    12 VDC (10.5 to 17 V) 18 Watts

  • Dimensions

    na

  • Weight

    Approx. 11 lbs. (5 kg) range including lens, viewfinder, tape, and battery pack

  • Special Features

    Other Connections: IEEE1394 4-pin x 1
    LENS: 12-pin
    DC In: XLR x 1
    DC Out: 4P x 1

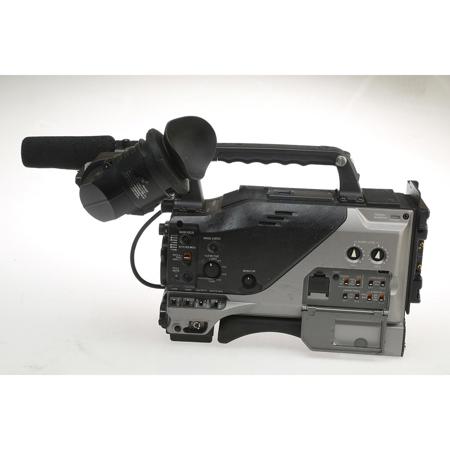

About Panasonic AG-DVC200 1/2" 3-CCD DV PROLINE Camcorder - (630 Hours) SKU#1631702

The AG-DVC200 digital camera/recorder combines the extended recording time of the DV format with professional picture quality and a host of functions. Designed for a wide array of uses, the camera section of the AG-DVC200 features a 1/2-inch interchangeable bayonet mount lens. Its digital processing and three 410,000-pixel IT CCDs team up to deliver superior picture quality with 800 lines of horizontal resolution, high sensitivity and low smear. The VTR section accepts standard DV cassettes for up to 276 minutes of recording. Equipped with an IEEE1394 Input/Output terminal (i-Link/ Firewire), the AG-DVC200 lets you upload picture and sound data to a PC, or digitally dub onto a DV recorder. This superb digital performance and extended recording capability make the AG-DVC200 especially well suited for weddings, sports and other feature-length events.

DV 276 min. Recording Time Using a standard DV cassette permits the AG-DVC200 to record for a full 276 minutes without changing cassettes. The AG-DVC200 also provides outstanding digital picture quality, plus superb digital audio with either 16-bit, 48-kHz sound or 12-bit, 32-kHz sound.

Equipped with three broadcast-type 1/2-inch 410,000-pixel IT (Interline Transfer) CCDs, the AG-DVC200 provides outstanding picture quality, with 800 lines of horizontal resolution, a S/N ratio of 62 dB, and very low smear.

The industry-standard 1/2-inch bayonet mount readily accommodates the many lenses that are available on the market. For superior ease of use, the AG-DVC200 features automatic white shading correction, which adjusts the settings to match the lens.

The AG-DVC200's CCD with on-chip lens and +36 dB gain-up allows high-quality shooting in lighting all the way down to 0.5 lux. This allows capture of clear images even under dim lighting conditions.

Digital circuitry enables a host of creative image-processing functions, including Black Stretch/Press, Auto Knee, Gamma, Skin Detail, Coring and Color Effect.

Panasonic AG-DVC200 1/2" 3-CCD DV PROLINE Camcorder - (630 Hours) SKU#1631702 Features

  • 1/2" 410,000 Pixels IT 3-CCD
  • First 1/2" camcorder to record on large DV tape
  • Ideal for multimedia production, newsgathering, business and education uses
  • Over 4 hours of digital component recording on large DV Tape
  • Resolution 800 lines, 62 dB SN and very low smear
  • Interchangeable 1/2" bayonet mount lenses
  • Sensitivity F11 @ 2000 lux, minimum .5 lux, +36 dB gain
  • Digital Process: skin detail, black stretch, auto knee, coring
  • Color phase control and color effect
  • IEEE 1394 DV interface (digital input and output)
  • Built-in color bar generator, Anton/Bauer Gold mount
  • 1.5" Monochrome viewfinder (Optional)

What's in the box:

  • AG-VF5P Viewfinder with Eye Cup
  • Shotgun Microphone wuth Windscreen Anton Bauer Gold Mount Battery Plate (Installed)
  • Firmware: 2.06
  • Item Note: Missing Body Cap; Audio Control Cover Door will not latch closed; Rubber on camera body has begun to degrade
  • making it sticky
