Panasonic AG-HPG10 Portable P2 Gear Player/Recorder - SKU#1404473 Specifications

  • Recording Media

    P2 card

  • Recording Format

    1080/60i, 1080/50i, 720/60p, 720/50p (DVCPRO HD)
    480/60i, 576/50i (DVCPRO 50/DVCPRO/DV)
    *60p=59.94p, 60i=59.94i

  • Playback Format

    1080/60i, 1080/30p over 60i, 1080/24p over 60i,
    1080/24pA over 60i, 1080/50i, 1080/25P over 50i
    720/60p, 720/30p over 60p, 720/24p over 60p
    720/30pN, 720/24pN, 720/50p, 720/25p over 50p,720/25pN
    480/60i, 480/30p over 60i, 480/24p over 60i,
    480/24pA over 60i, 576/50i, 576/25p over 50i
    *60p=59.94p, 60i=59.94i, 30p=29.97p, 24p=23.98p,
    pN=recorded by 720p native mode

  • Sampling Frequency

    Y: 74.25 MHz, PB/PR: 37.125 MHz (DVCPRO HD)

  • Quantizing

    8bit (DVCPRO HD)

  • Video Compression Format

    DCT + variable-length code (DVCPRO HD)

  • Video Compression Ratio

    1/6.7 (DVCPRO HD)

  • Video Recording bit Rate

    100 Mbps (DVCPRO HD)

  • HD/SD-SDI Output

    BNC x 1, serial digital component
    HD: SMPTE292M/296M/299M Standard
    SD: SMPTE 259M-C/272M-A, ITU-R BT 656-4 Standard

  • Video Output

    BNC x 1, Composite, 1.0V p-p, (75Ohm)

  • Component Output

    D-connector x 1 (Y/PB/PR), Y:1.0V p-p, (75Ohm)

  • Audio Recording Format

    48 kHz/16-bit, 4CH (DVCPRO HD, DVCPRO 50)
    48 kHz/16-bit, 2CH/4CH (DVCPRO/DV)

  • Sampling Frequency

    48 kHz

  • Quantizing

    16 bits

  • Frequency Response

    20Hz to 20kHz

  • LINE Output

    Pin jack x 2 (CH1 / CH2)

  • Headphones

    Stereo Mini Jack x 1 (3.5 mm diameter)

  • Speaker

    20 mm round x 1 (mono)

  • IEEE 1394 In/Out

    6pin x 1, IEEE 1394a, Digital Interface
    400/200/100 Mbps selectable

  • USB2.0

    Host x 1 (A-type, bus power compatible)
    Device x 1 (B-type)

  • P2 card Slot

    2 slots

  • SD Memory Card Slot

    1 slot (Not supporting Multimedia card)

  • LCD Monitor

    3.5", 210,000 pixels, color LCD

  • Rated Input AC Adaptor

    100V-240V AC, 50/60Hz 24W

  • Rated Output AC Adaptor

    7.9V DC, 1.9A/8.4V DC, 1.2A (for charge)

  • Power Source

    DC7.2V/7.9V

  • Power Consumption

    11W

  • Operating Temperature

    0�C to 40�C (32 �F to 104 �F)

  • Operating Humidity

    10% to 80% (no condensation)

  • Dimensions (W x H x D)

    Recorder: 104 x 83 x 227 mm (4-3/32" x 3-9/32" x 8-15/16", excluding feet)
    AC Adaptor: 70 x 44.5 x 116 mm (2-3/4" x 1-3/4" x 4-9/16")

  • Weight

    Recorder: Approx. 1.1 kilograms (2.42 lbs)
    AC Adaptor: 160 grams (0.35 lbs)

  • Warranty

    Panasonic 5 years warranty (1 year basic + 4 years after online registration)

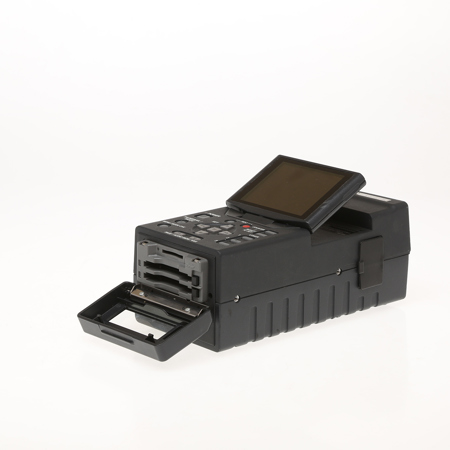

About Panasonic AG-HPG10 Portable P2 Gear Player/Recorder - SKU#1404473

The Panasonic AG-HPG10 P2 Gear is a small, lightweight, battery-powered P2 HD portable recorder/player that's tough enough for rugged field work. With two P2 card slots and a 3.5-inch LCD monitor, P2 Gear allows HD/SD multi-format recording and playback and quick, on-the-spot viewing of P2 content.

You can also use P2 Gear for line recording of IEEE 1394 input, outputting a playback signal to a large monitor, or transferring files to an external hard disk drive or nonlinear editor. Add a camera-recorder such as the AG-HPX500 or AG-HVX200 and the P2 Gear brings greater speed, mobility and flexibility to your P2 workflow.

Panasonic AG-HPG10 Portable P2 Gear Player/Recorder - SKU#1404473 Features

  • Playback and scene clip viewing in 1080i (24p, 24pA, 25p, 30p, 50i, 60i), 720p (24p, 24pN, 25p, 25pN, 30p, 30pN, 50p, 60p), 576i (25p, 50i) and 480i (24p, 24pA, 30p, 60i)
  • Supports down conversion from HD (1080 or 720) to SD (480) and cross-conversion (720 to 1080) for HD transmission
  • Time-saving file management functions including: Clip copy (copy select clips from one P2 card to another in the P2 Gear), Thumbnail image change (by default, the first image in a clip is used as the thumbnail), Clip Metadata Edit, Text Memo and Shot Marker (shot mark specific clips)
  • Plays back variable frame-rate sources (recorded in 720pN mode with the AG-HPX500 or AG-HVX200 P2 HD camcorders)
  • Supports waveform/vector scope display
  • Continuous loop playback function
  • IEEE 1394 and USB 2.0 with host function for PC and Mac connection
  • HD-SDI output
  • Component and Composite video output
  • Audio output (CH1/CH2 pin jacks)
  • Comes standard with AC Adapter AG-B25 and Battery CGAD54SE/1B

What's in the box:

  • Panasonic AG-HPG10 Portable P2 Memory Card Recorder
  • Battery
  • Aftermarket Charger
  • Ver. 1.06-00-0.00
  • Item Note: Device does not playback clips. Missing AC Adapter; Component Video Cable; Software; Cosmetic Condition is 'V'
