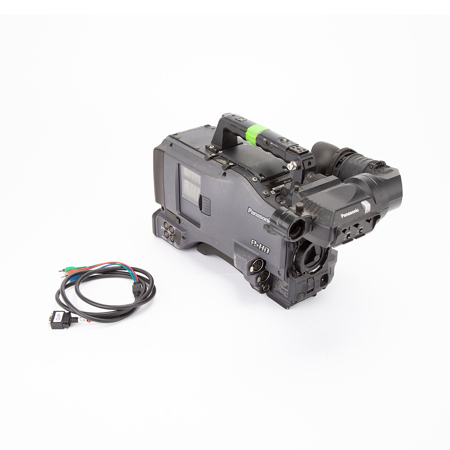

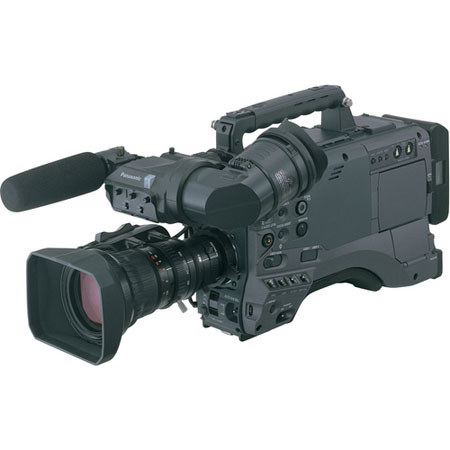

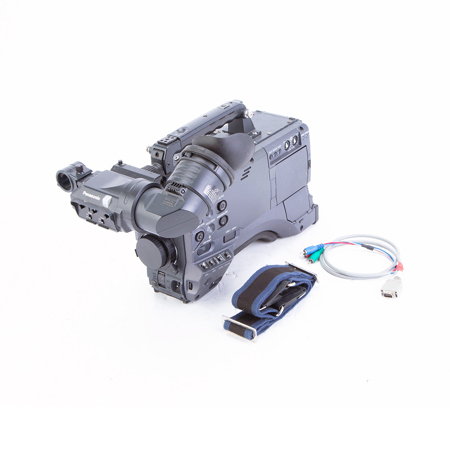

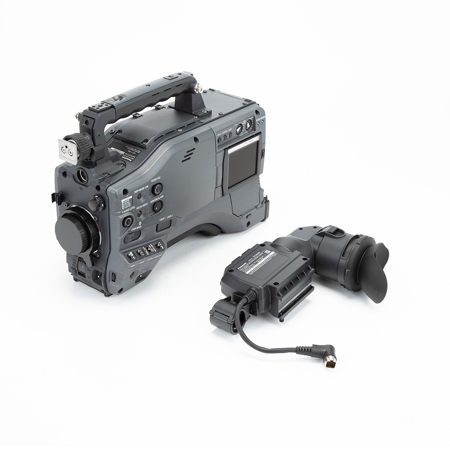

Used Panasonic AG-HPX500 2/3" Shoulder Mounted P2 Camcorder

SKU: US2076277 MFR: AGHPX500PJ
Earn VIP Reward Points

What`s in the box:

    See more

    Key Features

    • P2 Flash Memory Recording Storage
    • High-Quality 2/3 CCDs
    • Advanced Digital Signal Processor
    • DVCPRO HD Codec
    • Professional Camera Features
    • Chromatic Aberration Compensation
    See More Product Details

    INCLUDES FREE WARRANTY

    • This used item comes with a free 180-day warranty. ?
    Overview
    Compare
    Accessories
    Learn
    Specs
    Protection

    Reviews about this item

    Review Summary

    2015-08-02T21:00:00

    Rated 5 out of 5

    Excelent equipment

    I use that equipment in My life production and work great

    CHARLES S.

    Panasonic AG-HPX500 Specifications

    • Signal System

      1080/60i, 30p, 24p
      1080/50i, 25p
      720/60p, 30p, 24p
      720/50p, 25p
      720pN Variable Frame Rates
      60 Hz mode: 12, 18, 20, 22, 24, 26, 30, 32, 36, 48, 60 fps
      50 Hz mode: 12, 18, 20, 23, 25, 27, 30, 32, 37, 48, 50 fps
      NTSC: 480/60i, 30p, 24p
      PAL: 576/50i, 25p

    • Image Device

      2/3" 3CCD

    • Lens

      No

    • Horizontal Resolution

      1080 Lines

    • Sensitivity

      F10 at 2000 lux

    • Built-in Filters

      ND: Clear, 1/4, 1/16, 1/64

    • LCD Monitor

      3.5"

    • Viewfinder

      1.5" CRT B/W, NTSC/PAL Switchable

    • Scan Matching

      Yes, Different Ranges for Different Record Modes

    • Memory Card Slot

      SD Memory Cards for Scene-File Sharing
      4 P2 Card Slots for Video

    • Shutter Speed Range

      1/12 to 1/2000 sec (Range depends on Record Mode)

    • Gain Selection

      0-18 dB Range

    • Audio Signal Format

      16 bit/48kHz Four Channels

    • Audio Frequency Response

      20Hz to 20kHz

    • Input and Output Connectors

      Composite: BNC (x1 Output)
      Component: D4 Terminal (x1 Output)
      SDI/HD-SDI: BNC (x1 Output)
      Timecode: BNC (x1 Input, x1 Output)
      FireWire: 6-Pin
      DC Power: XLR (x1 Input, x1 Output)
      Remote: 10-Pin
      Lens: 12-Pin
      EVF: 20-Pin
      USB 2.0: 4-Pin (Type-B)
      Microphone: XLRx2 (x1 Input)
      Analog Audio: XLRx2 (x1 Input)
      Line Out: Pin Jack
      Headphone: 3.5mm Stereo Mini Jack

    • Power Requirements

      12 VDC (11-17V)

    • Power Consumption

      23W

    • Operating Temperature

      32-104 Deg. F (0-40 Deg. C)

    • Dimensions (W x H x D)

      5.6 x 10.4 x 12.6" (14 x 26.1 x 31.8 cm)

    • Weight

      8.4 lb (3.8 kg)

    Related Articles & Videos

    NAB: 4K Capture, Display Dominate Pro Show

    NAB: 4K Capture, Display Dominate Pro Show

    NAB 2013 Show Coverage. As the NAB 2013 show opens, the ARC (Adorama Rental Company) is there in full force, displaying a wide array of recently-announced pro video and digital cinema cameras, including..

    Read more

    5 Accessories for Panasonic AG-HPX500 2/3" Shoulder Mounted P2 Camcorder

    • All Accessories (5)
    • Cables & Adapters (1)
    • Filters (2)
    • Headphones (1)
    • Microphones & Audio (1)

    About Panasonic AG-HPX500 2/3" Shoulder Mounted P2 Camcorder

    Panasonic AG-HPX500 2/3" Shoulder Mounted P2 Camcorder
    If you’re looking for a camera system that is lightweight enough to be carried virtually anywhere but still conforms to the shoulder-mount form factor that many ENG production pros require, the Panasonic AG-HPX500 offers both form and function. The HPX500 delivers full-HD video thanks to its ?-inch Progressive CCD sensor while its advanced signal processor allows for 14-bit A/D conversion for unbeatable accuracy. Unlike similar priced camcorders, the AG-HPX500 can shoot a variety of standard definition and high definition resolutions, including 720p, 1080i and 1080p. All footage is recorded to the industry-standard DVCPRO, DVCPRO50, DVCPRO HD formats, which can be used in almost every professional editing suite.

    Key Features

    • 2/3" Progressive CCD Sensor captures Full-HD video at 1080/24p and 1080/30p
    • Advanced Signal Processor uses 14-bit A/D conversion and 19-bit inner processing to attain unprecedented accuracy
    • Includes a Panasonic AJ-P2AD1G and a Panasonic AJ-P2M032AG for use with broadcast-standard P2 Flash Memory
    • Wealth of professional inputs including HD-SDI and SDI inputs

    Built for news organizations and freelancers who demand the flexibility of a ?-inch system, the Panasonic AG-HXP500 offers both a familiar form factor coupled with the industry-standard features that allow for ease of use with existing workflows. This bundle includes the Panasonic HXP500 camera body along with Panasonic AJ-P2AD1G and a Panasonic AJ-P2M032AG.

    From the Manufacturer

    The Panasonic AG-HPX500 is a 2/3" CCD high definition camcorder designed for use with the P2 memory-based recording system. The camera truly shines in a wide variety of applications previously only possible on the highest-end Varicam. The unit is lightweight enough to take almost anywhere while still conforming to the shoulder-mounted form factor professionals require. Four P2 slots allow for up to 256 minutes of continuous recording.

    Unlike similar priced camcorders, the AG-HPX500 can shoot a variety of standard definition and high definition resolutions, including 720p, 1080i and 1080p. All footage is recorded to the industry-standard DVCPRO, DVCPRO50, DVCPRO HD formats, which can be used in almost every professional editing suite.

    It Features such as variable frame rates, 60p, chromatic aberration compensation (CAC), cine-like gamma and many others provide limitless possibilities for dramatic, news and sports productions. No matter what the task the AG-HPX500 has it covered.

    Panasonic AG-HPX500 2/3" Shoulder Mounted P2 Camcorder Features

    • P2 Flash Memory Recording Storage: The AG-HPX500 is the first high definition ENG camcorder to feature P2 (professional plug-in) capability. P2 was developed as a recording system for professionals and is widely used amongst broadcasters and independent videographers
    • High-Quality 2/3" CCDs: Borrowing technology from the highly acclaimed AG-SDX900, the AG-HPX500's advanced 2/3" progressive CCDs provide the kind of high sensitivity not available in comparably cameras
    • Advanced Digital Signal Processor: The AG-HPX500 digital signal processor uses 14-bit A/D conversion and 19-bit inner processing to attain unprecedented accuracy. While camera does not record 1080/60p, it is from this capture that all other signals are made, which includes both 1080/24p and 1080/30p
    • DVCPRO HD Codec: Thanks to a low compression ratio at a bit rate of 100 Mbps (1080/59.94i, 720/59.94p) along with the easy-to-edit intraframe compression system, DVCPRO HD is suitable for recording fast-moving subjects with no motion artifacts whatsoever, making it ideal for slow-motion capture
    • Professional Camera Features: The camera features almost every conceivable input, including HD-SDI. Serial Digital Interface (SDI) allows users to output and view digital video without any digital to analog conversion
    • Chromatic Aberration Compensation: Chromatic aberration (CA) usually appears as a hard pink glow at and around high contrast areas and lines. The phenomenon often results from imperfections in the camera lens' optics
    • Super Reliable Work Flow Process: The P2 card is a new solid state recording media that Panasonic developed to bridge the gap between information technology and professional video. About the same size as a PC card, the P2 card stores large amounts of video and audio data in MXF-format files

    Warranty Information

    This used item has a FREE 180-day warranty. See details.

    Key Features

    • P2 Flash Memory Recording Storage
    • High-Quality 2/3 CCDs
    • Advanced Digital Signal Processor
    • DVCPRO HD Codec
    • Professional Camera Features
    • Chromatic Aberration Compensation
