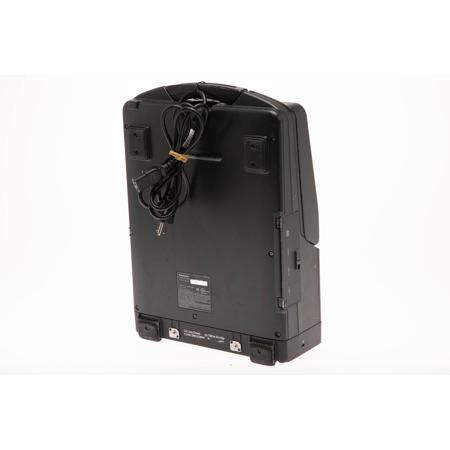

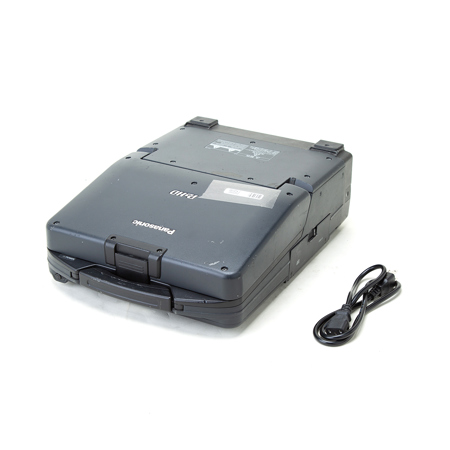

Used Panasonic AJ-HPM200 P2 Mobile AVC-Intra/DVCPRO HD/50/25 P2 HD Recorder/Player with eSata, GigE

SKU: US1659128 MFR: AJ-HPM200PJ
Earn VIP Reward Points

Key Features

  • 10-bit independent frame 4
  • Expanded I/O interfaces
  • RS-422A for remote control operation
  • Built-in waveform monitor
  • Lightweight design folds flat for easy transport & storage
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Panasonic AJ-HPM200 Specifications

  • Recording Format

    AVC-Intra 100/AVC-Intra 50/DVCPRO HD/
    DVCPRO 50/DVCPRO/DV/AVCHD selectable

  • Recording Video Signal

    1080/59.94i, 1080/23.98p, 1080/24p,1080/29.97p,
    1080/25p, 1080/50i,
    720/59.94p, 720/50p, 480/59.94i, 576/50i

  • Recording Audio Signal

    AVC-Intra100/AVC-Intra50/DVCPRO HD: 48 kHz 16 bits 8 CH
    DVCPRO50: 48 kHz 16 bits 4 CH
    DVCPRO/DV: 48 kHz 16 bits 2/4 CH selectable

  • Recording Media

    P2 card

  • Recording Time-AVC-Intra100/DVCPRO HD

    By single card
    64 GB Card 64 min.
    32 GB Card 32 min.
    16 GB Card 16 min.
    Using 6 card slots [AVC-Intra100/DVCPRO HD]
    64 GB Card 384 min.
    32 GB Card 192 min.
    16 GB Card 96 min.

  • Recording Time-AVC-Intra 50/DVCPRO 50

    By single card
    64 GB Card 128 min.
    32 GB Card 64 min.
    16 GB Card 32 min.
    Using 6 card slots [AVC-Intra 50/DVCPRO 50]
    64 GB Card 768 min.
    32 GB Card 384 min.
    16 GB Card 192 min.

  • Recording/Playback Time-DVCPRO/DV

    By single card
    64 GB Card 256 min.
    32 GB Card 128 min.
    16 GB Card 64 min.
    Using 6 card slots [DVCPRO/DV]
    64 GB Card 1,536 min.
    32 GB Card 768 min.
    16 GB Card 384 min.

  • Digital Video - AVC-Intra 100/DVCPRO HD

    Sampling Frequency:
    (59.94 Hz): Y:74.17586 MHz, PB/PR:37.0879 MHz
    (50 Hz): Y:74.2500 MHz, PB/PR:37.1250 MHz
    DVCPRO 50: Y:13.5 MHz, PB/PR:6.75 MHz

  • Digital Video - Quantizing

    AVC-Intra 100/AVC-Intra 50: 10 bits
    DVCPRO HD/DVCPRO 50/DVCPRO/DV: 8 bits

  • Digital Video - Compression Format

    AVC-Intra 100/AVC-Intra 50: H.264/AVC Intra Profile
    DVCPRO HD: DV-Based Compression (SMPTE 370M)
    DVCPRO 50/DVCPRO: DV-Based Compression (SMPTE 314M)
    DV: DV Compression (IEC61834-2)

  • Color Sampling

    AVC-Intra100: Y:PB:PR = 4:2:2

  • Resolution

    AVC-Intra 100:
    1920 x 1080 (1080/59.94i, 1080/50i)
    1280 x 720 (720/59.94p, 720/50p)
    AVC-Intra 50:
    1440 x 1080 (1080/59.94i, 1080/50i)
    960 x 720 (720/59.94p, 720/50p)

  • Analog Composite Input

    BNC x 1 (VIDEO IN), 1.0 V[P-P] (75 ohm )

  • Reference Input

    BNC x 1 (loop-through x 1), Black Burst/HD 3 value SYNC, 75 ohm auto

  • SDI (HD/SD) Input

    BNC x 1, serial digital component
    HD Serial Digital: SMPTE 292M/296M/299M standard
    SD Serial Digital: SMPTE 259M-C/272M-A standard
    ITU-R BT.656-4 standard

  • SD Analog Composite Output

    BNC x 1

  • SDI (HD/SD) Output

    BNC x 1, serial digital component
    HD Serial Digital: SMPTE 292M/296M/299M standard
    SD Serial Digital: SMPTE 259M-C/272M-A standard
    ITU-R BT.656-4 standard

  • Output Gain

    - Infinity to + 3 dB (or) - Infinity to + 6 dB

  • Chroma Output Gain

    - Infinity to + 3 dB

  • Chroma Phase

    +/- 30Deg.

  • Setup Level

    +/- 10%

  • Sink Phase

    +/- 15 s

  • SC Phase

    +/- 180Deg.

  • Digital Audio -Sampling Frequency:

    48 kHz (sync video)

  • Digital Audito -Quantizing

    16 bits

  • Digital Audio - Frequency Response:

    20 Hz to 20 kHz, +/- 1.0 dB (reference level)

  • Digital Audio - Dynamic Range

    More than 85 dB (1 kHz, emphasis off, "A" weighted)

  • Digital Audio - Distortion

    Less than 0.1% (1 kHz, emphasis off, reference level)

  • Digital Audio - Cross Talk

    Less than - 80 dB (1 kHz, between 2 channels)

  • Digital Audio - Headroom

    20/18/12 dB switchable

  • Digital Audio - De-emphasis

    T1=50 sec, T2=15 sec (on/off auto)

  • Audio (Analog) Input

    XLR x 4 (CH1/CH2/CH3/CH4),
    600O /high-impedance switchable,
    +4/0/- 3/ - 20 dBu switchable
    LINE/MIC/MIC+48V switchable at CH2
    MIC: - 60 dBu, MIC+48 V: Phantom +48 V, - 60 dBu

  • Audio (Analog) Output

    XLR x 4 (CH1/CH2/CH3/CH4), low-impedance, +4/0/- 3/ - 20 dBu switchable

  • Digital Input

    BNC x 2 (CH1/2, CH3/4), AES/EBU format SMPTE 276M

  • SDI Output

    BNC x 1
    HD Serial Digital: SMPTE 292M/296M/299M standard
    SD Serial Digital: SMPTE 259M-C/272M-A standard
    ITU-R BT. 656-4 (576/50i) standard

  • Monitor Output

    Pin jack x 2, - 8 dBV, 600 O

  • Headphones

    Stereo mini jack (3.5 mm diameter), 8 O, variable level

  • Time Code Input

    BNC x 1, 0.5 V[P-P] to 8.0 V[P-P], 10 k O

  • Time Code Output

    BNC x 1, 2.0 V[P-P] +/- 0.5 V[P-P], low impedance

  • RS-422A Input

    D-sub 9pin, RS-422A Interface

  • IEEE 1394 Input/Output

    6-pin x 1, 400/200/100 Mbps switchable
    IEEE 1394-1995 standard
    IEC 61883-Part1, Part2 standard
    SMPTE 396M standard
    AV/C Command Set standard

  • USB2.0

    Host x 1, Device x 1

  • LAN

    1000BASE-T/100BASE-TX/10BASE-T x 1

  • eSATA

    eSATA 3Gbit port x 1

  • Power Source

    AC 100 V to 240 V, 50 Hz/60 Hz 60W
    DC 12 V/4.8 A

  • Operating Temperature

    0Deg. C to 40Deg. C (32 Deg. F to 104 Deg. F)

  • Operating Humidity

    10 % to 80 % (no condensation)

  • Dimensions (W x H x D)

    301 x 120 x 412mm (11.87 x 4.75 x 16.25" )

  • Weight

    6.6 kg (14.55 lbs)

About Panasonic AJ-HPM200 P2 Mobile AVC-Intra/DVCPRO HD/50/25 P2 HD Recorder/Player with eSata, GigE

The Panasonic AJ-HPM200 is a portable P2 recorder capable of capturing and playing back multiple formats and frame rates, including Panasonic's new 10-bit, full raster codec AVC-Intra. The recorder incorporates all major attributes of previous modes, with additional features including GigaBit Ethernet capability. The unit's 9" LCD makes it easy to preview, make insert edits and monitor overall image quality right on set for immediate delivery.

Panasonic AJ-HPM200 P2 Mobile AVC-Intra/DVCPRO HD/50/25 P2 HD Recorder/Player with eSata, GigE Features

  • 10-bit independent frame 4:2:2 quality recording in multiple HD/SD formats and frame rates, including 1080p (native), 1080i and 720p
  • Up/down/cross conversion functions and real time up-conversion of live video inputs
  • Full-frame rate playback from external disk drives (via eSata)
  • Six P2 card slots - long record times up to 16 hours
  • Expanded I/O interfaces: HD-SDI input/output, analog component/composite and audio, IEEE 1394 and USB2.0, plus compatible AES Digital audio inputs/outs, high-speed eSATA and Giga-bit Ethernet (GigE)
  • RS-422A for remote control operation
  • Built-in waveform monitor
  • Enhanced editing and recording features such as clip exchange, multiple clip selection, undo/redo last action, auto record, loop record and text memo
  • Built-in 9-inch LCD monitor with clip thumbnail preview for on-the-spot access to content for previewing, shot marking and insert editing
  • Outstanding benefits of P2 solid-state recording including ultra-fast IT workflow and no-moving-parts reliability, ideal for use in harsh environments
  • Eight 16-bit digital audio channels with 5.1-channel surround sound and audio faders; two-channel voice over recording; also allows for real time adjustment of audio during playback
  • Lightweight, compact design. Folds flat for easy transport and storage (weight: 14.4 pounds). AC/DC operation

Warranty Information

This used item has a FREE 180-day warranty. See details.
