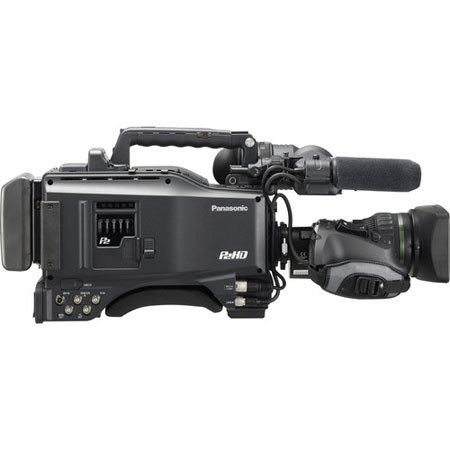

Panasonic AJ-HPX2000 2/3" 3CCD P2 HD/SD Multi-Format Camcorder.
Panasonic AJ-HPX2000: Picture 1 thumbnail
Panasonic AJ-HPX2000: Picture 2 thumbnail
Panasonic AJ-HPX2000: Picture 3 thumbnail
Panasonic AJ-HPX2000: Picture 4 thumbnail
Panasonic AJ-HPX2000: Picture 5 thumbnail
See all Panasonic items
$9 PRICE DROPUsed Condition: For Parts

Used Panasonic AJ-HPX2000 2/3" 3CCD P2 HD/SD Multi-Format Camcorder.

SKU: US1828299 MFR: AJ-HPX2000PJ
(1)
$71.00
$80.00
Save: $9 (11%)
Earn VIP Reward Points
See all Used options (3) from $71

What`s in the box:

  • Panasonic AJ-HPX2000 2/3 3CCD P2 HD/SD Multi-Format Camcorder
  • Front Audio Volume Knob
  • Control Knob Mounting Screw
See more
Calculate Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2015-08-26T21:00:00

Rated 5 out of 5

Excellent !

Great to get away from tape. The P2 is excellent, works perfect all the time.

DANIEL K.

Panasonic AJ-HPX2000 Specifications

  • CD Elements

    2/3-inch CCD x 3

  • Picture Element

    Total: 1370 (H) x 744 (W), Active: 1280 (H) x 720 (W)

  • Optical Filters

    1: 3200K, 2: 5600K+1/8ND, 3: 5600K, 4: 5600K+1/64ND

  • Quantizing

    14 bits

  • Horizontal Drive Frequency

    74.1758 MHz (59.94 Hz), 74.25 MHz (50 Hz)

  • Sampling Frequency

    74.1758 MHz (59.94 Hz), 74.25 MHz (50 Hz)

  • Digital Signal Process

    74.1758 MHz (59.94 Hz), 74.25 MHz (50 Hz)

  • Programmable Gain

    3/0/+3/+6/+9/+12/+15/+18/+21/+24/+27/+30 dB

  • Digital Super Gain

    +6/+10/+12/+15/+20 dB

  • Line Mix Gain

    +6 dB (ON/OFF)

  • Super Gain

    +30/+36/+42/+48 dB

  • Shutter Speed

    1/60 (50Hz),1/100 (59.94Hz),1/120/, 1/250, 1/500, 1/1000, 1/2000 sec. and HALF

  • Syncro Scan Sutter

    1/60.3 to 1/249.8 sec. (59.94Hz), 1/30.2 to 1/249.7 sec. (29.97Hz), 1/24.1 to 1/249.7 sec. (23.98Hz), 1/50.2 to 1/209.5 sec. (50 Hz), 1/25.2 to 1/209.5 sec. (25 Hz)

  • Lens Mount

    2/3-inch bayonet mount

  • Optical System

    F1.4 Prism

  • Sensitivity

    F10

  • Minimum Luminance

    0.007lx (F1.4, Super gain +48dB, Digital super gain +20 dB, Line mix gain +6dB)

  • Video S/N

    54 dB (standard )

  • Horizontal Resolution

    700 lines (at center standard )

  • Memory Card Recorder Section-1

    Recording Format: DVCPRO HD/DVCPRO 50/DVCPRO/DV Format switchable
    Recording Video Signal: 1080/59.94i, 720/59.94p, 480/59.94i, 1080/50i, 720/50p, 576/50i
    Recording Audio Signal: DVCPRO HD: 48kHz/16bits, 4CH
    DVCPRO 50: 48kHz/16bits, 4CH
    DVCPRO/DV: 48kHz/16bits, (2CH/4CHswitchable )

  • Memory Card Recorder Section-2

    Recording Media: P2card
    Recording Playback Time (when using 8GB P2 card AJ-P2C008HG): by single card
    DVCPRO HD: Approx. 8 min.
    DVCPRO 50: Approx. 16 min.
    DVCPRO/DV: Approx. 32 min.
    Recording Playback Time
    DVCPRO HD: Approx. 40 min.
    50: Approx. 80 min.
    /DV: Approx. 160 min.

  • Digital Video-1

    Sampling Frequency:
    DVCPRO HD: Y:74.1758 MHz
    (59.94 Hz) PB/PR:37.0879 MHz
    DVCPRO HD: Y:74.25 MHz
    (50 Hz) PB/PR:37.125 MHz
    DVCPRO 50: Y:13.5 MHz
    PB/PR:6.75 MHz
    Quantizing: 8bits
    Video Compression Ratio:
    DVCPRO HD: 1/6.7 (except 1080-50i/25P), 1/6.3 (1080-50i/25P)
    DVCORO 50: 1/3.3
    DVCORO/DV: 1/5
    Video Recording bit Rate:
    DVCPRO HD: 100 Mbps
    DVCORO 50: 50Mbps
    DVCORO/DV: 25Mbps

  • Digital Audio-2

    Sampling Frequency: 48 kHz (sync. with video)
    Quantizing: 16 bits
    Frequency Response: 20 Hz to 20 kHz, +/-1.0dB (reference level)
    Dynamic Range: More than 85 dB (1 kHz, AWTD)
    Distortion: Within 0.1% (1 kHz, reference level)
    Headroom: 20dB

  • Genlock In

    BNC, 1.0 Vp-p, 75 Ohms(switchable to VIDEO IN or Return Video)

  • Monitor Out

    BNC x 1, 1.0Vp-p, 75Ohms Composite

  • Video out

    BNC x 1, 1.0Vp-p, 75Ohms Composite (switchable to HD-SDI/SD-SDI)
    HD-SDI: 0.8Vp-p, 75Ohms, (SMPTE292M/296M/299M)
    SD-SDI: 0.8Vp-p, 75Ohms, (SMPTE259M-C/272M-A/ITU-R.BT656-4)

  • TC In:

    BNC x 1, 0.5 to 8Vp-p, 10kOhms

  • TC Out

    BNC x 1, low-impedance, 2.0+/-0.5Vp-p

  • DVCPRO/DV

    6pin (Input and Output ), Transfer Speed: 400/200/100 Mbps (selectable)
    Data: IEEE 1394-1995/1394a-2000, IEC61883-1,2, SPMTE396M standards
    Control Command: AV/C Command Set

  • SDI-IN (option)

    BNC x 1, 0.8Vp-p, 75 (AJ-YA350G)
    HD: SMPTE292M/296M/299M
    SD: SMPTE259M-C/272M-A/ITU-R.BT656-4

  • Audio In: (CH1/CH2)

    XLR-3pin x 2, LINE/MIC/MIC+48Vswitchable
    LINE:-3/0/+4dBu selectable
    MIC:-60/-50dBu selectable
    MIC+48V: Phantom +48 V, -60/-50 dBu selectable

  • MIC In

    XLR-5pin x 1, -50/-40dBu selectable, Phantom +48 V ON/OFF

  • Wireless In

    D-sub 25-pin, -40 dBu

  • AUDIO OUT (CH1/CH2)

    XLR 5-pin, balanced, low-impedance, -3/0/+4 dBu selectable

  • PHONES Out

    Stereo Mini Jack x 2

  • DC In

    XLR-4-pin x 1, DC12V (11 to 17V)

  • DC Out

    4 pin, DC12V (11 to 17V), Max.1.5A

  • Lens

    12-pin

  • EVF

    20-pin

  • ECU

    10pin (for AJ-RC10G)

  • GPS

    6-pin (for AJ-GPS900G)

  • USB (2.0)

    HOST: 4-pin (Type-A), DEVICE: 4-pin (Type-B)

  • Power Source

    DC 12V (11.0V to 17.0V)

  • Power Consumption

    36W (LCD Monitor Off)
    43W (SDI-IN, with AVC-Intra option, LCD Monitor ON)

  • Operating Temperature

    32deg.F to 104deg.F (0deg.C to 40deg.C)

  • Keeping Temperature

    -4deg.F to 140deg.F (-20deg.C to 60deg.C)

  • Operating Humidity

    10% to 85%

  • Operating Time

    Approx. 120 min. (when using DIONIC90 battery)

  • Dimensions (W x H x D)

    137 x 209 x 317 mm / 5.39 x 8.22 x 12.48" without handle and wireless option cover

  • Weight

    10.0 lbs (4.5 kg), main unit only, without VF mount

About Panasonic AJ-HPX2000 2/3" 3CCD P2 HD/SD Multi-Format Camcorder.

FEATURED REVIEWS

Excellent !

By DANIEL K.

Great to get away from tape. The P2 is excellent, works perfect all the time.

The Panasonic AJ-HPX2000 P2 HD shoulder-mount camcorder integrates native HD progressive 2/3" 3CCD performance with the ultra-high reliability and speed of P2 solid-state recording. As one of the most flexible, full production-quality cameras available, the AJ-HPX2000 records pristine high-quality images in over 30 HD and SD formats ranging from 1080p, 1080i, 720p, 480p, 480i and 576i. With the new AVC-Intra codec option board (AJ-YBX200G), the AJ-HPX2000 can deliver 10-bit, 4:2:2 master-quality video for outstanding video production and news acquisition.

AVC-Intra, the industry's most advanced compression technology, is a professional intra-frame video codec with bit rates of 50 and 100 Mbps, utilizing the High-10 and High-422 profiles of H.264 respectively. AVC-Intra provides high-quality 10-bit intra-frame encoding in two modes: AVC-Intra 100 for full-raster mastering video quality and AVC-Intra 50 Mbps for DVCPRO HD quality at half the bit rate, thereby doubling the record time on a P2 card.

The Panasonic AJ-HPX2000 holds up to five P2 cards offering users extended recording time. With five 32 GB P2 cards, professionals can record over 5 hours of content with AVC-Intra 50 and over 6-1/2 hours in DVCPRO HD 720p native.

Panasonic AJ-HPX2000 2/3" 3CCD P2 HD/SD Multi-Format Camcorder. Features

  • Compatible with DVCPRO HD/50/25 and optional AVC-Intra 50/100
  • Multi-format recording system that supports a total of 30 HD and SD U.S. and international formats, including 1080/59.94i, 1080/50i, 1080/29.97p, 1080/25p, 1080/23.98p, 720/59.94p, 720/50p, 720/29.97p, 720/25p 720/23.98p and more
  • Offers DVCPRO HD Native recording frame rates, including 720 23.98p / 25p / 29.97p
  • 2/3" 3-CCDs with 14-bit A/D processing
  • One-clip REC function that records up to 99 consecutive cuts as a single clip, greatly facilitating NLE news or documentary editing
  • Time lapse
  • High-speed file transfers are easy with industry-standard IT interfaces, including USB 2.0 and IEEE 1394
  • Ultra-reliable, solid-state recording for superior reliability in harsh environments including temperature change, vibration and shock
  • New Dynamic Range Stretching (DRS) automatically adjusts the camera's aperture when moving from dark to light areas or shooting scenes with mixed dark and light areas
  • 12-color correction matrix for precise color adjustments
  • Top performer in low and bright light conditions, with a high sensitivity of F11 at 2000 lux and a minimum illumination of 0.007 lux (at +74 dB gain)
  • Powerful digital super gain
  • Records full 48-kHz/16-bit digital audio on four channels
  • Extensive signal connectivity and control capability comes standard with the camera, including IEEE 1394 (AVC) USB 2.0 interfaces, HD/SD-SDI, genlock, SMPTE time code & composite video. A 10-pin RCU terminal connects the optional AJ-RC10G remote control unit. GPS mapping connection is also available
  • Optional recording boards, such as Proxy Data and HD/SD line recording, allow for a variety of recording options compatible with common studio news systems and applications (news flashes, etc.)
  • 4-position optical filter
  • Up to 4X Digital Zoom due to increased magnification of the lens by either 2X, 3X or 4X. HD images remain in their superb resolution while maintaining brightness
