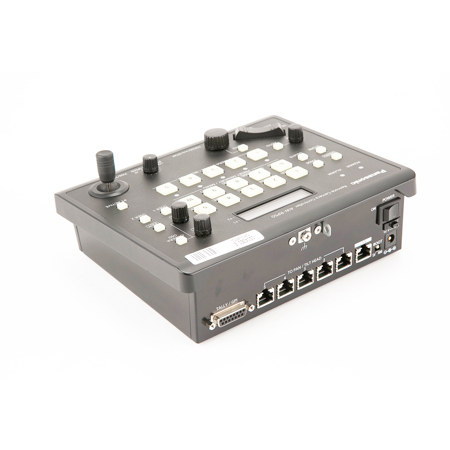

Panasonic AW-RP50 Sub-Compact Remote Camera Controller

Picture does not represent the actual item
See what's in the box

See all Panasonic items

Used Panasonic AW-RP50 Sub-Compact Remote Camera Controller

SKU: US1814363

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2013-03-11T21:00:00

Rated 5 out of 5

PTZ Controller goes in Church

This remote controller is paired with a Panasonic AW-HE120 PTZ HD camera. Unit has small footprint and handles the task well. Allows user to set ten camera position presets to quickly get to a shot. Nice feature is the speed control for pans and tilts. You can control the speed with the joystick by how far one pushes it but it is a great option to set the speed to slow for an elegant pan and not have to worry about holding the joystick in exactly the right spot. Unit appears sturdy and well constructed if not stylish. This unit is located in a control booth in the rear of the balcony of a church and controls a camera at the alter rail. Connect via Cat 5 or 6 with a LAN type connecter on both ends. Camera controls are immediate and responsive even at that distance.

DOUGLASS D.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Panasonic AWRP50N Specifications

  • Remote Control

    Protocol - IPv4, RS-422 (Panasonic AW series protocol)
    Connection - Serial: Up to 5 cameras / IP: Up to 100 cameras (Up to 100 when Serial and IP are used together)
    Adjustment functions - Pan/Tilt, Zoom, Focus, Iris, Gain, Pedestal, Shutter, Detail, White Balance (Auto, R/B Gain), Black Balance (Auto, R/B Pedestal), Switch scene files
    Preset memory - Up to 100

  • Switcher Control

    Connection - IP: 1
    Switcher Supported - AW-HS50N
    Linkage - Camera information display, TALLY information imported, BUS material selection (AUX/PVW/PinP/KEY-F), Parameter changes (Pan/Tilt lever, Zoom button)

  • Interface

    TALLY/GPI - TALLY input x 5 channels, GPI INPUT x 4 channels, GPI OUTPUT x 4 channels, D-sub 15 pin (female x 1)
    LAN - 10BASE-T/100BASE-TX (for IP control), RJ45 x 1
    Pan/Tilt head - RS422 (for Serial control), RJ45 x 5

  • Power Supply

    DC 12 V +/-10 % (AC adapter provided)

  • Power Consumption

    0.5 A (With DC12 V input)

  • Operating Temperature

    0deg.C to +40deg.C

  • Operating Humidity

    10% to 90% (no condensation)

  • Dimensions (W x H x D)

    210 x 67 x 177mm / 8.26 x 2.63 x 6.96"

  • Weight

    1.1 kg / 2.4 lbs

About Panasonic AW-RP50 Sub-Compact Remote Camera Controller

FEATURED REVIEWS

PTZ Controller goes in Church

By DOUGLASS D.

This remote controller is paired with a Panasonic AW-HE120 PTZ HD camera. Unit has small footprint and handles the task well. Allows user to set ten camera position presets to quickly get to a shot. Nice feature is the speed control for pans and tilts. You can control the speed with the joystick by how far one pushes it but it is a great option to set the speed to slow for an elegant pan and not have to worry about holding the joystick in exactly the right spot. Unit appears sturdy and well ...

View full Review

The Panasonic AW-RP50 Sub-Compact Remote Camera Controller unit can control up to one hundred AW-HE50 series cameras via IP and up to five Panasonic cameras and pan-tilt heads using RS-422 serial control. The RP50 is capable of accessing up to 100 presets for each Panasonic Integrated PTZ camera (the AW-HE50 and AW-HE100) and up to 50 presets for other Panasonic AW-series pan-tilt heads.

The half-rack width RP50 has a simple, ergonomic design for easy operation in a wide range of applications - including remote production, sports, education, legislative TV and house of worship use. In addition to easy, precise pan, tilt, zoom, focus, iris, white balance, black balance and shutter adjustments, the RP50 also provides direct setting of detail, R/B gain and R/B pedestal adjustments on many cameras for convenient matching of video output. Camera menu access is also provided for adjustment of other parameters.

The RP50 remote control also connects to the AW-HS50 switcher via IP for synchronized use at a distance or for easy control of both units by a single local operator.

Panasonic AW-RP50 Sub-Compact Remote Camera Controller Features

  • Uses serial and IP control to support up to 5 Panasonic pan/tilt heads, integrated and box cameras
  • Simple to set up and operate and offers automatic IP setup
  • Can be configured via your PC
  • Allows you to control up to 100 AW-HE50S/H units via IP connections when using a network hub (switching hub)
  • Allows you to control 1 remote camera simultaneously by up to 5 AW-RP50 units via IP connection or serial control
  • Automatic IP Address Setup function - allows IP addresses to be automatically assigned to the AW-HE50S/H or AW-HS50 units
  • Adjustable camera functions - pan/tilt, zoom, focus, iris, gain, pedestal, shutter, white/black balance and switch scene files
  • Ergonomically designed
  • Ideal for use in remote production units, education institutions and houses of worship

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic AW-RP50 Sub-Compact Remote Camera Controller
  • Item Note: Missing AC Adaptor; Power Cable
