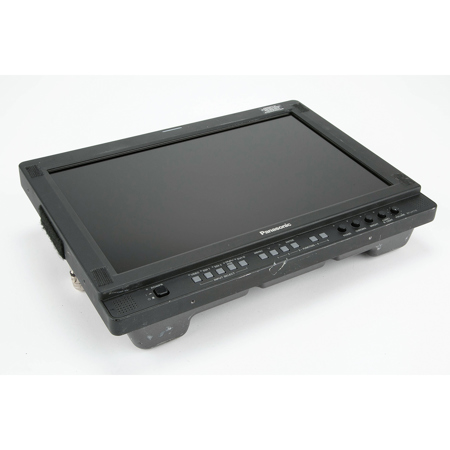

Panasonic BT-LH1710 17.1" Widescreen Multi-Format Color Production Monitor Specifications

  • Application

    Video, Studio, Field Monitoring

  • LCD Size

    17"

  • Video System

    NTSC/PAL

  • Picture Elements

    1280 x 768

  • Input and Output Connectors

    Composite: BNC (x2 Input)
    Component: BNC (x2 Input)
    Sync: BNC (x1 Input With Loop Output)
    VD: BNC (x1)
    HD/SD-SDI: BNC (x1 Input)
    DVI-D with HDCP: DVI (x1 Input)
    Audio: Pinjack (x2)
    Headphone Output: 1/8" Stereo Mini (x1)
    GPI: 9-Pin DSub
    RS-232C: 9-Pin DSub

  • Picture Controls

    Brightness
    Color

  • Remote Control

    RS-232C, GPI

  • Viewing Angle

    178°

  • Power Requirements

    100-240VAC, 50/60Hz
    11-17VDC

  • Power Consumption

    4.0A

  • Dimensions (WxHxD)

    Without Stand
    16.9 x 12.2 x 3.3" (43 x 31 x 8.3cm)

  • Weight

    15.7 lbs (7.1kg)

About Panasonic BT-LH1710 17.1" Widescreen Multi-Format Color Production Monitor

The versatile BT-LH1710 provides production-tough, HD broadcast-quality performance for a wide range of applications whether in the studio or in the field. Building on the performance of its predecessor, the BT-LH1700W, the LH1710 incorporates the latest panel and image processing technology to provide higher contrast, improved black levels and more functionality, at a price that fits your budget.

The LH1710's new 1280 x 768 In-Plane Switching (IPS) panel delivers broadcast- quality video reproduction with 10-bit image processing for improved color performance. The monitor's newly-designed image processing engine has a 3D look-up table (LUT) that calibrates it to reproduce accurate images according to the specific color standard selected. The LH1710 adds a wider range of essential functions including built-in embedded audio support, vectorscope, pixel-to-pixel display, cross hatch overlay, audio level meters (up to 8 channels), time code, headphone jack and five function buttons, in addition to the built-in waveform monitor that many professionals found invaluable in the BT-LH1700W.

The LH1710 is equipped with two HD-SDI/SDI auto-switching inputs with a switched output and a DVI-D input for connection to digital devices with a DVI-D output.

Panasonic BT-LH1710 17.1" Widescreen Multi-Format Color Production Monitor Features

  • 1280 x 768 Resolution (WXGA)
  • AC/DC operation for field or studio use
  • Cine-gamma (Film-Rec) compensation function for use with cameras including the Panasonic AJ-HDC27 VariCam HD Cinema Camera and the AJ-HPX3700 and AJ-HPX2700 P2 HD VariCam camcorders
  • Waveform monitor and vectorscope displays all picture lines (via HD-SDI / SDI input)
  • Audio level meters can be displayed as 2-ch , 4-ch , 8-ch, or shut off completely (+ 0 dB limit mark (on/off))
  • Displays a variety of time code information: Time Code (SDI & HD-SDI) LTC (Linear Time Code), VITC (Vertical Interval Time Code), LUB (User Bits among Linear Time Code), VUB (User Bits among Vertical Time Code)
  • Additional features include built-in embedded audio decoder (via speakers and headphone jack), RS-232C and GPI remote control terminals and tally indicators (Red/Green/Amber)
  • Marker and blue-only function
  • Five assignable function buttons for quick and easy access to features
  • Wide 176° horizontal and vertical viewing angle
  • Durable, die cast aluminum frame
  • Quiet operation (No cooling fan)
  • Headphone jack and built-in stereo speakers
  • VESA mounting capability and desk stand included

What's in the box:

  • Panasonic BT-LH1710 17.1" Widescreen Multi-Format Color Production Monitor
  • Anton Bauer Gold Mount Plate
  • AC Power Cable
