1-type (inch) MOS Sensor
UHD/FHD 59.94p/29.97p/23.98p: 8.79 megapixels
4K 24.00p: 9.46 megapixels
F2.8 - F4.5
20x
8.8 - 176 mm
25.4 - 508.0 mm [UHD/FHD 59.94p/29.97p/23.98p],
24.0 - 480.0 mm [4K24.00p]
67 mm
Leica Dicomar Lens
0.2 lx (F2.8, Gain 18dB, Manual Slow Shutter 1/2, HIGH SENS mode)
Auto / Manual
Intelligent Zoom OFF: 20X
Intelligent Zoom ON: 30x
Digital Zoom: 2x / 5x / 10x
1/4, 1/16, 1/64, OFF
Incorporates the ON/OFF control function
Auto / ATW LOCK / 3200K / 5600K / VAR (2000K -15000K) / Ach Fixed / Bch Fixed
60i/60p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec, 30p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec, 24p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
50i/50p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec, 25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000, 1/3000, 1/4000, 1/8000 sec
60i/60p: 1/2, 1/4, 1/8, 1/15, 1/30 sec, 30p: 1/2, 1/4, 1/8, 1/15 sec, 24p: 1/2, 1/3, 1/6, 1/12 sec
50i/50p: 1/2, 1/3, 1/6, 1/12, 1/25 sec, 25p: 1/2, 1/3, 1/6, 1/12 sec
59.94i/59.94p: 1/60.0 - 1/249.7 sec, 29.97p: 1/30.0 - 1/249.7 sec, 23.98p: 1/24.0 - 1/249.6 sec, 24.00p: 1/24.0 - 1/249.9 sec
50i/50p: 1/50.0 - 1/250.0 sec, 25p: 1/25.0 - 1/250.0 sec
30p: 2, 15, 26, 28, 30, 32, 34, 45, 60 fps, 24p: 2, 12, 20, 22, 24, 26, 28, 36, 48, 60 fps
25p: 2, 12, 21, 23, 25, 27, 30, 37, 50 fps
F11 (2,000 lx, 3,200 K, 89.9% reflect, 1080/59.94i) / F12 (2,000 lx, 3,200 K, 89.9% reflect, 1080/50i)
F8 (2,000 lx, 3,200 K, 89.9% reflect, 1080/59.94i) / F9 (2,000 lx, 3,200 K, 89.9% reflect, 1080/50i)
Auto / Manual
4K24.00p / UHD: Optical image stabilizer
FHD or lower: 5-Axis Hybrid Image Stabilizer
SDHC/SDXC Memory Card
MOV, MP4, AVCHD
JPEG (DCF/Exif2.2)
MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD)
MOV / MP4: LPCM (2ch), AVCHD: Dolby Digital (2ch)
59.94Hz / 50.00Hz
4K 4096x2160 24.00p 100M: Average 100Mbps (VBR)
UHD 3840x2160 59.94p/50.00p 150M: Average 150Mbps (VBR)
UHD 3840x2160 29.97p/25.00p/23.98p 100M: Average 100Mbps (VBR)
FHD 1920x1080 59.94p/50.00p/
29.97p/25.00p/23.98p 200M (ALL-Intra): Average 200Mbps (VBR)
FHD 1920x1080 59.94p/50.00p 100M: Average 100Mbps (VBR)
FHD 1920x1080 59.94p/50.00p/
29.97p/25.00p/23.98p/59.94i/50.00i 50M: Average 50Mbps (VBR)
PS 1920x1080 59.94p/50.00p: Average 25Mbps (VBR)
PH 1920x1080 59.94i/50.00i/23.98p: Average 21Mbps (VBR)
HA 1920x1080 59.94i/50.00i: Average 17Mbps (VBR)
HE 1440x1080 59.94i/50.00i: Average 5Mbps (VBR)
PM 1280x720 59.94p/50.00p: Average 8Mbps (VBR)
SA 720x480/720x576 59.94i/50.00i
(SIDE CROP/LETTERBOX/SQUEEZE): Average 9Mbps (VBR)
[17:9] 8.8megapixels (4096 x 2160), [16:9] 8.3megapixels (3840 x 2160), 2.1 megapixels (1920 x 1080), 0.9 megapixels (1280 x 720)
7.28V (Battery) / 12V (AC Adaptor)
19.7W (LCD Monitor)
8.88 cm (3.5-inch) Wide LCD monitor (1,152,000 dots) (For Europe), 3.5-inch Wide LCD monitor (1,152,000 dots) (For North America / Asia)
0.99 cm (0.39-inch) OLED (1,769,000 dots) (For Europe), 0.39-inch OLED (1,769,000 dots) (For North America / Asia)
Focus / Zoom / Iris
Yes
Yes
Yes
Yes (5,900mAh)
Yes
Yes
Yes
Yes
Yes
Yes
Video OUT: 1x Video OUT
HDMI: Type A x 1 (Not compatible with VIERA Link)
Output format: 2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p
Stereo microphone
2x XLR (3 pins)
Input high impedance, LINE/MIC/MIC+48 V (switchable SW)
LINE: +4dBu/0dBu (switchable menu)
MIC: -40dBu/-50dBu/-60dBu (switchable menu)
2ch (LPCM)
2x Audio OUT
1x 3.5 mm diameter stereo mini jack
1x 20 mm diameter, round
1x 2.5mm super mini jack (ZOOM S/S)
1x 3.5mm mini jack(FOCUS/IRIS)
Standard-A connector, 9-pin, for external media device connection, bus power supply
Micro-B connector, 10-pin, mass storage function (read only)
DC 12V (11.4V - 12.6V) EIAJ Type4
Great equipment, good service
By TIMOTHY V.
This is a great camera. I searched all over the web for one more to add to an existing set. Adorama showed having it in stock on the website. I called to verify it was actually in stock ( two other online retailers showed it in stock but it actually wasn’t) and they indeed had it, and got me a great price on it. Adorama use to be my 3rd or 4th place to look. But now it’s becoming my first.
Owner
By Curt T.
The Panasonic HC X1 is a fantastic camcorder. It's easy to set up and easy-to-use. I highly recommend it for all of your videography needs.

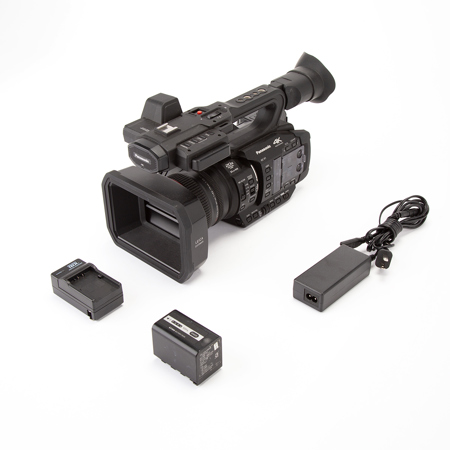

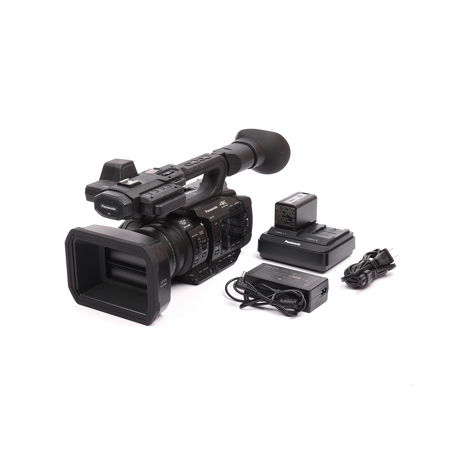

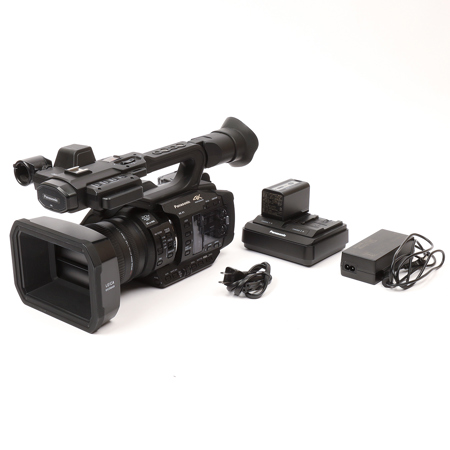

The light, compact Panasonic HC-X1 4K camcorder professional supports 4K 24p, UHD 60p/50p, FHD 60p/50p multi-format recording and HD super slow-motion. Plus it includes a wide 24mm angle LEICA DICOMAR 4K Lens 20x zoom.
The new high performance LEICA DICOMAR 24mm 4K Lens delivers 24mm* at the wide-angle setting with little distortion. A perfect solution for recording in tight and narrow spaces.
*35mm film camera equivalent at 4K 24p (aspect ratio 17:9). 25.4mm for UHD/FHD (aspect ratio 16:9).
The HC-X1 comes complete with a 4-Drive Lens System that simultaneously and independently drives 4 lens groups (group 2, iris, group 3, group 4). Lens size and drive range for each of the 4 groups can be efficiently suppressed to optimize image quality and zoom power.
By using hand-shake correction that combines the effects of both optical and electronic image stabilization in HD shooting modes, hand-shake in various directions is detected and corrected.
The optical 20X zoom lens covers the range from 24mm wide-angle to 480mm telescopic (35mm film equivalent at 4K 24p). And the lens can quickly zoom from wide-angle to telescopic.
With the HC-X1 O.I.S., the correction area has been expanded to approximately 900%. An advantage that provides powerful correction even in unstable shooting situations, and greatly improves correction for small-amplitude hand-shake.
*Compared to the Panasonic AG-AC160A
Ideal for high-precision, high-speed 4K 60p/50p recording. The effective MOS (approx. 9.46 megapixels in 4K 24p, and approx. 8.79 megapixels in UHD/FHD) offers an appropriate depth of field and excellent balance between image quality and sensitivity. 4K 24p, UHD 60p/50p, FHD 60p/50p multi-format, and HD 120-fps (59.94Hz)/100-fps (50Hz) super slow-motion recording are possible.
Precise AF performance is achieved by moving the Micro Drive Focus Unit minutely and quickly. AF can customize by adjusting AF Speed, AF Sensitivity and AF Area to best accommodate the subject type or application.
Two SD card slots enable unlimited* relay recording by simply changing SD cards, and simultaneous recording and background recording ensures recording reliability.
*The maximum amount of data that can be recorded on multiple SD cards is 96 GB. Recording will not stop even when the data size exceeds 96 GB.
A wireless module (AJ-WM50/AJ-WM30, sold separately) the AG ROP app for iPad provides wireless remote control over camera settings, picture quality adjustment, REC start/stop and menu settings, and lens. Also displays a thumbnail view and preview to check recorded clips on an iPad.
Triple Manual Rings
Three manual rings for Zoom, Focus and Iris control.
2-Channel XLR Audio Input Terminal
2 high-quality audio channels using either the 16-bit linear PCM system (MOV/MP4) or Dolby Digital system (AVCHD).
High-Resolution OLED EVF
A high-resolution OLED display (approx. 1,769,000 dots).
Sliding 3.5-type (inch) Touch-Panel LCD
A retractable touch-LCD can be pulled out of the camera handle and turned 270 degrees.
Others:
• ND Filters: 1/4, 1/16, 1/64
