Review Summary
Black
18.5W (LCD Monitor)
0.6 lx (F2.8, Super Gain+, Shutter Speed 1/30 sec)
Ball O.I.S., 5-Axis HYBRID O.I.S.+ (UHD/FHD)
H.264/MPEG-4 AVC Main Profile, High Profile
Built-in Microphone: Stereo microphone
Audio Input:
2x XLR (3 pins)
Input high impedance, LINE/MIC/MIC+48 V (switchable SW)
LINE: dBu/0dBu (switchable menu)
MIC: -40dBu/-50dBu/-60dBu (switchable menu)
0.39" Wide OLED EVF (About 2,360,000 dots), video display area: About 1,770,000 dots
1"-Type MOS
Effective: 15.03 Megapixel
Optical in Integrated Lens, 5-Axis (Video Only)
Digital
Stills & Video
Mechanical Focal Plane Shutter
1/8000 to 1/6 Second
0.6 lx (F2.8, Super Gain+, Shutter Speed 1/30 sec)
Range: 3200 to 15,000K
Presets: ATW, Auto
8.8 ― 176 mm
i.Zoom OFF: 20x
i.Zoom ON: Max. 32x (UHD 24x)
Digital Zoom: 2x/5x/10x
67 mm
Automatic, Manual Focus
MOV 4:2:2 10-Bit
3840 x 2160 from 2 to 60.00 fps (150 Mb/s VBR)
1920 x 1080p from 2 to 23.98/59.94 fps (50 to 200 Mb/s VBR)
1920 x 1080i at 50/59.94 fps (50 Mb/s VBR)
MP4 4:2:0 10-Bit
3840 x 2160 at 25/29.97/50/59.94/23.98 fps72 to 100 Mb/s VBR)
MOV 4:2:0 8/10-Bit
3840 x 2160 from 2 to 59.94 fps100 to 200 Mb/s VBR)
MP4 4:2:0 8-Bit
3840 x 2160 at 25/29.97/23.98 fps (72 Mb/s VBR)
1920 x 1080p at 23.98/50/59.94 fps (50 Mb/s VBR)
AVCHD 4:2:0 8-Bit
1920 x 1080p at
HDMI
3840 x 2160 at 25/29.97/50/59.94/23.98 fps
1920 x 1080 at 59.94/23.98/25/29.97/50 fps
1280 x 720 at 59.94/50 fps
720 x 576 at 50 fps
720 x 480 at 59.94 fps
NTSC
PAL
AVCHD: 2-Channel, 16-Bit at 48 kHz
MP4: 2-Channel, 16-Bit at 48 kHz via AAC Audio
MOV: 2-Channel, 24-Bit at 48 kHz
H.264, RTSP, MP4, RTMP, RTP, RTMPS
320 x 180 to 1920 x 1080 at 50p, 59.94p, 60p, 30p, 24p (0.5 to 24.00 Mb/s)
Dual Slot: SD/SDHC/SDXC (UHS-I)
No
1x 1/8" / 3.5 mm TRRS A/V (Composite) Output
1x HDMI Output
2x XLR 3-Pin Microphone Input (+48 V Phantom Power)
1x 1/8" / 3.5 mm TRS Stereo Headphone Output
1x Barrel (12VDC at 3 A) Input
1x 2.5 mm Sub-Mini Input
1x USB-C Input
Wi-Fi 4 (802.11n)
No
No
Primary Monitor: Articulating 3.5" Non-Touchscreen LCD
Electronic (OLED)
Panasonic AG-VBR Series
Optional, included
Lithium Ion
Non-universal
1
6.7 x 7.7 x 13.5" / 17.1 x 19.5 x 34.3 cm (With Protrusions)
4.4 lb / 2 kg (Body Only)
5.3 lb / 2.4 kg (With Grip, Viewfinder, Battery)

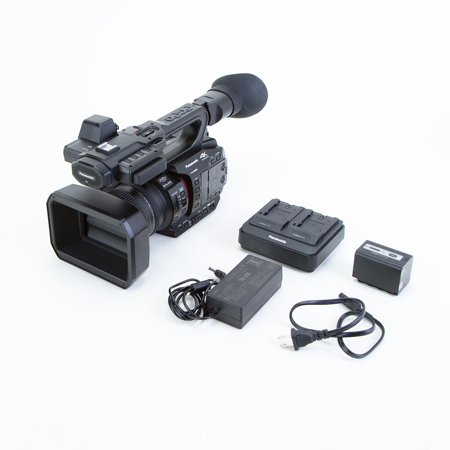

Explore the pinnacle of professional video capture with the HC-X20 4K UHD Professional Camcorder, a powerhouse of precision and versatility designed for the discerning videographer. Boasting an impressive 20x optical zoom and a 24.5mm wide-angle lens, this camcorder ensures comprehensive coverage from intimate close-ups to expansive landscapes, all in stunning UHD and FHD quality.
The HC-X20 is engineered to deliver 4K high-precision autofocus, now enhanced with new face detection technology for sharper, more accurate subject capture. The advanced 5-Axis HYBRID O.I.S.+ system guarantees stable, shake-free recording, even when shooting at full zoom or from challenging angles, thanks to its innovative Ball O.I.S. System that minimizes friction and compensates for even the slightest of hand movements.
At the heart of the HC-X20 lies a high-sensitivity 1.0-type MOS sensor, boasting approximately 15.03 effective megapixels, which captures UHD 3840 x 2160 footage without cropping, offering a perfect balance between high image quality and sensitivity. Choose from a variety of file formats including MOV, MP4, and AVCHD for maximum flexibility in post-production workflows.
The camcorder's high-quality recording capabilities are further enhanced by its support for a range of professional-grade bit rates and formats. Experience internal UHD recording up to 29.98p/25p and FHD up to 59.94p/50p in 4:2:2 10-bit, as well as the option for 4K 60p 4:2:2 10-bit HDMI output for external recording devices. The HC-X20 also introduces the highly efficient HEVC codec for high bit rate recording at 59.94p.
Creative expression is at your fingertips with the Super Slow Motion feature, capturing HD footage at 120/100 fps for dramatic slow-motion sequences, and the VFR function that allows frame rate adjustments from 2 to 60 fps for overcranking or undercranking effects.
The HC-X20's network functions expand your creative possibilities, with built-in Wi-Fi for wireless control via the HC-ROP app and the ability to stream live events directly to platforms like Facebook and YouTube using RTSP/RTP/RTMP/RTMPS protocols.
Designed with the professional in mind, the HC-X20 features a high-resolution 3.5-inch LCD monitor and a 2,360K-dot tiltable viewfinder for simultaneous image confirmation. Triple Manual Rings provide tactile control over zoom, focus, and iris, while 14 customizable User buttons ensure quick access to frequently used functions. The camcorder also supports IR shooting with commercially available lights for low-light scenarios.
Dual SD Card slots offer unlimited relay recording and various recording modes for extended shoots, while the integrated audio system delivers 48-kHz/24-bit high-resolution linear PCM audio recording with selectable XLR inputs and manual volume control.
Finally, the HC-X20 is equipped with broadcast-grade image adjustment functions, including 16-Axis Independent Color Correction, Soft Skin mode, Master Detail adjustment, and an 8-Mode Gamma selection, ensuring that your footage meets the highest professional standards.
The HC-X20 4K UHD Professional Camcorder is the definitive choice for professionals seeking advanced features, high-quality imaging, and robust performance in a compact and durable package.
