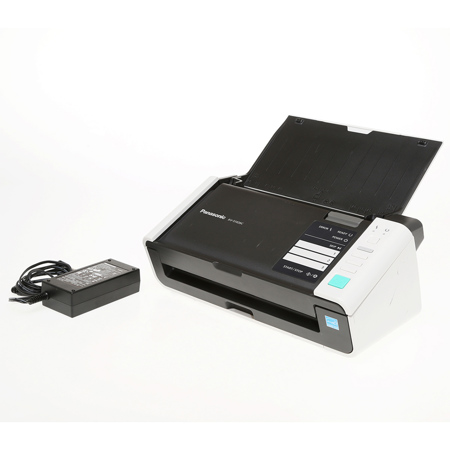

Panasonic KV-S1026C-MK-II Duplex Personal Workgroup Document Scanner SKU#1348362

Picture does not represent the actual item

See all Panasonic items

Used Panasonic KV-S1026C-MK-II Duplex Personal Workgroup Document Scanner, 600 dpi Optical, 30ppm/60ipm Speed, 50 Sheet Feeder

SKU: US1348362
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Panasonic KV-S1026C-MK-II Specifications

  • Scanning Face

    Duplex

  • Image Sensor Type

    1-Line CIS (Contact Image Sensor)

  • Light Source

    RGB LED

  • Optical Resolution (Color and B/W)

    100 - 600 dpi (1 dpi step), 1,200 dpi (Interpolated)
    Optical: 300 dpi / 600 dpi (Automatic switch)

  • Output Resolution

    Binary 1-bit, Grayscale 8-bit, Color 24-bit, MultiStream (Color & Binary or Gray & Binary)

  • Image Processing Function

    Automatic Binary/Color Distinction, Multi Color Drop Out, Blank Page Removal, Double Exposure, Smooth Background, Automatic Cropping, De-skewing, Dynamic Threshold, White Level from Paper, Image Emphasis (5 steps), Gamma Correction, Automatic Separation, Noise Reduction, Shadow Removal, Mirror Image, Monochrome Reversing, 2-Page Separation, Border Removal and Automatic Image Orientation

  • Automatic Detection

    Intelligent double feed detection used ultrasonic sensor

  • Internal Video Processing

    1,024 levels (30 bit)

  • Image Compression

    MH, MMR, JPEG, JPEG2000

  • Binary Mode Halftone

    Dither, Error Diffusion

  • Scanning Speed

    Simplex: Up to 30 ppm, Duplex: Up to 60 ipm (Binary / Color, A4 or Letter, 200 / 300 dpi)

  • ADF Capacity

    Up to 50 sheets (20 lbs, 80 g/m2), 3 hard cards (ISO 7810 ID-1)

  • Document Size (ADF)

    Minimum: 1.9 x 2.8" (4.83 x 7.11cm) length
    Maximum: 8.5 x 100" (21.59 x 254.00cm) length

  • Weight (Thickness)

    Single: 5.4 lbs - 55 lbs (20 - 209 g/m2)
    Continuous: 5.4 lbs - 55 lbs (20 - 209 g/m2)
    Paper 0.04 - 0.5mm (1.6 - 19.7 mils)
    ISO Card 0.76mm (29.9 miles) except for emboss
    1.24mm (48.8 miles) include emboss
    Passport 3.0 mm (118.1 miles) include carrier sheet

  • Interface

    USB 3.1 (GEN1)

  • Power Requirements

    AC 100 - 120 V 50/60Hz, AC 200 - 240 V 50/60Hz

  • Power Consumption

    Scanning mode: 17W or less
    Idle mode: 4.5W or less
    Sleep mode: 1.6 W or less
    Power off mode: 0.3W or less

  • Bundled Software

    Panasonic ImageCapture Plus, Panasonic User Utility, ISIS/TWAIN/WIA, ABBYY FineReader 12 Sprint

  • OS Support

    Windows XP (32bit / 64bit), Windows Vista (32bit / 64bit)
    Windows 7 (32bit / 64bit), Windows 8, 8.1 (32bit / 64bit)
    Windows 10 (32bit / 64bit), Windows Server 2003 (32bit / 64bit)
    Windows Server 2008 (32bit / 64bit), Windows Server 2012 (64bit)
    Windows Server 2016 (64bit), Mac OSX 10.x.x or higher
    Citrix XenAPP 6.0/6.5, Linux RedHat Enterprise Desktop 6/7, Ubuntu 14/15

  • PC Requirements

    Minimum: Intel Core 2 Duo 1.8GHz Processor, 1GB Memory or Higher
    Recommended: Intel Core i5 2.5GHz Processor, 4GB Memory

  • Other Functions

    Zone OCR (a function of the Image Capture Plus software that adds characters from the document to the output file name), Separation Sheet, Single-Touch Scan Keys, Double-Feed Skip Key

  • Operating Temperature

    5 to 35 deg. C (41 to 95 deg. F)

  • Operating Humidity

    20 to 80% RH

  • Storage Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Storage Humidity

    8 to 75% RH

  • Dimensions (WxDxH)

    11.9 x 7 x 5.4" (302.26 x 177.80 x 137.16mm) without Feed tray

  • Weight

    5.9 lbs (2.68kg)

About Panasonic KV-S1026C-MK-II Duplex Personal Workgroup Document Scanner SKU#1348362

Brilliant Design For Intuitive Paper Handling
The Panasonic KV-S1026C-MKII scanner instantly transforms your paper documents to high-quality digital files, allowing you to simplify your records management and making it easy to route documents to the destination of your choice with the touch of a button.

Compact design and intuitive operation make the KV-S1026C-MKII a perfect fit for small to medium size businesses, offering users straightforward set-up, innovative functionality and a host of advanced features. Like a cutting-edge paper feed mechanism equipped with Ultrasonic Double-Feed Detection and an Active Double-Feed Prevention Roller System that ensures reliable document feeding at an impressive scan speed of up to 30 pages per minute at 300dpi.

The bundled Panasonic Image Capture Plus software suite helps users streamline document management. This advanced capture software allows you to easily scan and preview your scanned images before exporting them as a PDF, Text Searchable PDF, TIFF, JPEG or various Microsoft document formats, like DOCX, XLXS and PPTX. Image Capture Plus also provides progressive features such as blank page removal, Multi-Zone OCR (up to 3 fields), automatic cropping and more!

30 ppm / 60 ipm High-speed Scanning
Routine scanning is fast and easy! Scan through piles of mixed documents quickly, effortlessly converting them into highly-accurate searchable PDFs and other file types.

Single-touch Scan Keys
3 customizable preset keys simplify scan tasks. With the touch of a button, instantly start scanning documents and send them automatically to a destination of your choice

Touch-free Scanning
With the cover closed, you can insert a single document into the feeder and the unit will automatically start scanning to a preset job.

3-year Warranty
A standard 3-year warranty with overnight replacement and US-based tech support backs the reliability of our business-grade scanners.

Panasonic KV-S1026C-MK-II Duplex Personal Workgroup Document Scanner SKU#1348362 Features

  • 30ppm / 60ipm High-Speed Scanning (at 200/300 dpi)
  • Hardware Image Processing
  • 50 Page Automatic Document Feeder
  • Plastic Card & Business Card Scanning
  • Passport Scanning
  • 3 Customizable Single-Touch Scan Keys
  • Ultrasonic Double-Feed Detection
  • Double-Feed Skip Key
  • High Speed USB 3.1 (GEN 1) Interface
  • Auto Preview / Auto Rescan

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Panasonic KV-S1026C-MK-II Duplex Personal Workgroup Document Scanner
  • DVD-ROM (Drivers and Utilities/User Manuals Driver Software)
  • AC Adapter
  • AC Power Cord
  • USB Cable
  • Item Note: Scanner is Not Functional; Scanned Documents Jam During Scanning; Internal Hinge is Broken on Scanner Panel; Missing Shading Paper; Missing Guidance Sticker; Missing Correction Sticker. May Have Additional Issues. Cosmetic Condition is G. SOLD AS-IS; FOR PARTS ONLY; FINAL SALE
