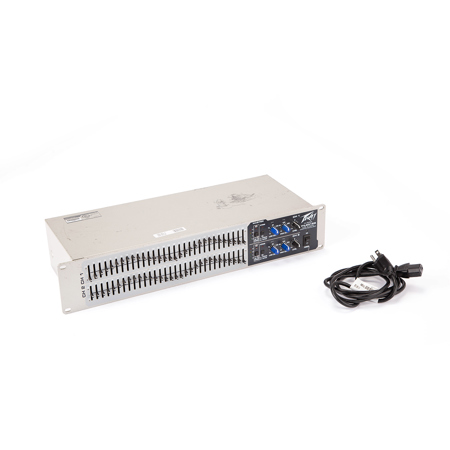

Peavey PV231EQ Dual Channel 31 Band Graphic Equalizer - SKU#1921163

Picture does not represent the actual item
See what's in the box

See all Peavey items

Used Peavey PV231EQ Dual Channel 31 Band Graphic Equalizer, 120V AC Power Peavey P

SKU: US1921163
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Peavey PV231EQ Dual Channel 31 Band Graphic Equalizer - SKU#1921163 Specifications

  • Channels

    2 (stereo)

  • Bands

    31 per channel

  • Connectors

    XLR balanced inputs and outputs

  • Frequency Centers

    20 Hz, 25 Hz, 31.5 Hz, 40 Hz, 50 Hz, 63 Hz, 80 Hz, 100 Hz, 125 Hz, 160 Hz, 200 Hz, 250 Hz, 315 Hz, 400 Hz, 500 Hz, 630 Hz, 800 Hz, 1 kHz, 1.25 kHz, 1.5 kHz, 2 kHz, 2.5 kHz, 3.15 kHz, 4 kHz, 5 kHz, 6.3 kHz, 8 kHz, 10 kHz, 12.5 kHz, 16 kHz, 20 kHz

  • Bandwidth

    1/3 octave

  • Control Range

    Selectable +/-12 dB or +/-6 dB

  • Input Impedance

    50kOhms

  • Output Impedance

    600 ohms

  • Maximum Output Level

    +21 dB

  • Level Control

    +/- 10 dB

  • Signal to Noise

    >93 dB unweighted

  • Distortion

    0.005%

  • Roll-Off Filters

    18 dB/octave, butterworth

  • Low-Cut

    Variable state (10 Hz to 250 Hz)

  • High-Cut

    Variable state (3 kHz to 40 kHz)

  • Power Consumption

    15W

  • Dimensions

    2U 19" / 482.60mm rack housing

  • Weight

    7lbs / 3.18kg

About Peavey PV231EQ Dual Channel 31 Band Graphic Equalizer - SKU#1921163

1EQ dual 31-band 2/3 octave graphic EQ brings quality features and low pricing together. Select between 6 dB or 12 dB cut or boost over frequencies ranging from 20 Hz to 20 kHz. Low cut filter switch with status LED helps remove rumble from open mics while the bypass switch with LED indicator is convenient for sound checks. Peavey P

Peavey PV231EQ Dual Channel 31 Band Graphic Equalizer - SKU#1921163 Features

  • Switchable 12-band or 6 dB boost/cut range
  • Variable 24 dB low cut filter
  • Variable 24 dB high cut filter
  • XLR balanced I/O
  • Output level LEDs
  • Bypass switch with status LED
  • Center-detent control sliders
  • 2 RU dual 31-band

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • V231EQ Dual Channel 31 Band Graphic Equalizer
  • Item Note: MissingAC Power Cable
