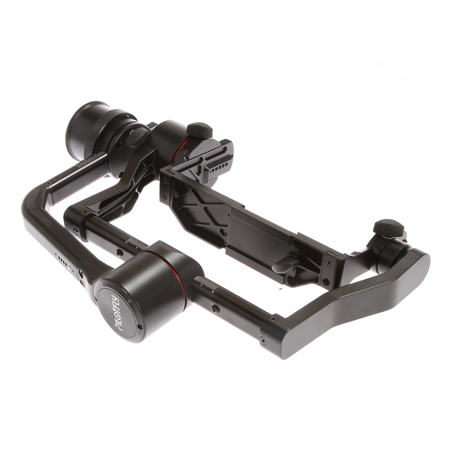

Used Pilotfly T1 3-Axis Gimbal with 2-Hand Handle for Mirrorless and DSLR Cameras

SKU: US1247082

This item is no longer available.

Recommended Items

Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Pilotfly T1 Specifications

  • Compatibility

    Mirrorless and DSLR Cameras

  • IMU

    2x IMU sensors

  • Payload

    Maximum motor payload 2.2kg (4.85lbs)

  • Battery

    Integrated Li-Po battery 14.8 V, 1800 mAh Rechargeable Batteries

  • Battery Life

    Usage time up to 26 hours

  • Tilt Axis

    220deg. top to 100deg. down rotation

  • Roll Axis

    100deg. left to 240deg. right rotation

  • Pan Axis

    360deg. rotation

  • Control Precision

    0.01deg. minimum to 0.04deg. maximum

  • Dimensions

    37 x 19 x 19cm (14.57 x 7.48 x 7.48")

  • Weight

    1200g (42.33oz) (including Battery)approx.

Related Articles & Videos

Overview: Samsung Portable SSD T1

Overview: Samsung Portable SSD T1

Size can definitely be deceiving, as is the case with the Samsung Portable SSD T1. Despite it b...

Read more

About Pilotfly T1 3-Axis Gimbal with 2-Hand Handle for Mirrorless and DSLR - #1247082

The T1 is the next generation of a two-hand-gimbal with newest integrated technology. The 32-bit Alexmos chip with Triple-MCUs and 2 integrated IMU sensors opens all possibilities for your video shooting with your mirrorless or DSLR cameras. The elegant tool-less design, the lightweight gimbal structure with remote control gives you all the flexibility and versatility you need. You easily can detach the handle and exchange it with the compatible one-hand handle from the Pilotfly-H2. You can hold it with one hand or two hands, you can attach the gimbal construction to a drone. Depends whatever your passion is to make your video, the Pilotfly-T1 will transform to your needs.

The new powerful brushless motors were designed with integrated MCUs and Pilotfly reduced the size of about 30%, same like for the H2. This makes the Pilotfly-T1 one of the most elegant and lightweight 2-hand gimbals on the market. They also integrated a limitless YAW motor, which gives you the possibility of 360deg. movements or time-lapse recording. The lightweight handle construction consists of carbon fiber material with 4 integrated and removable 18650 Lithium-Ion batteries which provides you an operation time up to 20 hours.

The Pilotfly-T1 introduces a whole new way of video shooting experience, it starts a new generation of transformable gimbals. The Pilotfly-T1 is the most advanced two-hand-gimbal they have ever designed. And imagine, this is just the beginning.

Pilotfly T1 3-Axis Gimbal with 2-Hand Handle for Mirrorless and DSLR - #1247082 Features

  • 32-bit Alexmos with Triple-MCU technology
  • High pay-load motors with integrated encoders
  • Tool-less design
  • Quick release plate
  • 360deg. Yaw (no limitation)
  • 4-Way Joystick
  • Detachable handle
  • 5 pre-configured profiles (Follow Mode, Pitch Lock, Full Lock, Follow Roll and Home move)
  • Auto-Invert-Mode (all profiles can be also used in this condition)
  • Status LED for power and battery level
  • Integrated Bluetooth module for remote control via Android App or Pilotfly Remote Control RM-01
  • Integrated Triple-MCUs with 2 IMU sensors
  • Supported temperature accelerometer calibration
  • 5 User-configurable modes of system operation with a toggle button
  • Pitch and Roll angle can be controlled by 4-way-joystick
  • Adaptive PID-algorithm for preventing vibrations in big angles
  • "ACC low-pass filter" that helps to improve the stability
  • Low voltage protection for integrated battery
  • System beep sound alert for low voltage / Mode change / Calibration
  • Wireless remote control via Bluetooth
  • Firmware upgradeable to be always up-to-date
  • System configuration via different platforms possible (Windows, Mac OS, Linux)

What's in the box:

  • Gimbal Balance Tuning Stand
  • Battery Set (2x 18650 and 1x 18350)
  • Battery Charger
  • Mini-Stand
  • Carry Case
  • Item Note: Missing 2x 18650 Battery
