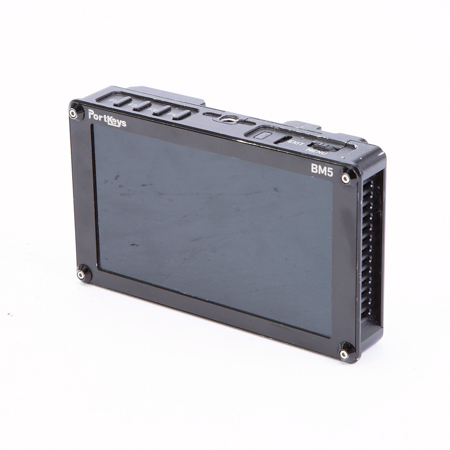

Portkeys BM5 5" 2000nit 1920x1080 3G-SDI/HDMI Touchscreen Monitor for Z CAM E2
Portkeys BM5: Picture 1 thumbnail
Portkeys BM5: Picture 2 thumbnail
Portkeys BM5: Picture 3 thumbnail
Portkeys BM5: Picture 4 thumbnail
Portkeys BM5: Picture 5 thumbnail
Portkeys BM5: Picture 6 thumbnail
Portkeys BM5: Picture 7 thumbnail
Portkeys BM5: Picture 8 thumbnail

Picture does not represent the actual item

See all Portkeys items
ClearanceUsed Condition: Flawed

Used Portkeys BM5 5" 2000nit 1920x1080 3G-SDI/HDMI Touchscreen Monitor for Z CAM E2

SKU: US1963439 MFR: BM5
(1)
$116.00
Earn VIP Reward Points
See all Used options (1) from $116

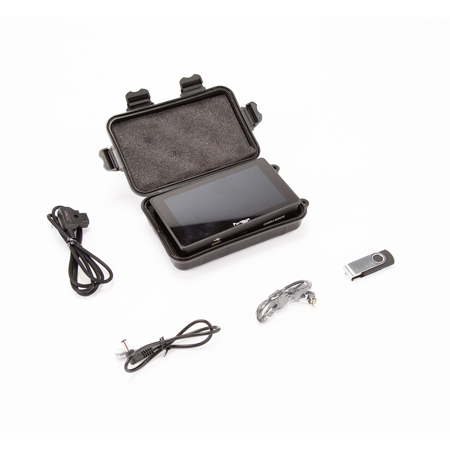

What`s in the box:

  • BM5 Monitor
See more
Free Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-07-06T11:31:38

Rated 5 out of 5

Gets the job done and then some

Great monitor with great features

WALTER G.

Portkeys BM5 Specifications

Basic Parameters

Basic Parameters

Jump to...

  • Screen Size

    5.2"

  • Viewing Angle (H x V)

    178 x 178 Degree

  • Brightness

    2200 nit

  • Resolution

    1920 x 1080

  • Color Depth

    8bit

  • Backlight

    WLED

  • Material

    Aluminum alloy + Toughened glass

  • Input Voltage

    DC 7-24V

  • Power Consumption

    16W

  • Signal Input

    3G/HD/SD-SDI, HDMI, USB

  • Signal Output

    3G/HD/SD-SDI

  • Supported Camera Model

    ZCAM: E2
    SONY: A9, A7R3, A7M3, A7R2, A7S2, A6000, A6300, A6400, A6500, RX100
    CANON: 1D X MARK II, 5DS, 5DS R, 5D MARK IV, 5D MARK III, 5D MARK II, 6D MARK II, 6D, 80D, EOS R
    PANASONIC: GH4, GH5, GH5S
    TILTA: NUCLEUS-N, NUCLEUS-M
    BLACK MAGIC: BMPCC, URSA MINI, BMCC 4K

Software

Jump to...

  • Software Function

    3D LUT, Waveform, Histogram, Guides, Zebra, Check Field, Grids, Audio Meters, Tint, Touch Screen, Color Temperature, Peaking, Zooming, Cross Hai, Waveform SDI Output, Camera Control, SDI TALLY, HLG, Display Flip, Osd Flip, False Color, H/V Delay, Aspect, Custom RGB, Sharpness, Chroma, Brightness

  • Software Function (Contd.)

    Contrast, UnderScan, 3D LUT SDI Output, Power to Camera by Dummy Battery, Battery Voltage Checking, Progressive to Interlaced S scan, Image Stretched Horizontal/Ertical

HDMI Support

Jump to...

  • HDMI

    1920x1080p @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94 Hz, 60Hz
    1920 1080psf @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
    1920x1080i @ 50Hz, 59.94Hz, 60Hz
    1280x720p @ 50Hz, 59.94Hz, 60Hz
    720x576p & 720x576i @ 50Hz
    720x480p & 720x480i @ 50Hz, 59.94Hz, 60Hz

SDI Support

Jump to...

  • SDI

    1920x1080p @ 50fps, 59.94fps, 60fps
    1920x1080p @ 50Hz, 59.94Hz, 60Hz YUV422
    1920x1080p @ 23.98Hz, 24Hz, 25Hz, 29.94Hz, 30Hz, YUV444/YUV422/RGB444
    1920x1080psf @ 23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, YUV444/YUV422/RGB444
    1920x1080i @ 50Hz, 59.94Hz, 60Hz YUV444/YUV422/RGB444
    1280x720p @ 50Hz, 59.94Hz, 60Hz YUV444/YUV422/RGB444

Physical

Jump to...

  • Dimensions

    5.4 x 3.3 x 1.24" (137 x 83 x 31.5mm)

  • Weight

    12.34 oz (350g)

About Portkeys BM5 5" 2000nit 1920x1080 3G-SDI/HDMI Touchscreen Monitor for Z CAM E2

FEATURED REVIEWS

Gets the job done and then some

By WALTER G.

Great monitor with great features

3G-SDI signal, 2200nit high bright panel, built-in camera control mode, can load multiple 3D LUT, meet the basic requirements of 1000nit above HDR. In-cell multiple touch screen, multiple touch gesture, 5.2" 1920X1080 FHD resolution screen, high contrast ratio 1000:1

Full Featured High Precise Waveform
Equipped with five kinds of high precise oscilloscope function, including vector scope, RGB waveform, brightness waveform, RGB histogram and brightness histogram, and it supports freely switch during a variety of display modes, real-time present you with the most detailed and accurate image information. (Support to output waveform SDI signal)

3D LUT
The LUT file format supported is 1 6/17/32/33/64/65 precision Cube file with 100 sets of LUT file stored. (Support to output 3D LUT SDI signal)

Power to Camera by Dummy Battery
The Aviation power port on the back can be the input terminal for the machine, but also can power to the camera by dummy battery

Control Tilta NUCLEUS- Focus Follow
The Focus Puller interface on the back can control TILTA NUCLEUS-N&M Focus Follow, But also power to TILTA NUCLEUS-N

Built-in Camera Control Module
This Built-in Camera Control module supports to control ZCAM, Canon, Sony, Panasonic, BMPCC cameras.
