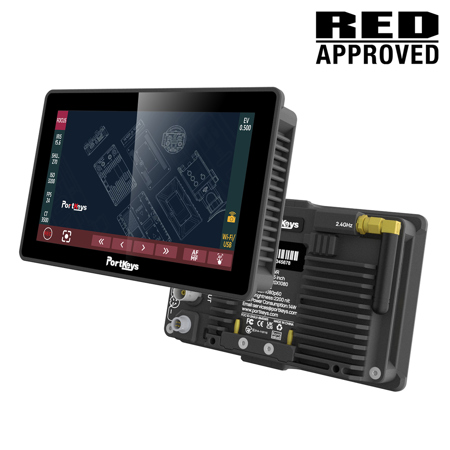

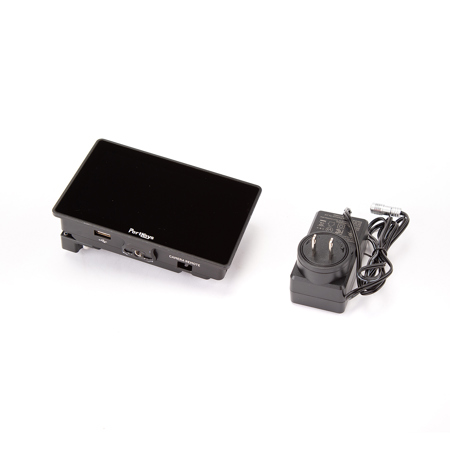

Used Portkeys BM5 III 5.5" Full HD Touchscreen Monitor with Wired Camera Control, Supports 3G SDI and HDMI

SKU: US1852886 MFR: BM5 III
Earn VIP Reward Points

Key Features

  • Wired control support for Z CAM, Canon, Sony, Panasonic, and BMD, providing flexibility in filming
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$34.99

2 Year

$59.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Portkeys BM5 III Specifications

  • Compatibility

    Z CAM, Canon, Sony, Panasonic and BMD Cameras

  • Size

    5.5" (14cm)

  • Material

    Aluminum Alloy + Toughened Glass

  • Viewing Angle

    178 Degree H/178 Degree V

  • Brightness

    2200nit

  • Resolution

    1920x1080

  • Contrast Ratio

    1000:1

  • Color

    8 bit

  • Backlight

    WLED

  • Input Voltage

    DC 7-24V

  • Max Power

    16W

  • Signal Input

    3G SDI, HDMI

  • Signal Output

    3G SDI

  • Headphone

    Output

  • Menu Language

    English

  • Power Input / Output

    4pin Aviation Connector

  • Signal Conversion

    HDMI In to SDI Out

  • Camera Control Interface

    Focus Puller / Camera Remote

  • Support Battery Model

    SONY NP-F970/F960/F750/F550

  • Upgrade Firmware / Load LUT

    USB-A

  • Fan

    Yes

  • Software Function

    3D LUT
    Camera Control
    Waveform
    Image Capture
    New Peaking
    Image Overlay
    Histogram
    BMD SDI TALLY
    Guides
    HLG
    Zebra
    Cross Hair
    Check Field
    Osd Flip
    False Color
    Grids
    Audio Meters
    H/V Delay
    Tint
    Aspect

  • Software Function (Contd.)

    Backlight
    Custom RGB
    Fan Adjustable
    Rectangle Crop
    Sharpness
    Chroma
    Anamorphic
    Brightness
    1080p to 1080i
    Contrast
    HDMI to SDI Output
    UnderScan
    3D LUT SDI Output
    Battery (Level) Display
    Power to Camera by Dummy Battery
    Image Flip Automatically/Manually

  • HDMI Signal

    1920x1080p@23.97Hz,24Hz,25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz
    1920x1080psf@23.97Hz,24Hz,25Hz,29.97Hz,30Hz
    1920x1080i@50Hz,59.94Hz,60Hz
    1280x720p@50Hz,59.94Hz,60Hz
    720x576i@50Hz
    720x576p@50Hz
    720x480p@50Hz,59.94Hz, 60Hz
    720X480i@50Hz,59.94Hz,60Hz

  • SDI Signal

    1920x1080p@50fps,59.94fps,60fps
    1920x1080p@50Hz,59.94 Hz, 60Hz YUV422
    1920x1080p@23.98Hz,24Hz,25Hz,29.94 Hz,30Hz YUV444/YUV422/RGB444
    1920x1080psf@23.98Hz,24Hz,25Hz, 29.97Hz,30Hz YUV444/YUV422/RGB444
    1920x1080i@50Hz,59.94Hz, 60Hz YUV444/YUV422/ RGB444
    1280x720p @50Hz,59.94Hz, 60Hz YUV444/YUV422/ RGB444

  • Battery Info

    Optional, Not Included

  • Battery Material

    Lithium ion

  • Battery Type

    NP-F

  • Battery Quantity

    1

  • Dimension

    5.72 x 3.59 x 1.51" (145.4 x 91.4 x 38.5mm)

  • Weight

    12.38 oz (351g)

About Portkeys BM5 III 5.5" Full HD Touchscreen Monitor with Wired Camera Control, Supports 3G SDI and HDMI

Under the umbrella of advanced video equipment, the BM5 III 5.5" Full HD Touchscreen Monitor with Wired Camera Control stands out with its high-quality, user-friendly features. This innovative monitor boasts a high resolution of 1920 x 1080, ensuring a crystal-clear, detailed image display that surpasses many alternatives in the market.

This durable monitor is equipped with a new peaking function, designed to capture more focus and enhance your filming experience. It also includes a unique freeze frame feature, allowing you to capture an image and compare it with real-time video through semi-transparent image superposition.

The BM5 III 5.5" Full HD Touchscreen Monitor is not just a display device; it's a comprehensive tool for video analysis. It comes with five types of high-precision oscilloscope functions, including vector scope, RGB waveform, brightness waveform, RGB histogram, and brightness histogram. These features provide real-time, detailed, and accurate image information, allowing you to switch freely between various display modes.

Supporting both 3G HD-SDI and HDMI interfaces, this monitor offers compatibility with a wide range of cameras and video equipment. It's designed to wirelessly control the functions of Z CAM, Canon, Sony, Panasonic, and BMD, providing you with more flexibility in your filming process.

Additionally, the BM5 III 5.5" Full HD Touchscreen Monitor can control Tilta Nucleus-N/M motors and show lens cursor position, enhancing its usability. The connecting REC KEY serves as a record switch for cameras when connected to the BM5 III, and can also be used independently as a record switch for cameras with a Remote port.

In essence, the BM5 III 5.5" Full HD Touchscreen Monitor with Wired Camera Control is a versatile, high-performance tool designed to improve your video recording and viewing experience.

Portkeys BM5 III 5.5" Full HD Touchscreen Monitor with Wired Camera Control, Supports 3G SDI and HDMI Features

  • 2200nit Ultrabright Touchscreen
  • New peaking can capture more focus
  • Image Overlay
  • Image Capture
  • Control Tilta Motors and cursor display
  • Wired Camera Control
  • Color Calibration Before Shipment
  • Milled Aluminum Body
