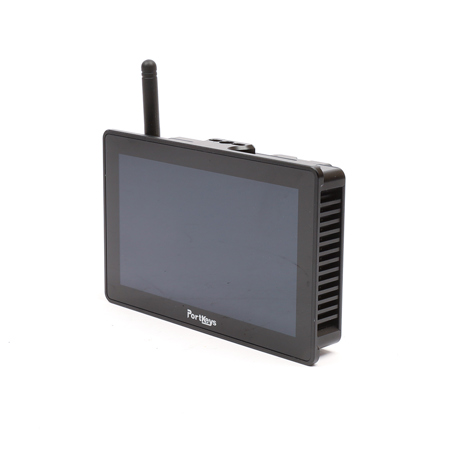

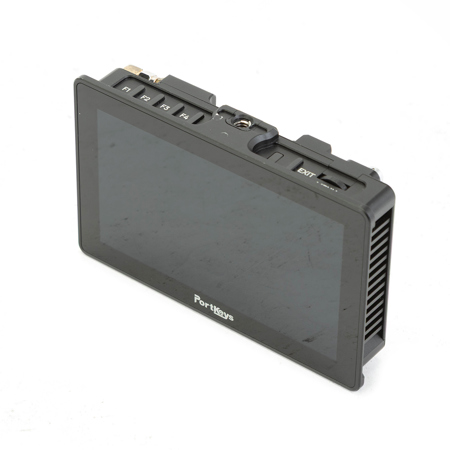

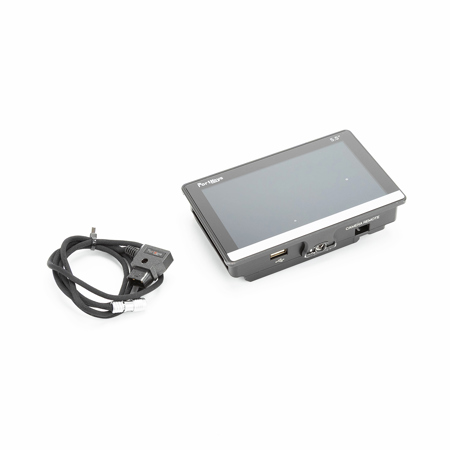

Used Portkeys BM5 III WR 5.5" Full HD Touchscreen Monitor with Camera Control for RED Komodo, Supports 4K HDMI/SDI

SKU: US1955569 MFR: BM5IIIWR
Earn VIP Reward Points

What`s in the box:

  • L-Type Antenna
See more

Key Features

  • 5.5" Full HD Touchscreen Monitor with 2200 Nits brightness for clear daylight viewing
  • Rugged aluminum alloy shell with tempered glass for enhanced durability and portability
  • 4K HDMI/SDI support with loop-out feature for real-time monitoring and 3DLUT overlay
  • Advanced color calibration for accurate color gamut & 10-bit color depth for nuanced image quality
  • New peaking algorithm and high-precision waveform for critical focus and exposure monitoring
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$44.99

2 Year

$67.99

3 Year

$111.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-03-24T18:18:36

Rated 3 out of 5

it works.

It works, but I'd wait a bit longer and get a smallHD if you can afford it. I'd also take the OSEE G7 over it as well.

Justin C.

2023-01-01T22:38:52

Rated 5 out of 5

So far so good

Awesome monitor Great Value

robert p.

2022-09-14T09:07:42

Rated 5 out of 5

Great value for an awesome monitor

Fantastic touchscreen monitor for the price. Fully compatible with the RED Komodo. Only drawback was finding a list for pre-approved batteries that will display power levels easily. Can't beat the value though at this price point.

STEVEN W.

Portkeys BM5 III WR Specifications

  • Compatibility

    RED Komodo

  • Material

    Aluminum alloy + Tempered glass

  • Screen Size

    5.5"

  • Viewing Angle

    Horizontal: 178 Degree
    Vertical: 178 Degree

  • Brightness

    2200nit

  • Resolution

    1920 x 1080

  • Contrast Ratio

    1000:1

  • Color Depth

    10bit(8+2 FRC)

  • Maximum Power

    13W

  • Input Voltage

    4pin Aviation Connector IN 7.4-24V

  • Output Voltage

    4pin Aviation Connector OUT 7.4V(NPF)

  • Video Signal Input

    SDI/HDMI

  • Video Signal Output

    SDI

  • Motor Control Port

    5pin Aviation Connector

  • Camera Control Port

    Mini USB 10pin

  • USB-A

    Upgrade Firmware/Load LUT

  • Antenna

    2.4G

  • HDMI Signal

    1920 x 1080p@23.97Hz,24Hz,25Hz
    29.97Hz,30Hz,50Hz,59.94Hz,60Hz
    1920 x 1080psf@23.97Hz,24Hz
    25Hz,29.97Hz,30Hz
    1920 x 1080i@50Hz,59.94Hz,60Hz
    1280 x 720p@50Hz,59.94Hz,60Hz
    720 x 576i@50Hz
    720 x 576p@50Hz
    720 x 480p@59.94Hz,60Hz
    720 x 480i@59.94Hz,60Hz
    1280 x 720p@50Hz,59.94Hz,60Hz
    YUV444/YUv422/RGB444

  • SDI Signal

    1920 x 1080p@50fps,59.94fps,60fps
    1920 x 1080p@50Hz,59.94Hz,60Hz
    1920 x 1080p@23.98Hz,24Hz,25Hz
    29.94Hz,30Hz YUV444/YUV422/RGB444
    1920 x 1080i@50Hz,59.94Hz,60Hz
    YUV444/YUV422/RGB444

  • Battery Info

    required, not included

  • Battery Material

    lithium ion

  • Battery Type

    non-universal

  • Battery Quantity

    1

  • Dimensions

    5.72 x 4.75 x 1.79" (145.4 x 120.9 x 45.5mm)

  • Weight

    13.26 oz (376g)

13 Accessories for Portkeys BM5 III WR 5.5" Full HD Touchscreen Monitor with Camera Control for RED Komodo, Supports 4K HDMI/SDI

  • All Accessories (13)
  • Batteries & Power Supply (7)
  • Brackets & Mounts (3)
  • Cables & Adapters (3)

About Portkeys BM5 III WR 5.5" Full HD Touchscreen Monitor with Camera Control for RED Komodo, Supports 4K HDMI/SDI

FEATURED REVIEWS

So far so good

By robert p.

Awesome monitor Great Value

Great value for an awesome monitor

By STEVEN W.

Fantastic touchscreen monitor for the price. Fully compatible with the RED Komodo. Only drawback was finding a list for pre-approved batteries that will display power levels easily. Can't beat the value though at this price point.

An innovative addition to the world of professional videography, the Portkeys BM5 III WR 5.5" Full HD Touchscreen Monitor is a versatile tool designed to enhance your filming experience. This high-performance monitor supports 4K HDMI/SDI and is specifically engineered with a built-in camera control module, offering seamless operation of your RED Komodo and BlackMagic pocket cameras.

The BM5 III WR monitor boasts a 2200 Nits ultra-clear 5.5-inch touch screen panel, crafted from durable aluminum alloy and tempered glass. With a resolution of 1920x1080, this monitor delivers vivid color details and crystal-clear images, ensuring you never miss a detail.

This advanced monitor offers a range of camera control features, including photo and video recording, AV, Tv, ISO, Auto Focus, Zoom, and Manual Focus. It also supports Wi-Fi control, providing a wireless connection to your RED Komodo camera for effortless operation.

The BM5 III WR monitor is not just about performance; it's also designed for durability. Its robust aluminum alloy shell is lightweight yet sturdy, weighing only 376g, making it an ideal companion for heavy-duty daily operations and on-the-go shooting.

With its 2200nits super brightness, this monitor ensures clear visibility even in broad daylight. It also features HDMI/SDI Loop Out, providing real-time monitoring with an image superimposed with 3DLUT and a new peak.

Every BM5 III WR monitor undergoes strict hardware color calibration before shipping, ensuring the widest color gamut and the most accurate colors. Its 10-bit color depth enhances color reproduction, delivering a more delicate image quality and richer levels.

The monitor also features a new peaking algorithm for accurate facial focus capture, high-precision full-screen waveform for precise frame-by-frame capture, and a semi-transparent superimposable frozen frame image for displacement correction.

In addition, the BM5 III WR can display the position of the iron head wireless follow focus scale, providing professional content creators with a reliable tool for various scenarios.

In summary, the Portkeys BM5 III WR 5.5" Full HD Touchscreen Monitor with Camera Control for RED Komodo is an all-in-one solution for professional videographers seeking superior performance, durability, and control in their filming equipment.

Portkeys BM5 III WR 5.5" Full HD Touchscreen Monitor with Camera Control for RED Komodo, Supports 4K HDMI/SDI Features

  • Robust design
  • 2200nits Super Bright, Sees Everything Clearly in Daylight
  • HDMI/SDI Loop Out
  • Color calibration
  • 10-bit (8+2 FRC)
  • High-precision Waveform
  • Semi-Transparent Superimposable Frozen Frame Image
  • Tilta Cursor Display

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • 5.5" Full HD Touchscreen Monitor with 2200 Nits brightness for clear daylight viewing
  • Rugged aluminum alloy shell with tempered glass for enhanced durability and portability
  • 4K HDMI/SDI support with loop-out feature for real-time monitoring and 3DLUT overlay
  • Advanced color calibration for accurate color gamut & 10-bit color depth for nuanced image quality
  • New peaking algorithm and high-precision waveform for critical focus and exposure monitoring
