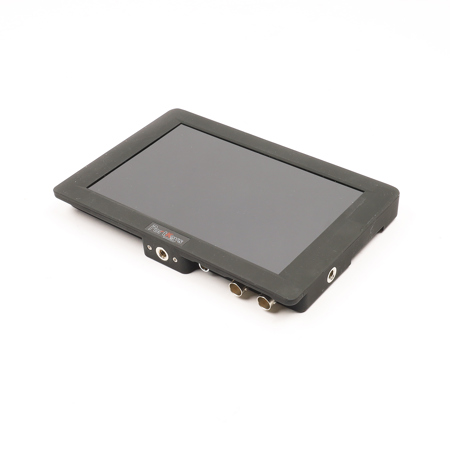

Portkeys HS7T 7" 1200nit Bright 4K 3G-SDI Signal Support HDMI On-Camera Monitor with 3D LUT, 1920 x 1200
See all Portkeys items
Used Condition: Well Used

Used Portkeys HS7T 7" 1200nit Bright 4K 3G-SDI Signal Support HDMI On-Camera Monitor with 3D LUT, 1920 x 1200

SKU: US2048402 MFR: HS7T
Be the first to review this item
$250.00
OR
$42/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See 1 Used options for $250

What`s in the box:

  • Portkeys HS7T Monitor
  • Screen Protector
  • USB Drive
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Free Shipping

See Options

1
Add to List

Save 5% Every Day† with the Adorama Edge Card. Learn More

edge card

Need help? Ask our experts.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Portkeys HS7T Specifications

Basic Parameters

Basic Parameters

Jump to...

  • Screen Size

    7" (178m)

  • Resolution

    1920 x 1200

  • Color Depth

    8bit

  • Contrast Ratio

    1200:1

  • Viewing Angle (H x V)

    178 x 178 Degree

  • Backlight

    LED

  • Luminance

    1200nit

  • Power Consumption

    13W

  • Material

    ABS Engineering Plastics

  • Input Voltage

    DC 7-24V

  • Signal Input

    3G/HD/SD-SDI, 4K HDMI, HDMI, USB

  • Signal Output

    3G/HD/SD-SDI, 4K HDMI, HDMI

  • Headphone Input/Output

    Headphone Output

Software

Jump to...

  • Software Function

    3D LUT, 4K Convert to 1080, Pixel To Pixel, Brightness, Contrast, Chroma, Sharpness, Tint, Color Temperature, Aspect, Backlight, Display Flip, Osd Flip, Check Field, H/V Delay, Guides, Cross Hair, Grids, Peaking, False Color, Zebra, UnderScan, DSLR Scaling, Histogram, Zooming, Audio Meters, Custom RGB, Low Voltage Alarm

HDMI Support

Jump to...

  • HDMI

    4096x2160p @ 24Hz
    3840x2160p @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
    1920x1080p @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz
    1920x1080psf @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz
    1920x1080i @ 50Hz, 59.94Hz, 60Hz
    1280x720p @ 50Hz, 59.94Hz, 60Hz
    720x576p @ 50Hz
    720x576i @ 50Hz
    720x480p @ 50Hz, 59.94hz, 60Hz
    720x480i @ 50Hz, 59.94Hz, 60Hz

SDI Support

Jump to...

  • SDI

    1920x1080p @ 50fps, 59.94fps, 60fps
    1920x1080p @ 50Hz, 59.94Hz, 60Hz YUV422
    1920x1080p @ 23.97Hz, 24Hz, 25Hz, 29.94Hz, 30Hz YUV444/YUV422/RGB444
    1920x1080psf @ 23.97Hz, 24Hz, 25Hz, 29.94Hz, 30Hz YUV444/YUV422/RGB444
    1920x1080i @ 50Hz, 59.94Hz, 60Hz YUV444/YUV422/RGB444
    1280x720p @ 50Hz, 59.94Hz, 60Hz, YUV444/YUV422/RGB444
    720x480i @ 59.94Hz YUV422
    720x576i @ 50Hz YUV422

Physical

Jump to...

  • Dimensions

    7.5 x 4.5 x 0.8" (190 x 124 x 20mm)

  • Weight

    10.6 oz (300g)

About Portkeys HS7T 7" 1200nit Bright 4K 3G-SDI Signal Support HDMI On-Camera Monitor with 3D LUT, 1920 x 1200

This wireless video transmission with 1080P60 is transmitted without compression and delay, small size, light weight, low power consumption, built-in aerial.

Uncompressed Without Delay
This wireless video transmission system support 1080p
