Used Portkeys LH5P II 5.5" Full HD Touchscreen Monitor with Multi Camera Control Cable, Supports 4K HDMI

SKU: US2010609 MFR: LH5P II-CK1
Earn VIP Reward Points

What`s in the box:

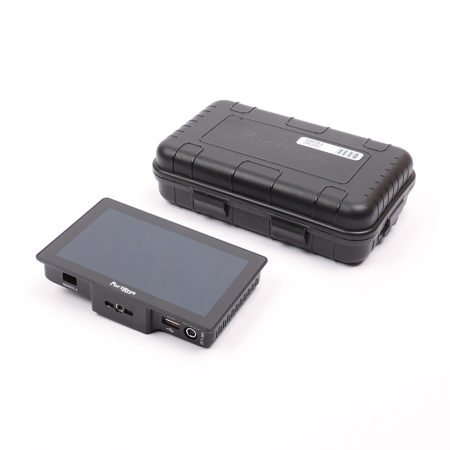

  • Portkeys LH5P II 5.5" Full HD Touchscreen Monitor
  • Straight to Elbow DC Power Cable
  • Short Head Antenna
See more

Key Features

  • Experience vibrant clarity with the 5.5" Full HD touchscreen video monitor.
  • Enjoy precise focus with peaking tools on this Portkeys on-camera monitor.
  • Control your camera directly from the monitor using included control cables.
  • Achieve perfect exposure using the waveform and false color video monitor tools.
  • The high brightness of 2200 nits makes this perfect for outdoor shooting.
  • This HDMI video monitor supports up to DCI 4K at 24fps for stunning detail.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Portkeys LH5P II Specifications

Display

Display

Jump to...
  • Panel Type

    LCD

  • Display Size

    5.5" (14cm)

  • Resolution

    1920 x 1080

  • Viewing Angle

    Horizontal: 178 Degree
    Vertical: 178 Degree

  • Aspect Ratio

    16:9

  • Touchscreen

    Yes

  • Maximum Brightness

    2200 nits / cd/sq. m

  • Contrast Ratio

    1000:1

  • Bit Depth / Color Support

    10-Bit (1.07 Billion Colors)

  • HDR Compatibility

    Yes

  • Pixels Per Inch (ppi)

    401 ppi

  • Color Gamut

    100% Rec. 2020
    85% DCI-P3

  • Image Controls

    Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Screen Markers, Waveform, Zebra

Inputs / Outputs

Jump to...
  • Video I/O

    1x HDMI Input
    1x HDMI Output

  • Embedded Audio

    HDMI

  • Audio I/O

    1x 1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    None

  • Power I/O

    1x Proprietary (24 VDC) Input/output

  • Other I/O

    1x Mini-USB
    1x USB-A Input

  • Media/Memory Card Slot

    None

  • Wi-Fi

    None

Format Support

Jump to...
  • Video Format

    HDMI (8-Bit 4:4:4/4:2:2)
    DCI 4K: 24
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 60/59.94/50
    480i: 60/59.94/50

  • DC Input Power

    7 to 24 VDC

  • Battery

    1x L-Series

  • Power Consumption

    13W (Maximum)

  • Mounting

    1x 1/4"-20 Female

Environmental

Jump to...
  • Certifications

    FCC Part 15 C

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

Battery

Jump to...
  • Battery Info

    Optional, Not Included

  • Battery Material

    Lithium ion

  • Battery Type

    L-Series

  • Battery Quantity

    1

General

Jump to...
  • Materials

    Aluminum, Glass

  • Dimensions

    5.7 x 3.5 x 1.22" (144 x 90 x 30.88mm)

  • Weight

    10.1 oz (285g)

About Portkeys LH5P II 5.5" Full HD Touchscreen Monitor with Multi Camera Control Cable, Supports 4K HDMI

Because of its advanced features and superior build quality, the Portkeys LH5P II 5.5" Full HD Touchscreen Monitor stands out in the realm of camera accessories. This high-quality monitor boasts a 2200nit 5.5" IPS touchscreen, offering a clear and vibrant display even under bright sunlight. It supports 4K HDMI 30p signal input and output, ensuring high-resolution image and video display.

Encased in a sleek, all-metal CNC aluminum alloy shell, this durable monitor is designed for both wired and wireless camera control. The innovative F key shortcut allows for easy start and stop of camera recording, enhancing user convenience.

The LH5P II monitor is equipped with a new peaking algorithm, designed to capture more focus and provide sharper images. It also offers a wide range of customization options, including IRIS, Shutter, Zoom, Frame Rate, and ISO controls, as well as image crop and full-screen display settings.

This user-friendly monitor supports anamorphic lens calibration and a variety of ratios, from 1.00X to 2.35X, with a user-defined adjustment range of 0.25X-4.00X. It also features brightness and RGB signal detection before and after loading 3D LUT custom JPG picture.

The unique freeze frame feature allows for image comparison with real-time video through semi-transparent image superposition, providing a valuable tool for photographers and videographers. Note that the image must be a 16:9 1920x1080 jpg image.

In summary, the Portkeys LH5P II 5.5" Full HD Touchscreen Monitor with Multi Camera Control Cable is a versatile, high-performance tool that enhances any camera setup.

Portkeys LH5P II 5.5" Full HD Touchscreen Monitor with Multi Camera Control Cable, Supports 4K HDMI Features

  • F key can be set to camera REC key
  • 2200nit 5.5inch touchscreen monitor. Factory calibration for Rec. 709, DCI-P3 85%
  • CNC aluminum alloy all-metal shell
  • Wired control Tilta Nucleus-N/M motors
  • New peaking, anamorphic lens calibration, customized peaking range( Peaking frame), Brightness and RGB signal detection before/after loading 3D LUT
  • Real-time Eye focus while recording

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Experience vibrant clarity with the 5.5" Full HD touchscreen video monitor.
  • Enjoy precise focus with peaking tools on this Portkeys on-camera monitor.
  • Control your camera directly from the monitor using included control cables.
  • Achieve perfect exposure using the waveform and false color video monitor tools.
  • The high brightness of 2200 nits makes this perfect for outdoor shooting.
  • This HDMI video monitor supports up to DCI 4K at 24fps for stunning detail.
