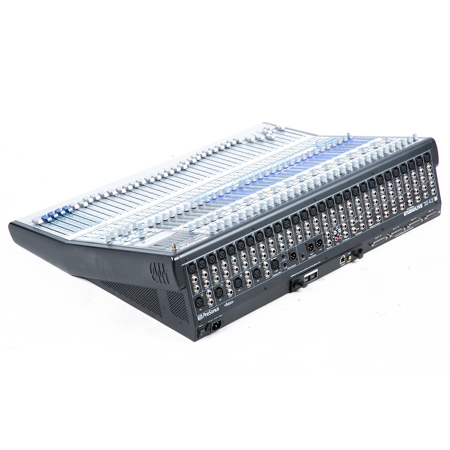

Used PreSonus StudioLive 32.4.2AI Digital 32-Channel Mixer.
SKU: US1787454
This item is no longer available.
Recommended Items
Share:
Overview
Compare
Specs
Protection
About PreSonus StudioLive 32.4.2AI Digital 32-Channel Mixer - SKU#1787454
The StudioLive 32.4.2AI Digital 32-Channel Mixer with Active Integration DSP from PreSonus features 32 XLR mic inputs, 32 TRS line inputs, 32 XMAX microphones preamplifiers, 32 send/return inserts and a grand total of 37 long-throw 100mm faders. The mixer also features 14 Aux outputs, 4 submixes, 4 internal effects busses with detailed reverbs and delays, 6 mute groups and 8 mix scenes.
PreSonus's latest technology, Active Integration, runs on an advanced built-in computer system, helping each stage of your signal chain work together. Each channel's signal chain begins with a gain knob, an on/off Phantom power button and an optional recording buss send. From there, you can route the channel to each of the 14 aux busses pre- or post fader. Then your signal enters the virtual "Fat" channel strip, where you can perfect it with a polarity switch, high-pass filter, gate (frequency-controlled option), compressor, limiter and 4-band parametric equalizer-not to mention that at the press of a button, you can A/B your channel settings with the flat signal or another group of settings. You can then pan, assign to subgroups and manipulate the fader. This functionality can be applied to all 32 channels.
The previous paragraph mentioned a recording buss send. In addition to all its live sound features, the StudioLive 32.4.2 sports an integrated 48 input / 34 output FireWire 800 audio interface, which supports resolution up to 24-bit/48 kHz. It also includes a large software bundle, featuring PreSonus Capture 2.0 computer software for live recording. Capture 2.0 has powerful tools, including record-lock, user-definable auto-save, a 1-minute pre-record buffer and file recovery.
The StudioLive mixer has a separate digital 31-band graphic EQ available on each of the 14 Aux busses and one for the main outputs, allowing you to custom-tailor each monitor mix to the needs of the player, as well as perfect the mains to suit the room.
The StudioLive 32.4.2 has a few additional connectivity features. An extra XMAX preamplifier provides a talkback mic input, which can be routed to any buss. There are analog RCA tape inputs and outputs, control room outputs, a S/PDIF output and both XLR and TRS main outputs. Additionally, the StudioLive has 4 DB25 outputs, providing individual pre-insert balanced direct outputs for all 32 inputs.
PreSonus StudioLive 32.4.2AI Digital 32-Channel Mixer - SKU#1787454 Features
- 33 mic high-headroom Class A XMAX mic preamplifiers (32 channels plus Talkback)
- 32 balanced TRS line inputs
- 4 subgroups
- Stereo/mono main out
- 14 auxiliary mixes
- 48-in/34-out FireWire S800 digital recording interface (24-bit/44.1 kHz and 48 kHz)
- Studio One Artist Digital Audio Workstation software for Mac and Windows
- Capture 2.0 recording software for Mac and Windows
- StudioLive Remote-AI mixer-control software for iPad available free from Apple App Store
- QMix-AI aux-control software for iPhone and iPod touch available free from Apple App Store
- Direct recording interface compatible with Logic, Nuendo, Cubase, Sonar, Digital Performer, Ableton Live and more
- 60 channel strips
- Trim control with -20 to +20 dBV line/-15 to +65 dBu mic gain range (80dB!)
- +48V phantom power switch for condenser microphones
- Digital Audio Input Select
- 100 mm precision faders
- Lighted Solo and Mute buttons
- 6 mute groups with All On/All Off switches
- Access to Fat Channel functions
- 15-LED ladder metering + clip LED
- Analog 1/4" insert (rear panel)
- High-pass filter: -6 dB/oct., sweepable from Off to 1 kHz (main channels and aux's only)
- Gate: Threshold: 0 to -84 dB; Attack: 0.02 to 500 ms; Release: 0.05 to 2 sec; Bandpass Key Filter: 40 Hz to 16 kHz; second-order resonant bandpass filter Q (0.7) with Key Listen function
- 32 pre-insert, balanced direct outputs, Ch. 1-8, 9-16, 17-24, 25-32 (DB25 sockets)
