Used Proaim 18' Camera Crane Jib Arm for Pan-Tilt Head & Gimbals

SKU: US1641342

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Proaim 18' Camera Crane Jib Arm Specifications

  • Material

    CNC made Aluminum Powder Coated

  • Load Capacity

    Maximum: 17.6 lbs (8kg)

  • Self-Balance

    55.1 lbs (25kg)

  • Camera weight

    2.2 - 8.8 lbs (1 - 4kg)

  • Counterweight

    55.11 lbs (+25kg)

  • Jib Arm Shape

    Rectangle

  • Jib Arm Break downs into

    5 Parts

  • Length of Jib sections

    3.5' (1m) (each)

  • Jib Section Jointers

    Silver Aluminum

  • Bearing at Centre Fork

    Pan Thrust bearing with washer made of stainless steel

  • Camera Tilt Angles

    Up to 270 degree

  • Locking Pin

    Stainless steel locking pin for stable or tilt camera angles

  • Jib Pan Lock

    No

  • Jib Tilt Lock

    No

  • Height Range from ground level

    19' (5.8m) when stand height adjusted at 5' (1.5m)

  • Length from tripod to Camera Mount

    13.5' (4.1m)

  • Total jib arm length

    17' (5.2m)

  • Camera Mount plate

    Square

  • Weight Holder Rod

    Material: MS Nickel chrome
    Length: 13.9" (355mm)
    Dia: 1" (25mm)

  • Weight Closures

    2x Made of MS Nickel chrome

  • Horizontal Movement

    Yes

  • Vertical Movement

    Yes

  • Horizontal/Vertical movement Lock

    No

  • LCD Mount Provision

    Yes

  • Weight

    33 lbs (15kg) (Film Jib Crane)

About Proaim 18' Camera Crane Jib Arm for Pan-Tilt Head & Gimbals

Explore the world of dynamic and detailed filmmaking with the Proaim 18' Camera Jib Arm, a standard-bearer in the industry for lightweight camera crane systems. Designed for versatility, this jib arm is perfect for every shooting scenario, from compact indoor spaces to expansive outdoor environments.

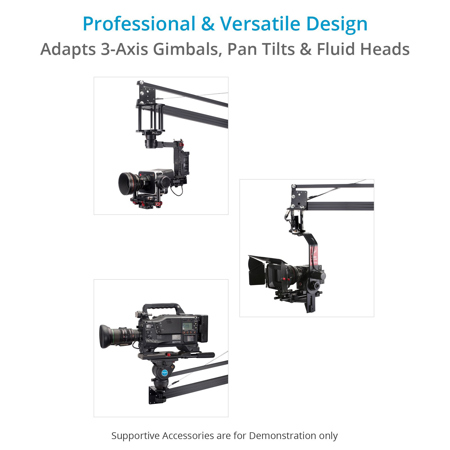

Crafted from high-grade Aluminum, the Proaim 18' Camera Crane Jib Arm is not only robust but also functional, boasting a payload capacity of up to 8kg/17.6lb. This sturdy and reliable crane is compatible with Pan Tilt, 3-Axis Gimbals, or Flat base fluid heads, making it a versatile tool for your filming needs.

The 18' Crane features fully ribbed sections, providing strength for higher angles and an adjustable metal wire system for superior stability. Its dual arm design enhances strength and stability, ensuring your camera stays steady even in challenging conditions.

The Proaim Jib Arm comes with an ergonomic camera platform, a stainless steel locking pin, and a convenient LCD monitor mounting arm. It also includes high-tensile weight closers to keep the weight discs intact for perfect balance, ensuring smooth, jerk-free jib movements.

Whether you're mounting your camera directly, or using pan tilt or gimbals, setup is a breeze, taking only minutes. The camera mount tilt control offers both auto tilt mode and manual tilt mode with a control handle, giving you complete control over your shots.

The Proaim 18' Camera Crane Jib Arm comes in high-impact protective packaging, making it your perfect travel companion as you traverse through extreme environments in pursuit of the perfect shot. Unleash your creative vision with this invaluable tool, a small investment that opens up a world of cinematic possibilities.

Proaim 18' Camera Crane Jib Arm for Pan-Tilt Head & Gimbals Features

  • User-Friendly & Affordable Jib
  • High Build Quality with Payload up to 17.6 lbs (8kg)
  • Versatile Jib Crane for Indoor/Outdoor Use
  • Professional. Simple. Powerful

What's in the box:

  • 18' Camera Crane Jib Arm
  • Storage Bag
  • 5x Sections
  • Cental Post
  • Weight Rod
  • Weight Closer
  • Tool Pouch
  • 3x Wrenches
  • Hex Tool
  • Wire Tensioner
  • Mounting Hardware
  • Original Box
  • Item Note: Missing Accessory; Knob; LCD Mounting Arm; Original Box is damaged
