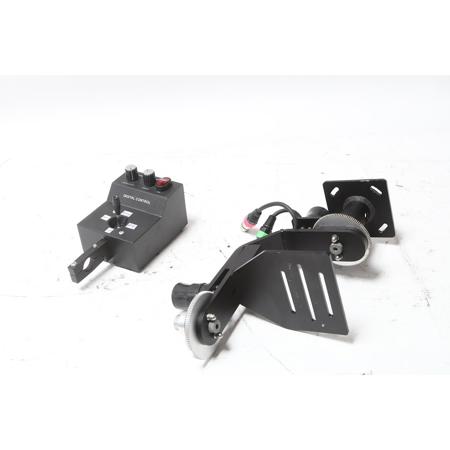

Used Proaim Jr Pan-Tilt Head with 12V Joystick Control, 13.2 Lbs Capacity

SKU: US1506480

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Proaim Jr Pan-Tilt Head Specifications

  • Pan Tilt Head Material

    High Grade Aluminum

  • Maximum Camera Package Load Capacity

    6kg (13.2 lbs)

  • Pan, Tilt

    360 degrees

  • Speed

    Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed)
    Slowest Speed: 2 minutes
    Highest Speed: 7 seconds

  • Motors

    Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees

  • Gears

    2 Big Aluminum Gears (Dia- 88mm)
    2 Small Brass Gears (Dia- 13.5mm)

  • Minimum Height of Head

    18.5" (46.99cm)

  • Maximum Height of Head

    22" (55.88cm)

  • AC Adapter Input

    AC 100 - 240V; Output: DC 12V -2A

  • Cable Length

    15m (49.21')

  • Cable Connector

    4-Pin XLR

  • Battery Cable

    3m (9.84') long

  • Joystick Controller

    2-Axis

  • Controller Connectors

    2x 4-Pin XLR male connectors

  • Pan/Tilt Direction

    Yes

  • Upgraded With

    Damping knob

  • Weight

    Head: 5.9 lbs (2.68kg)
    Joystick Controller: 800g (28.22 oz)

About Proaim Jr Pan-Tilt Head with 12V Joystick Control - SKU#1506480

From capturing dynamic shots to setting the scene's tone, the Jr Pan-Tilt Head with 12V Joystick Control, boasting a 13.2 lbs capacity, is your go-to tool for unrestricted camera movement. This advanced 2-Axis junior pan tilt head is meticulously designed to offer 360-degree pan and tilt movements, expanding your creative possibilities and enabling a wide array of shots.

Constructed from high-grade aluminum, this pan-tilt head is not only durable but also ensures longevity, making it a reliable addition to your filming equipment. It's powered by two coreless high torque motors, providing a substantial payload capacity of 6kg/13.2 lbs, which outperforms many of its competitors. These high-quality motors also ensure silent operation, allowing you to capture the scene without any noise interference.

One of the standout features of this pan-tilt head is its built-in slip ring. This innovative design prevents the wires from tangling, enabling 360-degree unrestricted pan and tilt movements, thus offering you complete freedom in your shot selection.

The Jr Pan-Tilt Head is also equipped with high-strength brass gears, engineered to withstand long hours of operation while minimizing wear and tear. This ensures consistent performance and extends the lifespan of the equipment.

The included 12V joystick controller offers a range of functions to enhance your filming experience. The speed controller allows you to adjust the speed of pan and tilt movements based on your shot requirements. The damping control feature prevents the head from stopping abruptly, ensuring smooth endings to your shots. Plus, you can reverse the panning and tilting direction as needed, offering you complete control over your filming process.

In summary, the Jr Pan-Tilt Head with 12V Joystick Control is a versatile, durable, and high-performing tool designed to elevate your filming experience and broaden your creative horizons.

What's in the box:

  • Jr Pan-Tilt Head
  • Mounting Thumbscrew
  • Control Cable (49')
  • 3-Pin XLR Car Charger Cable
  • 12V Joystick Remote
  • Custom-Fit Carry Case
  • Item Note: Joystick Remote Powers On but Pan and Tilt Motor is Not Functional; "May Have Additional Issues." "Comestic Condition is E-." Missing AC Adapter; US Power Cord; Worldwide Power Converter; 4-Pin XLR Cord; Accessory Kit
